Antec P30 Air Mid-Tower ATX Gaming Case, High-Airflow Mesh Front, Support for 360 mm Radiator, Tempered Glass Side Panel, USB-C & Five Pre-Installed Fans
Antec P30 Air Mid-Tower ATX Gaming Case, High-Airflow Mesh Front, Support for 360 mm Radiator, Tempered Glass Side Panel, USB-C & Five Pre-Installed Fans
Description
Metal Mesh Meets Premium Wood
Large metal mesh front panel with premium wood accents and chamfered design.

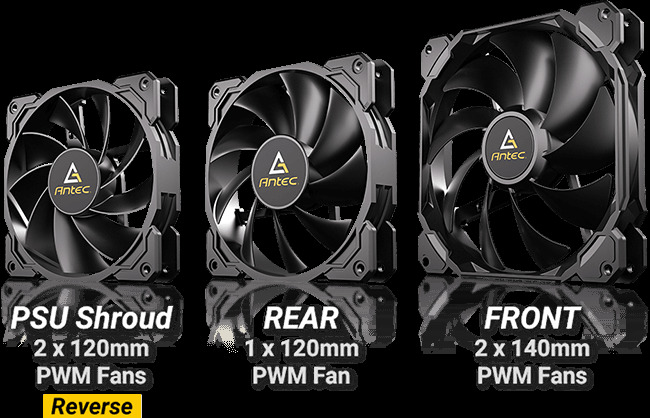

5 PWM Fans Included
Pre-installed fans : 2 x 140mm PWM fans at the front,
2 x 120mm PWM reverse fans on the PSU shroud,
1 x 120mm PWM fan at the rear.
Supports 360mm Radiator at the Top
Optimized Airflow for GPU Cooling
Large side intake design enhances airflow, while about 30mm of clearance between the bottom fans and the GPU allows reverse fans to deliver direct, efficient cooling.
Powerful Cooling Compatibility
Max. CPU Cooler Height : 175mm
Supports RTX 50 Series Graphics Cards
Accommodates GPUs up to 405mm in length, ensuring compatibility with the latest RTX 50 Series and other high-end components.
Tool-Free Panel Design
4mm tempered glass side panel with tool-free snap-on design for easy installation and removal.
Type-C 3.2 Gen 2 ready
Equipped with one high-speed USB Type-C 10Gbps port.
Power
Reset
Headphone / Mic Combo Jack
USB 3.0 *2
Type-C 3.2 Gen 2 (10Gbps)
Effortless Cable Management
Includes 4 rubber grommets and 3 Velcro straps for neat cable management and organization.
Specifications
Case Specifications
Dimensions
478 x 222 x 465mm (DWH)
Form Factor
Mid Tower
Materials
Steel + Plastic + Wood
Mainboard Support
ATX, Micro-ATX , ITX
Front Access & Controls
Power, Reset, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps) x 1, Headphone/Mic Combo Jack
Side Panel
4mm Tempered Glass
Drive Bays
Expansion Slots
7
3.5" / 2.5'
2 / 1
2.5"
1
Fan
Front
2 x 120mm / 2 x 140mm
Top
3 x 120mm / 2 x 140mm
Power Supply Shroud
2 x 120mm
Rear
1 x 120mm
Included Fan(s)
2 x 140mm PWM Fans at the front + 2 x 120mm PWM Reverse Fans on the PSU Shroud+ 1 x 120mm PWM Fan at the rear
Radiator Support
Front
120 / 140 / 240mm
Top
120 / 240 / 360mm
Rear
120mm (Length=160mm)
Clearance
Max GPU Length
=405mm
Max CPU Cooler Height
=175mm
Max PSU Length
(Cable included) =270mm
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
6.85 Kg
Gross Weight
8.35 Kg
Warranty
2 Years
Brand: ANTEC
Category: Cases
EAN: 0761345102568
Manufacturer Code: 0-761345-10256-8
Overview
Antec P30 Air Mid-Tower ATX Gaming Case, High-Airflow Mesh Front, Support for 360 mm Radiator, Tempered Glass Side Panel, USB-C & Five Pre-Installed Fans is listed under manufacturer code 0-761345-10256-8. It sits within the Cases & Cooling category. DCS Components can help source this item as part of a quote-led procurement request.
Key product details
- Manufacturer code: 0-761345-10256-8
- Category: Cases & Cooling
- EAN: 0761345102568
Procurement and setup support
DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
