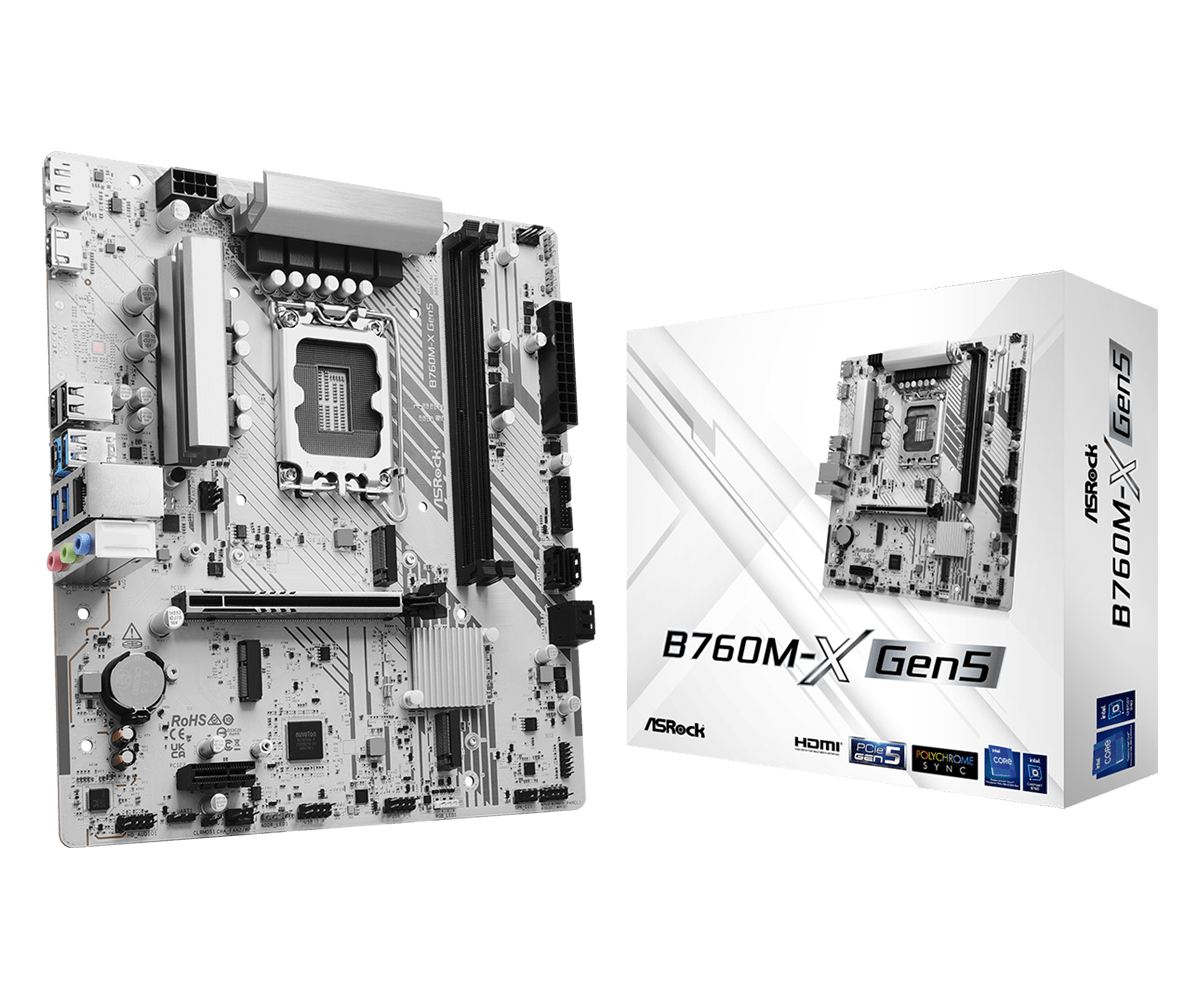

ASRock B760M-X Gen5 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Socket, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port
ASROCK Manufacturer Ref: B760M-X GEN5 In Stock Best Price

ASRock B760M-X Gen5 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Socket, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port

ASRock B760M-X Gen5 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Socket, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port

£110.43 Public Price
Add this product to a quote basket for review. DCS can advise on setup, deployment and compatibility.
Quote-led workflow Add to basket and submit a structured request for commercial review.
Setup and deployment Ask DCS about configuration, rollout, installation and compatibility.
Managed IT pathway Connect hardware purchases into support, security and refresh planning.
Best Available Offer £110.43
In Stock
View Quote Basket Ask About Setup
Brand ASROCK
Category Motherboards
Availability In Stock
Manufacturer Code B760M-X GEN5
EAN 4711581492356
Product Information

Description

B760M-X Gen5

Unique Feature
Superb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5
Rock-Solid Durability
- 7+1+1 Power Phase
- ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
Ultrafast Connectivity
- 2.5G LAN
EZ Update
- ASRock Auto Driver Installer

CPU
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)

Chipset
- Intel® B760

Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 128GB*
- Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support

Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control

Wireless LAN
N/A

Slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slots (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage
Chipset:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors

RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
Chipset:
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)

Connector
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

Accessories
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets

Form Factor
- Micro ATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm

OS
- Microsoft Windows® 10 64-bit / 11 64-bit

Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
