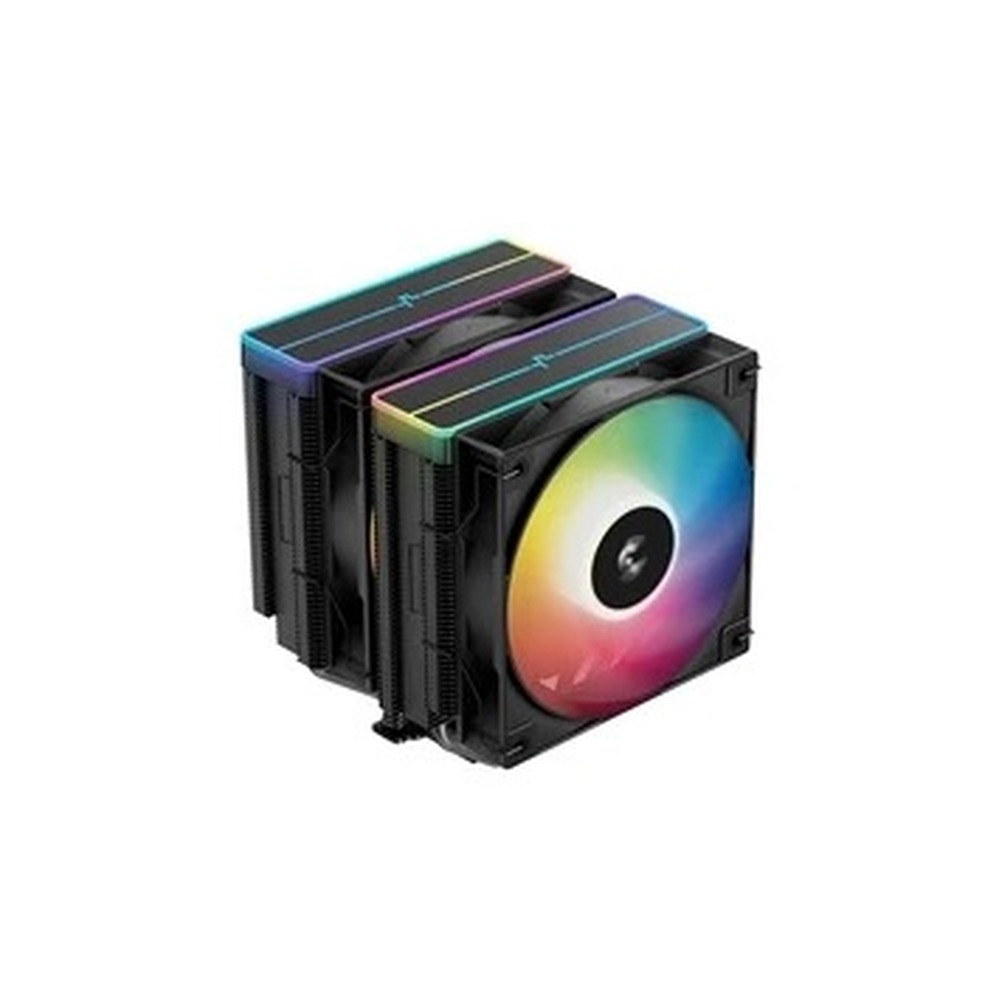

The DeepCool AG620 BK ARGB V2 is a high-performance, dual-tower air cooler designed for modern CPU builds. Finished in matte black, it combines a dense heatsink tower, six optimized heat pipes, and two precision-tuned 120 mm fans to deliver robust thermal performance. The cooler supports a wide range of Intel and AMD sockets, making it versatile for new and existing builds.

A standout feature is the Core Touch Technology 2.0, which improves heat transfer via an enhanced internal capillary structure and nickel-plated base, giving improved efficiency. The dual-tower architecture is further optimized with bidirectional heat-pipe technology to ensure strong heat dissipation no matter the orientation of the cooler.

Aesthetically, the AG620 BK V2 features fully addressable RGB (ARGB) lighting, blending a translucent logo and a lit top cover to provide elegant illumination that can sync with your motherboard or ARGB controller. The two 120 mm fans use PWM control, giving you a balance between cooling power and silent operation.

Installation is made easier with a robust, all-metal mounting bracket system that supports both Intel (including LGA 1851, 1700, 1200, 115X) and AMD (AM5 / AM4) platforms. The overall design is cost-efficient, combining good build quality, high thermal capacity, and eye-catching RGB — delivering excellent value for performance.

Full Specifications

Model / MPN:
AG620 BK ARGB V2 (R-AG620-BKAMMN-GJD)

Type:
CPU Air Cooler (dual-tower)

Supported Sockets:
Intel: LGA 1851, LGA 1700, LGA 1200, LGA 1151/1150/1155
AMD: AM5, AM4

Cooling Capacity (TDP):
Up to ~260 W

Dimensions (Product):
129 X 136 X 161 mm (L X W X H)

Heatsink Dimensions:
127 X 110 X 157 mm

Weight (Net):
~1.33 kg

Heat Pipes:
6 X 6 mm

Fans:
2 X 120 mm (120 X 120 X 25 mm)

Fan Speed:
300 – 1950 RPM ±10%

Fan Airflow:
67.88 CFM

Static Air Pressure:
2.04 mmH2O

Noise Level (Max):
= 29.4 dB(A)

Bearing Type:
Hydro (hydraulic) bearing

Fan Connector:
4-pin PWM

LED Type:
Addressable RGB (ARGB)

LED Connector:
3-pin (+5V-D-G)

LED Rated Voltage:
5 V DC

LED Power Consumption:
~6.4 W

Rated Fan Voltage:
12 V DC

Rated Fan Current:
0.14 A

Power Consumption (Fan):
~1.68 W

Material:
Aluminium fins, nickel-plated copper base/heat-pipes

Colour / Finish:
Black, matte finish

Warranty:
2 years

EAN / Barcode:
6933412729242

Brand: DEEPCOOL

Category: Fans

EAN: 6933412729242

Manufacturer Code: R-AG620-BKAMMN-GJD

Overview

DeepCool AG620 BK ARGB V2 Dual-Tower CPU Air Cooler with 120mm ARGB Fans, Compatible with Intel LGA 1851/1700/1200/115x & AMD AM5/AM4, High-Performance Quiet Cooling, Matte Black is listed under manufacturer code R-AG620-BKAMMN-GJD. It sits within the Cases & Cooling category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: R-AG620-BKAMMN-GJD
• Category: Cases & Cooling
• EAN: 6933412729242

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
