DeepCool AN600 Low-Profile CPU Cooler, 1x 120mm PWM Fans, Aluminium Fins, Copper Base, 6x Heatpipes, Intel/AMD
DeepCool AN600 Low-Profile CPU Cooler, 1x 120mm PWM Fans, Aluminium Fins, Copper Base, 6x Heatpipes, Intel/AMD
£51.24
Public Price
Add this product to a quote basket for review. DCS can advise on setup, deployment and compatibility.
Quote-led workflow
Add to basket and submit a structured request for commercial review.
Setup and deployment
Ask DCS about configuration, rollout, installation and compatibility.
Managed IT pathway
Connect hardware purchases into support, security and refresh planning.
Best Available Offer
£51.24
In Stock
Brand
DEEPCOOL
Category
Cases & Cooling
Availability
In Stock
Manufacturer Code
R-AN600-BKNNMN-G
EAN
6933412728146
Product Information
Description
AN600

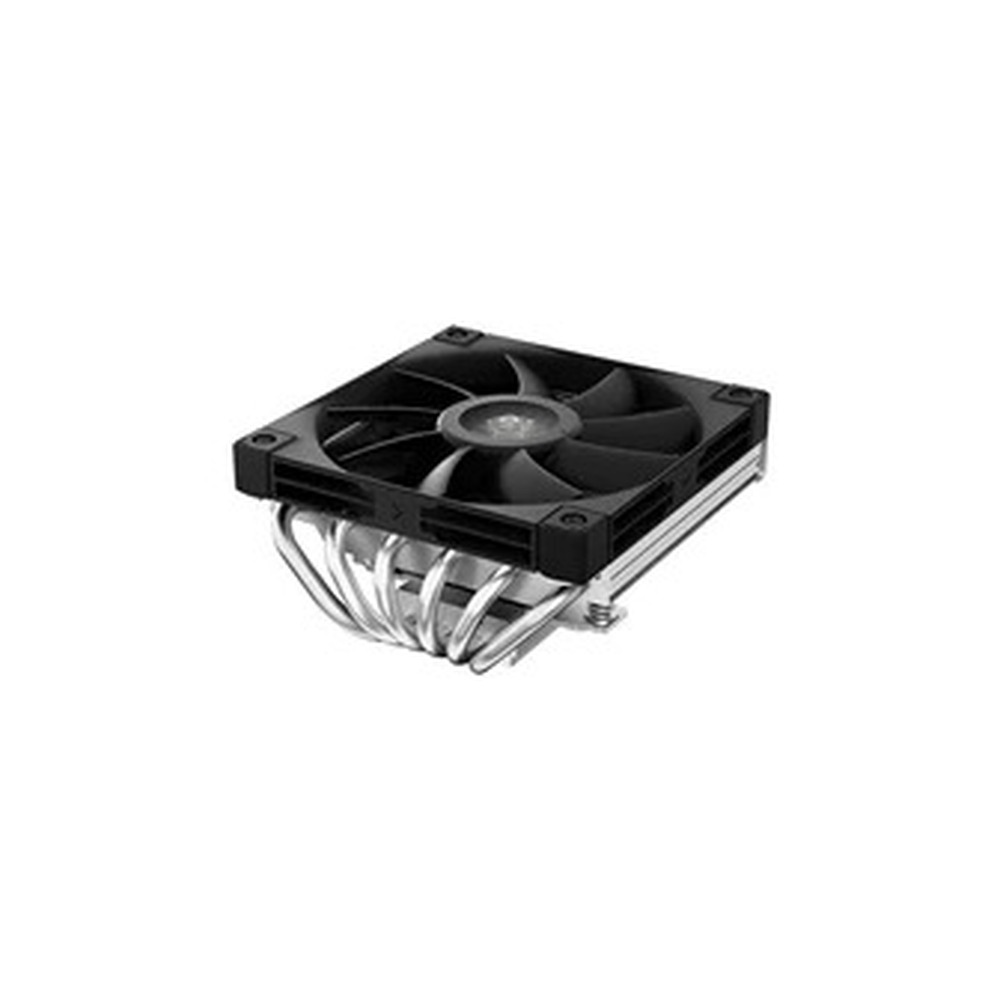

The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.
AN600
Top Flow Low Profile Cooler
KEEPING THINGS COOL
Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.
MORE THAN A CPU COOLER
Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible 6-phase fan motor ensures all of this is accomplished while staying under 24.2 dB(A). A low-noise adapter cable is included.
SIMPLIFIED SUPPORT
The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
APPLICATION
NTEL: LGA1700/1200/1151/1150/1155/1851
AMD: AM5/AM4
Product Dimensions
122 120 x 67 mm (L x W x H)
Heatsink Dimensions
121 x 120 x 52 mm (L x W x H)
Net Weight
628 g
Heatpipe
6 mm x 6 pcs
Fan Dimensions
120 x 120 x 15 mm (L x W x H)
Fan Speed
500~1850 RPM±10%
Fan Airflow
61.56 CFM
Fan Air Pressure
1.97 mmAq
Fan Noise
=24.4 dB(A)
Fan Speed (with LSP)
500~1250 RPM±10%
Fan Airflow (with LSP)
41.51 CFM
Fan Air Pressure (with LSP)
1.19 mmAq
Fan Noise (with LSP)
=20 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.27 A
Fan Power Consumption
3.24 W
LED Type
White LED
The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.
AN600
Top Flow Low Profile Cooler
KEEPING THINGS COOL
Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.
MORE THAN A CPU COOLER
Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible 6-phase fan motor ensures all of this is accomplished while staying under 24.2 dB(A). A low-noise adapter cable is included.
SIMPLIFIED SUPPORT
The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
APPLICATION
NTEL: LGA1700/1200/1151/1150/1155/1851
AMD: AM5/AM4
Product Dimensions
122 120 x 67 mm (L x W x H)
Heatsink Dimensions
121 x 120 x 52 mm (L x W x H)
Net Weight
628 g
Heatpipe
6 mm x 6 pcs
Fan Dimensions
120 x 120 x 15 mm (L x W x H)
Fan Speed
500~1850 RPM±10%
Fan Airflow
61.56 CFM
Fan Air Pressure
1.97 mmAq
Fan Noise
=24.4 dB(A)
Fan Speed (with LSP)
500~1250 RPM±10%
Fan Airflow (with LSP)
41.51 CFM
Fan Air Pressure (with LSP)
1.19 mmAq
Fan Noise (with LSP)
=20 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.27 A
Fan Power Consumption
3.24 W
LED Type
White LED
Brand: DEEPCOOL
Category: Fans
EAN: 6933412728146
Manufacturer Code: R-AN600-BKNNMN-G
Overview
DeepCool AN600 Low-Profile CPU Cooler, 1x 120mm PWM Fans, Aluminium Fins, Copper Base, 6x Heatpipes, Intel/AMD is listed under manufacturer code R-AN600-BKNNMN-G. It sits within the Cases & Cooling category. DCS Components can help source this item as part of a quote-led procurement request.
Key product details
- Manufacturer code: R-AN600-BKNNMN-G
- Category: Cases & Cooling
- EAN: 6933412728146
Procurement and setup support
DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
