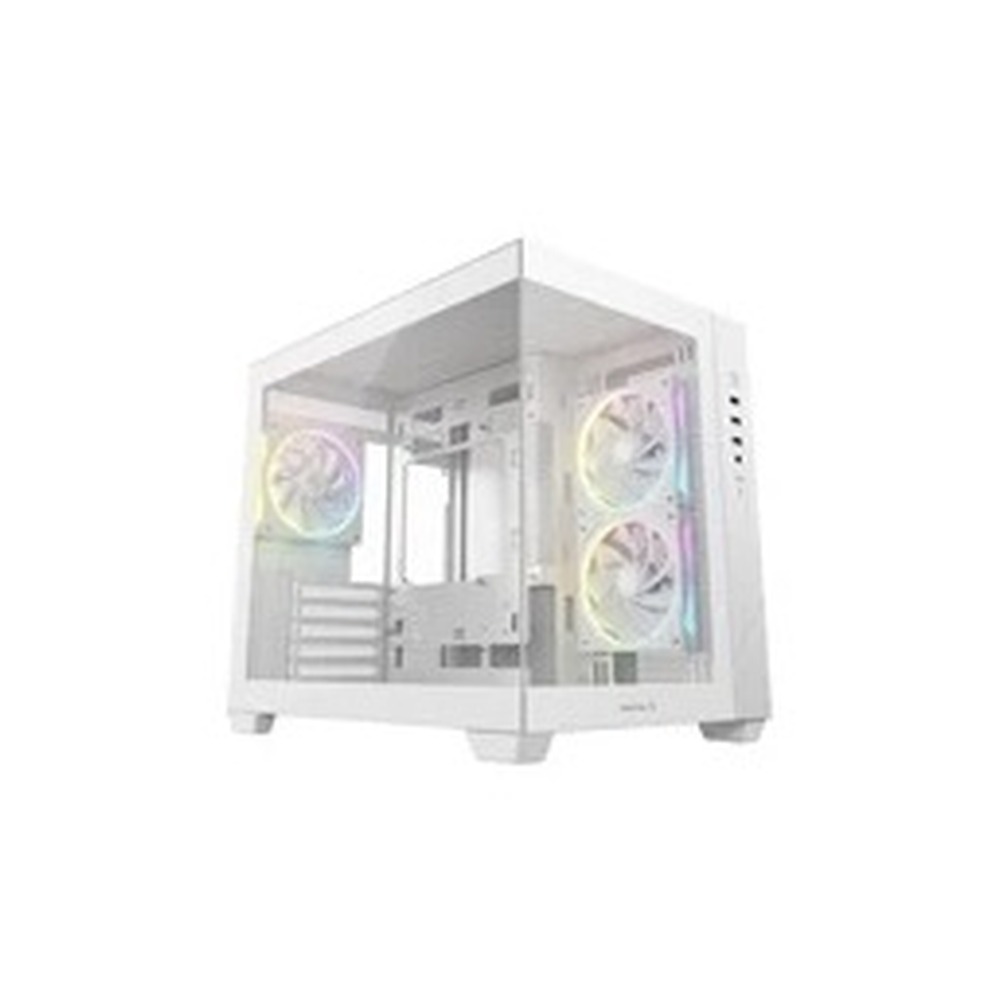

DeepCool CG330 3F WH is a panoramic Micro-ATX case

The CG330 3F WH is a panoramic Micro-ATX case with a dual-chamber structure for better airflow and organization. Pre-installed with three ARGB fans, it creates a vibrant showcase for your hardware.

BUILT TO SHOW MORE
The CG330 3F WH features a pillarless full-view side panel that delivers an expansive view in a compact footprint. Support for reverse connector motherboards keeps cables out of sight, maintaining a clean, sharp look.

SMART SEPARATION,CLEAN EXECUTION
Start a clean build with a dual-chamber layout that isolates power and storage components from the main airflow path. This improves cooling efficiency and makes better use of internal space.

BALANCED AIRFLOW AND AESTHETICS
The CG330 3F WH comes pre-installed with two reverse-blade FL series fans on the side and one standard at the rear, forming a horizontal airflow channel that cools effectively. DeepCool’s unique lighting design delivers a uniform glow to your build.

WIDE HARDWARE SUPPORT
Compact in size yet generous in compatibility, the CG330 3F WH supports GPUs up to 410mm, ATX PSUs up to 200mm, and CPU coolers up to 164mm. With 5 PCIe slots, it accommodates most modern graphics and expansion cards, while storage options include up to 2× 3.5" HDDs and 4× 2.5" SSDs, giving you flexibility to balance capacity and speed.

COOLING FROM ALL SIDES
Never fear the heat with CG330 3F WH’s exceptional cooling flexibility. Install up to nine 120mm fans throughout the case to maximize airflow, while radiator support includes up to 360mm on the top or bottom, and up to 280mm on the side.

DETAILS THAT MATTER
Magnetic dust filters on the top and bottom help reduce buildup and make cleaning easier. Access ports quickly with a side I/O panel featuring USB 3.0, dual USB 2.0, and an audio jack. A spacious 46mm cable management area makes it easy to route and organize your cables.

Specifications

Product Dimensions
420x285x368mm(LxWxH)

Net Weight
5.5kg

Materials
ABS+SPCC+Tempered Glass

Motherboard Support
ITX/Micro-ATX
Micro-ATX(Rear Connector)

Front I/O Ports
USB3.0 x1,USB2.0 x2,Audio x1"

3.5"Drive Bays
1+1

2.5" Drive Bays
2+2

Expansion Slots
5 Slots

Pre-Installed Fans
Side: 2x120mm
Rear: 1x120mm

Fan Support
Top:3x120 / 2x140mm
Side:2x120 / 2x140mm
Bottom:3x120 mm
Rear: 1x120mm

Radiator Support
Top: 120/140/240/280/360mm
Side:120/140/240/280mm
Bottom:120/240/360mm
Rear: 120 mm

CPU Cooler Height Limit
164mm

GPU Length Limit
410mm

Power Supply Type
200mm

Brand: DEEPCOOL

Category: Cases

EAN: 6933412765509

Manufacturer Code: R-CG330-WHNGM3-G

Overview

DeepCool CG330 3F ARGB Dual-Chamber Micro-ATX Tower Case, Tempered Glass Panels, 3 x 120mm ARGB Fans, USB 3.0, ITX/Micro-ATX, White is listed under manufacturer code R-CG330-WHNGM3-G. It sits within the Cases & Cooling category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: R-CG330-WHNGM3-G
• Category: Cases & Cooling
• EAN: 6933412765509
