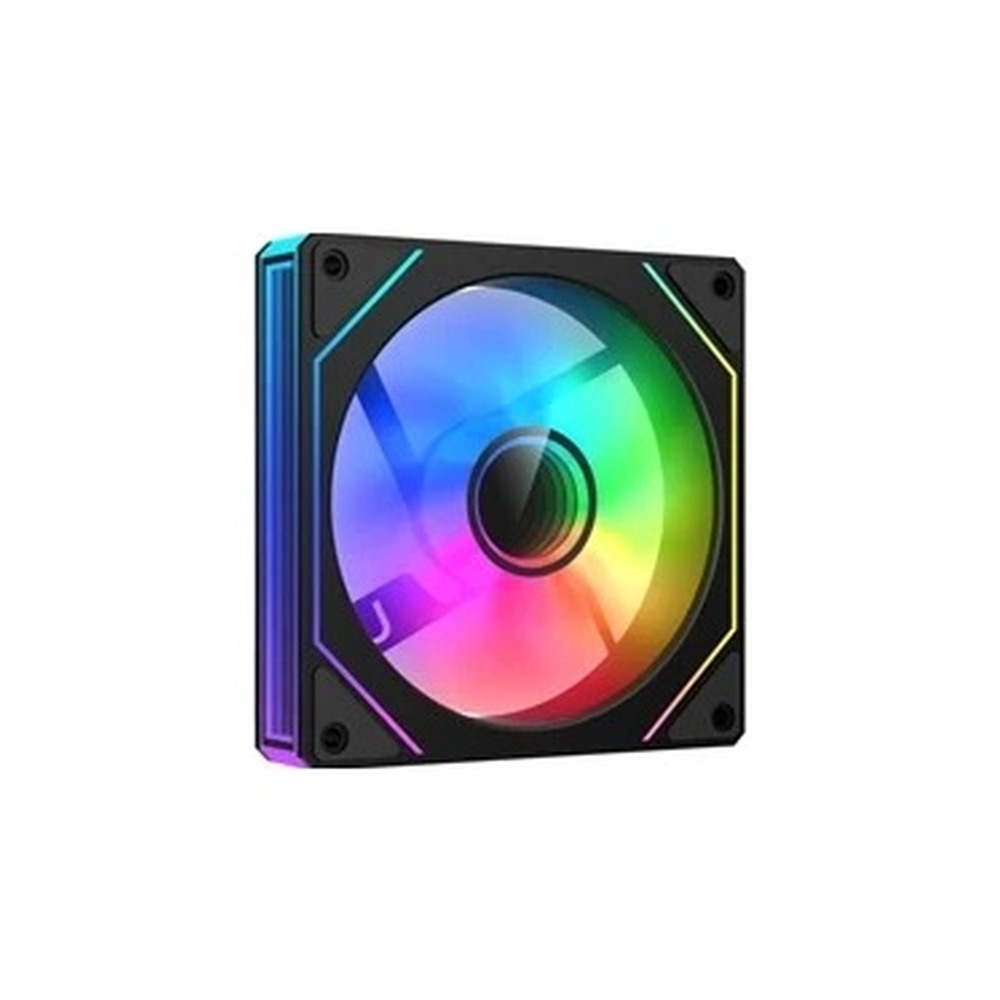

DeepCool CG530 Bulk Fan - High Performance, Silent Operation, Fluid Dynamic Bearing, Black
DeepCool CG530 Bulk Fan - High Performance, Silent Operation, Fluid Dynamic Bearing, Black
Description
The fan includes addressable RGB LEDs that create dynamic lighting effects and are fully controllable through standard 3-pin ARGB headers. It operates with low noise thanks to a hydro bearing system and rubber vibration-dampening pads at all four corners.
PWM speed control allows the fan to adjust automatically based on thermal demand, ensuring optimal performance while maintaining quiet operation. Its streamlined cabling supports daisy-chaining for cleaner builds and easier management.
Key Features:
High-Efficiency Cooling: Provides strong airflow and static pressure
Low Noise: Hydro bearing with anti-vibration pads
Addressable RGB: Dynamic lighting effects with ARGB compatibility
PWM Fan Control: Intelligent fan speed adjustment
Daisy-Chain Design: Simplified cable routing
Specifications:
Dimensions:
Fan Size:
120 x 120 x 25 mm
Performance:
Fan Speed:
500 – 1800 RPM ±10%
Airflow:
Up to 61.91 CFM
Static Pressure:
Up to 1.83 mmH2O
Noise Level:
=28 dB(A)
Electrical Characteristics:
Rated Voltage (Fan):
12 VDC
Rated Voltage (LED):
5 VDC
Rated Current (Fan):
0.13 A
Rated Current (LED):
0.21 A
Power Consumption (Fan):
1.56 W
Power Consumption (LED):
1.05 W
Connectivity:
Fan Connector:
4-pin PWM
LED Connector:
3-pin ARGB (5V)
Lighting:
Type:
Addressable RGB
Control:
Compatible with 5V ARGB motherboard headers
Construction:
Bearing Type:
Hydro Bearing
Frame Material:
PBT
Blade Material:
Polycarbonate
Noise Dampening:
Rubber pads on all corners
Package Contents:
1 x 120mm ARGB Fan
Mounting Screws
User Guide
Warranty:
2 Years
Key Features
- Product Type: Case Fan
- Fan Size: 120mm
- Max Fan Speed: 1800RPM
- Fan Shroud Colour: Black
- LED Colour: Addressable RGB
- Connections: 4-Pin Fan & 3-Pin ARGB
Supplier Category: Fans
Manufacturer Code: R-EDF120-BKAPP17-G-1
EAN: 06933412797029
Weight (KG): 0.15
VAT Rate: 20%
Overview
DeepCool CG530 Bulk Fan - High Performance, Silent Operation, Fluid Dynamic Bearing, Black is listed under manufacturer code R-EDF120-BKAPP17-G-1. It sits within the Cases & Cooling category. DCS Components can help source this item as part of a quote-led procurement request.
Key product details
- Manufacturer code: R-EDF120-BKAPP17-G-1
- High Performance, Silent Operation, Fluid Dynamic Bearing, Black
- Category: Cases & Cooling
- EAN: 06933412797029
Procurement and setup support
DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
Available Buying Options
Multiple purchasing options may be available for this product. In-stock and best-value options are shown first. DCS can help review the right option for availability, setup, deployment and support.
Manufacturer Ref: R-EDF120-BKAPP17-G-1
In Stock
