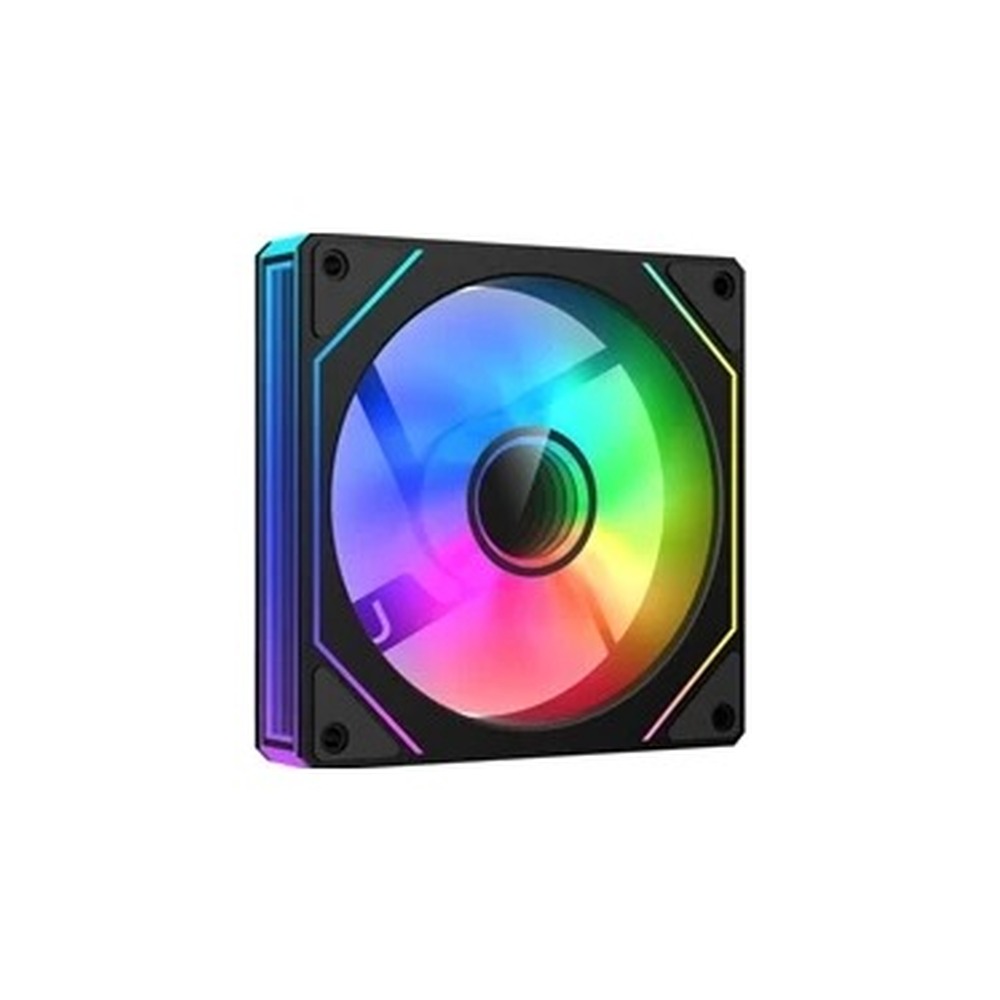

This 120mm ARGB PWM case fan is designed to deliver efficient cooling performance while enhancing the visual appeal of your PC build. Featuring a 9-blade design, it ensures optimal airflow and static pressure, making it suitable for various cooling applications.

Equipped with ARGB lighting, the fan offers vibrant illumination to complement your system's aesthetics. The hydro bearing technology ensures quiet operation and longevity, while the anti-vibration rubber pads minimize noise and vibration.

With PWM control, the fan speed can be adjusted based on system requirements, providing a balance between cooling performance and noise levels.

Key Features:
Efficient Cooling: Delivers high airflow and static pressure for effective cooling.
ARGB Lighting: Enhances the visual appeal of your PC with vibrant illumination.
Quiet Operation: Hydro bearing and anti-vibration pads ensure minimal noise.
PWM Control: Allows dynamic adjustment of fan speed based on system needs.

Specifications:

General:
Model Number:
R-EDF120-BKAPR17-G-1

Color:
Black

Quantity:
1 Fan

Fan Dimensions:
Size:
120 × 120 × 25 mm

Weight:
Approximately 150 g

Performance:
Speed:
500–1800 RPM ±10%

Airflow:
Up to 61.91 CFM

Static Pressure:
Up to 1.83 mmH2O

Noise Level:
=28 dB(A)

Electrical:
Rated Voltage:
12 VDC (Fan), 5 VDC (LED)

Rated Current:
0.13 A (Fan), 0.21 A (LED)

Power Consumption:
1.56 W (Fan), 1.05 W (LED)

Connectors:
Fan Connector:
4-pin PWM

LED Connector:
3-pin ARGB

Lighting:
Type:
RGB

Control:
Compatible with standard RGB controllers

Bearing Type:
Hydro Bearing

Materials:
Frame:
PBT (Polybutylene Terephthalate)

Blades:
Polycarbonate

Noise Dampening:
Rubber Pads:
Anti-vibration pads at each corner

Package Contents:
1 × 120mm RGB PWM Case Fan
Mounting Screws
User Manual

Warranty:
2 Years

Brand: DEEPCOOL

Category: Fans

EAN: 6933412797005

Manufacturer Code: R-EDF120-BKAPR17-G-1

Overview

DeepCool CG530 Bulk Reverse Fan - High Performance, Silent Operation, Fluid Dynamic Bearing, Black is listed under manufacturer code R-EDF120-BKAPR17-G-1. It sits within the General Catalogue category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: R-EDF120-BKAPR17-G-1
• High Performance, Silent Operation, Fluid Dynamic Bearing, Black
• Category: General Catalogue
• EAN: 6933412797005
