The DeepCool CH160 PLUS is a compact Micro-ATX chassis designed to deliver excellent airflow and hardware compatibility in a portable form factor. Retaining the clean design of the original CH160, the PLUS model expands support for Micro-ATX motherboards and 240mm liquid cooling, allowing more powerful builds while maintaining a compact footprint.

Mesh panels surround the chassis to maximise airflow, while an integrated carry handle allows easy movement and repositioning of your system. Despite its small size, the CH160 PLUS supports large GPUs up to 342mm, CPU coolers up to 164mm, and ATX power supplies up to 140mm, making it ideal for high-performance compact systems.

Convenient front I/O connectivity includes USB 3.0 ports and a Gen2 USB Type-C port, ensuring compatibility with modern devices and peripherals.

Compact Micro-ATX / Mini-ITX Mini Tower chassis

High-airflow mesh panel design

240mm radiator support for liquid cooling

Integrated carry handle for portability

Supports GPUs up to 342mm

USB-C Gen2 front I/O connectivity

Tempered glass side panel

Specifications

Form Factor
Mini Tower

Motherboard Support
Micro-ATX
Mini-ITX

PSU Support
ATX PS2 / SFX / SFX-L

PSU Location
Top

PSU Max Length
140mm

Body Material
ABS + SPCC Steel

Side Panel
Tempered Glass

Drive Bays
1 x 3.5" Internal
2 x 2.5" Internal

Expansion Slots
4 x Full Size

Cooling
Front: 1 x 120mm or 1 x 140mm (with SFX PSU)
Top: 2 x 120mm
Rear: 1 x 120mm
Bottom: None

Radiator Support
Front: None
Top: 120mm / 240mm
Rear: 120mm

Pre-Installed Fans
None

IO Ports
2 x USB 3.0
1 x USB Type-C (Gen2)
1 x Audio / Mic Combo

GPU Max Length
342mm

CPU Cooler Maximum Height
164mm

Digital Display

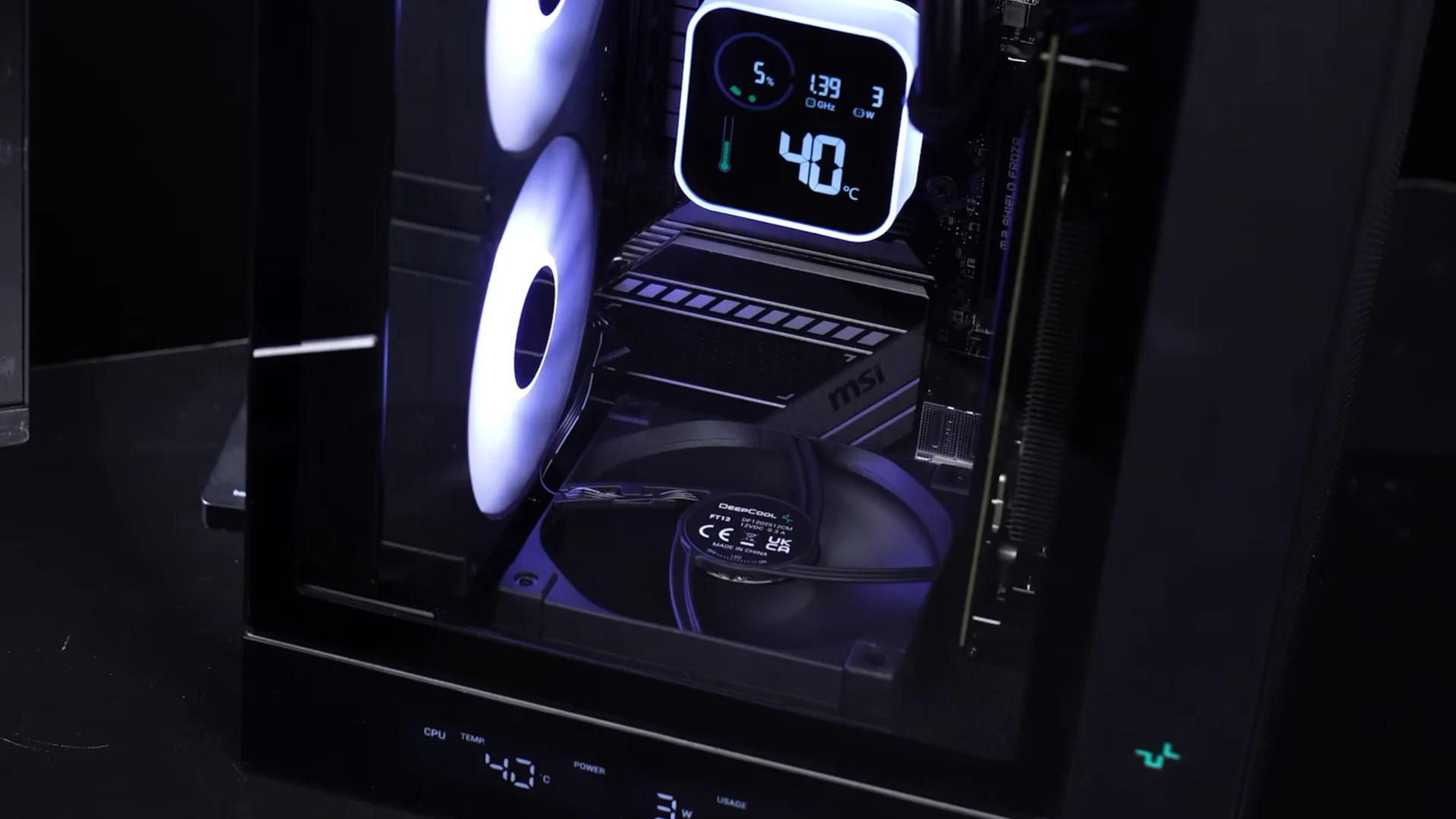

Integrated system monitoring display showing CPU and GPU status information. Powered via USB connection to the motherboard.

Display Connectivity
USB connection to motherboard rear USB port

Front Bezel Colour
Black

Body Colour
Black

PSU Included
No

Dimensions ( L x W x H )
375 x 195 x 323.5mm

Weight
4.2kg

EAN
6933412765356

Manufacturer Part Number
R-CH160-BKNGM0-G

What's In The Box
Case
Accessory Pack

Brand: DEEPCOOL

Category: Cases

EAN: 6933412765257

Manufacturer Code: R-CH270-BKNDM0-G-1

Overview

DeepCool CH270 Digital Micro-ATX Case, Mini-Tower PC Case with Tempered Glass Side Panel, USB-C Port, High Airflow Support for 360mm Radiator, ATX PSU, Black is listed under manufacturer code R-CH270-BKNDM0-G-1. It sits within the Cases & Cooling category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: R-CH270-BKNDM0-G-1
• Category: Cases & Cooling
• EAN: 6933412765257

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
