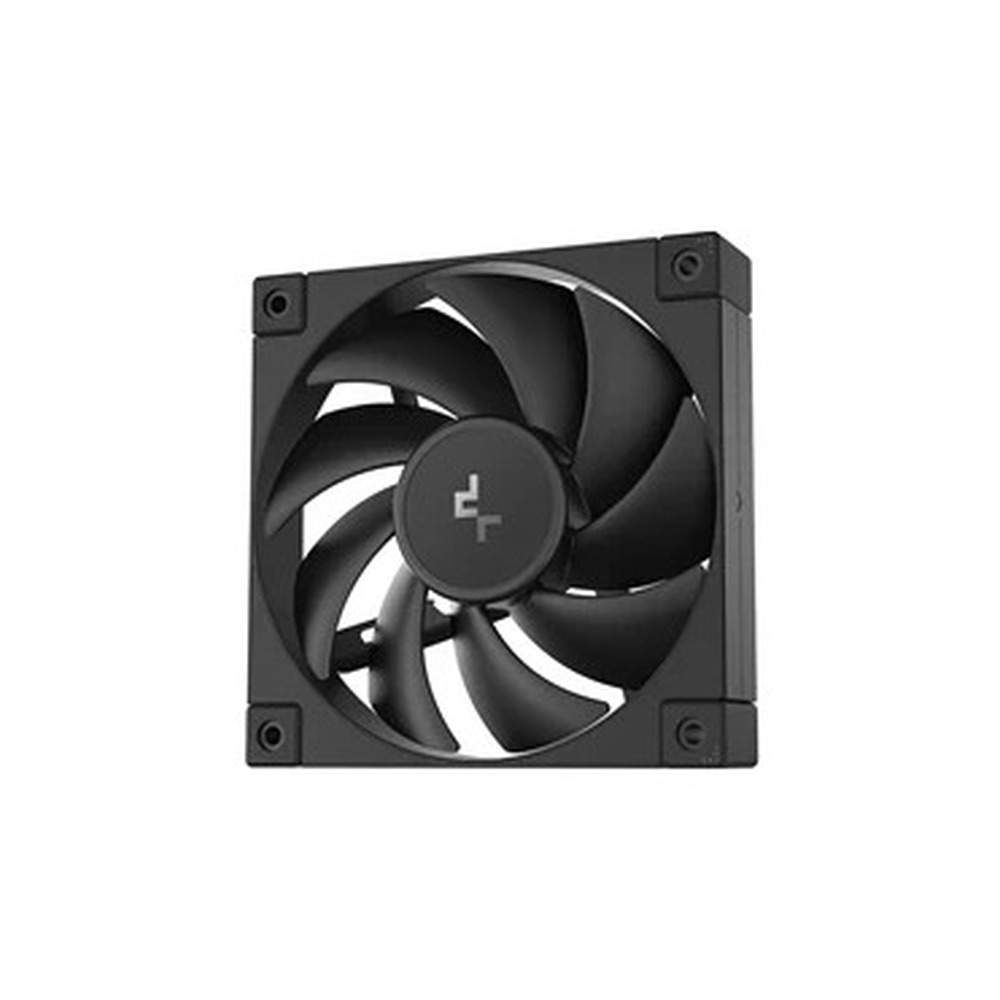

DeepCool FD12 120mm PWM Case Fan, High Airflow, Low Noise, Hydro Bearing, Daisy-Chain 8-Pin Connector, Black, Single Pack
DeepCool FD12 120mm PWM Case Fan, High Airflow, Low Noise, Hydro Bearing, Daisy-Chain 8-Pin Connector, Black, Single Pack
£22.88
Public Price
Add this product to a quote basket for review. DCS can advise on setup, deployment and compatibility.
Quote-led workflow
Add to basket and submit a structured request for commercial review.
Setup and deployment
Ask DCS about configuration, rollout, installation and compatibility.
Managed IT pathway
Connect hardware purchases into support, security and refresh planning.
Best Available Offer
£22.88
In Stock
Brand
DEEPCOOL
Category
Cases & Cooling
Availability
In Stock
Manufacturer Code
R-FD12-BKNPN1-G
EAN
6933412710912
Product Information
Description
This 120mm PWM case fan is engineered to deliver strong airflow and static pressure for efficient system cooling. It features a high-performance 9-blade design that supports balanced thermal management while minimizing operational noise.
With a hydro bearing system and vibration-dampening rubber pads on each corner, the fan provides quiet and reliable operation over extended periods. The 8-pin daisy-chain connector simplifies cable management, making installation easier and cleaner for multi-fan setups.
Built with high-quality materials, this fan is a dependable choice for performance-focused users looking for cooling efficiency and ease of use.
Key Features:
High Airflow & Static Pressure: Designed to enhance both case ventilation and radiator performance
Low Noise Operation: Hydro bearing and rubber pads reduce sound and vibration
Daisy-Chain Support: 8-pin connector simplifies cable routing for multi-fan configurations
Durable Build: Made with robust frame and blade materials for long-term performance
Specifications:
Fan Dimensions:
120 × 120 × 25 mm
Performance:
Fan Speed: 400 – 2050 RPM ±10%
Airflow: Up to 64.2 CFM
Static Pressure: Up to 2.49 mmAq
Noise Level: =27.6 dB(A)
Electrical:
Rated Voltage: 12 VDC
Rated Current: 0.13 A
Power Consumption: 1.56 W
Connectors:
Fan Connector: 4-pin PWM
Daisy-Chain Connector: 8-pin proprietary
Bearing Type:
Hydro Bearing
Material:
Frame: PBT (Polybutylene Terephthalate)
Fan Blades: Polycarbonate
Mounting & Noise Control:
Rubber Dampening Pads: Yes, on all corners
Package Contents:
1 × 120mm PWM Case Fan
Mounting Screws
Installation Guide
Warranty:
3 Years
With a hydro bearing system and vibration-dampening rubber pads on each corner, the fan provides quiet and reliable operation over extended periods. The 8-pin daisy-chain connector simplifies cable management, making installation easier and cleaner for multi-fan setups.
Built with high-quality materials, this fan is a dependable choice for performance-focused users looking for cooling efficiency and ease of use.
Key Features:
High Airflow & Static Pressure: Designed to enhance both case ventilation and radiator performance
Low Noise Operation: Hydro bearing and rubber pads reduce sound and vibration
Daisy-Chain Support: 8-pin connector simplifies cable routing for multi-fan configurations
Durable Build: Made with robust frame and blade materials for long-term performance
Specifications:
Fan Dimensions:
120 × 120 × 25 mm
Performance:
Fan Speed: 400 – 2050 RPM ±10%
Airflow: Up to 64.2 CFM
Static Pressure: Up to 2.49 mmAq
Noise Level: =27.6 dB(A)
Electrical:
Rated Voltage: 12 VDC
Rated Current: 0.13 A
Power Consumption: 1.56 W
Connectors:
Fan Connector: 4-pin PWM
Daisy-Chain Connector: 8-pin proprietary
Bearing Type:
Hydro Bearing
Material:
Frame: PBT (Polybutylene Terephthalate)
Fan Blades: Polycarbonate
Mounting & Noise Control:
Rubber Dampening Pads: Yes, on all corners
Package Contents:
1 × 120mm PWM Case Fan
Mounting Screws
Installation Guide
Warranty:
3 Years
Brand: DEEPCOOL
Category: Fans
EAN: 6933412710912
Manufacturer Code: R-FD12-BKNPN1-G
