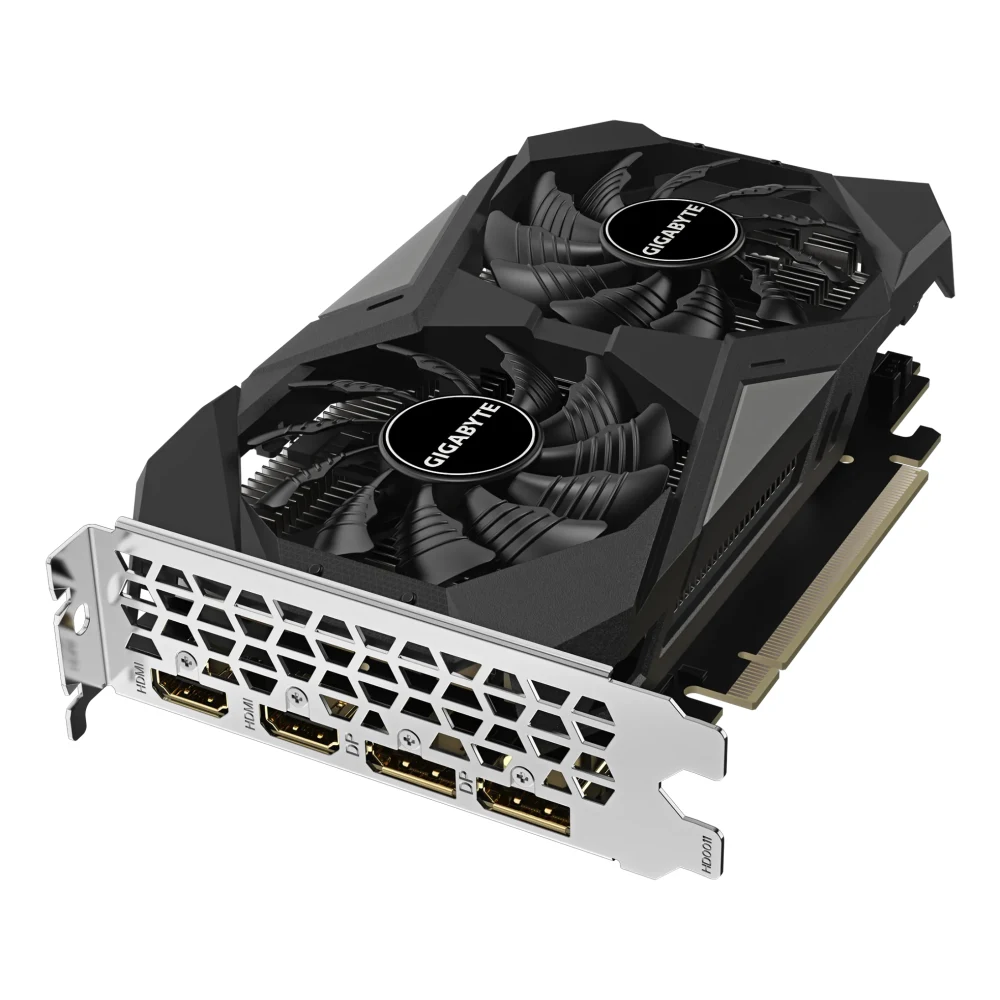

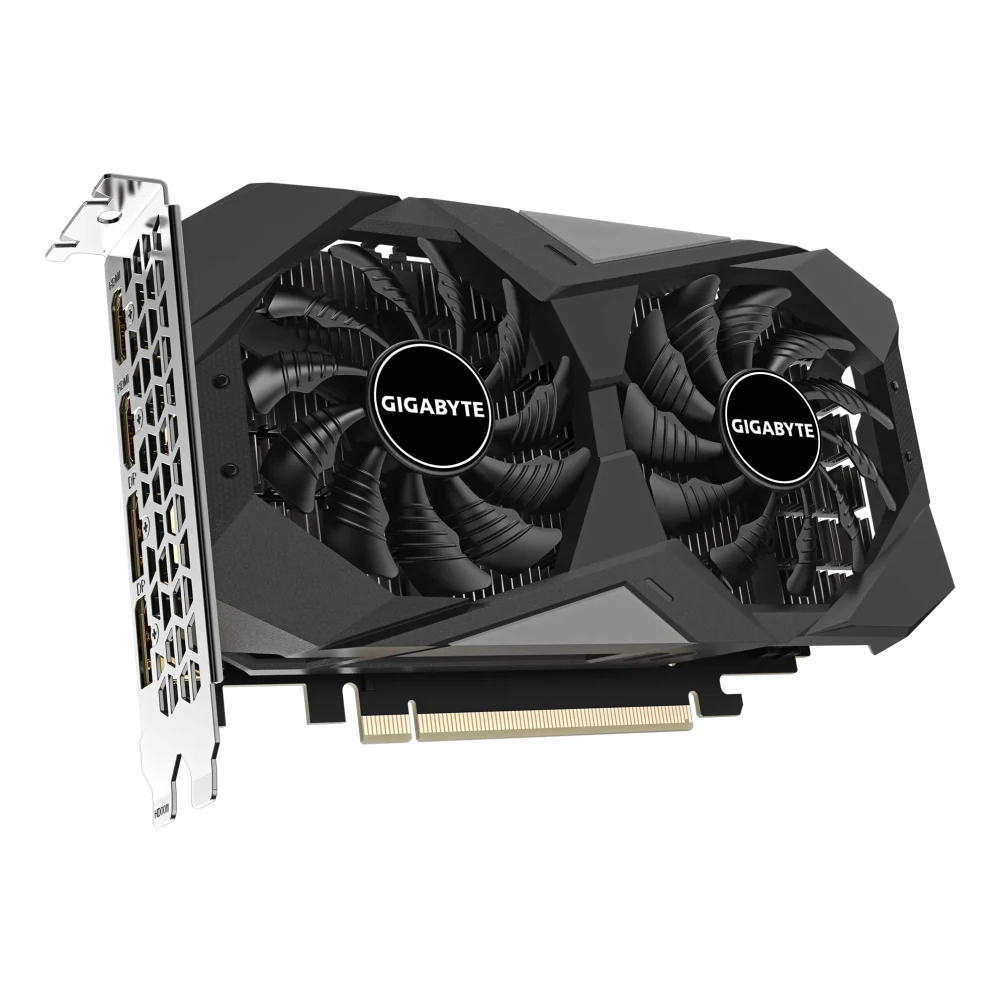

Gigabyte NVIDIA GeForce RTX 3050 WINDFORCE OC V2 6GB GDDR6 Graphics Card, 2304 CUDA Cores, 1477 MHz Core Clock, Dual Fan, 2x DisplayPorts / 2x HDMI Ports
Gigabyte NVIDIA GeForce RTX 3050 WINDFORCE OC V2 6GB GDDR6 Graphics Card, 2304 CUDA Cores, 1477 MHz Core Clock, Dual Fan, 2x DisplayPorts / 2x HDMI Ports
Description
KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX 3050
Integrated with 6GB GDDR6 96-bit memory interface
WINDFORCE cooling system
CORE CLOCK
1477 MHz (Reference Card: 1470 MHz)
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two unique blade fans, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ULTRA DURABLE, ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specification
Graphics Processing
GeForce RTX 3050
Core Clock
1477 MHz (Reference Card: 1470 MHz)
CUDA Cores
2304
Memory Clock
14000 MHz
Memory Size
6 GB
Memory Type
GDDR6
Memory Bus
96 bit
Card Bus
PCI-E 4.0
Digital Max Resolution
7680x4320
Multi-View
4
Card Size
L=191 W=111 H=36 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
300W
Power Connectors
N/A
Output
DP1.4a x 2
HDMI 2.1 x 2
Accessories
Quick guide
Brand: GIGABYTE
Category: Graphics Cards
EAN: 719331355081
Manufacturer Code: GV-N3050WF2OCV2-6GD
Overview
Gigabyte NVIDIA GeForce RTX 3050 WINDFORCE OC V2 6GB GDDR6 Graphics Card, 2304 CUDA Cores, 1477 MHz Core Clock, Dual Fan, 2x DisplayPorts / 2x HDMI Ports is listed under manufacturer code GV-N3050WF2OCV2-6GD. It sits within the Graphics Cards category. DCS Components can help source this item as part of a quote-led procurement request.
Key product details
- Manufacturer code: GV-N3050WF2OCV2-6GD
- Category: Graphics Cards
- EAN: 719331355081
Procurement and setup support
DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
Available Buying Options
Multiple purchasing options may be available for this product. In-stock and best-value options are shown first. DCS can help review the right option for availability, setup, deployment and support.
Manufacturer Ref: GV-N3050WF2OCV2-6GD
In Stock
