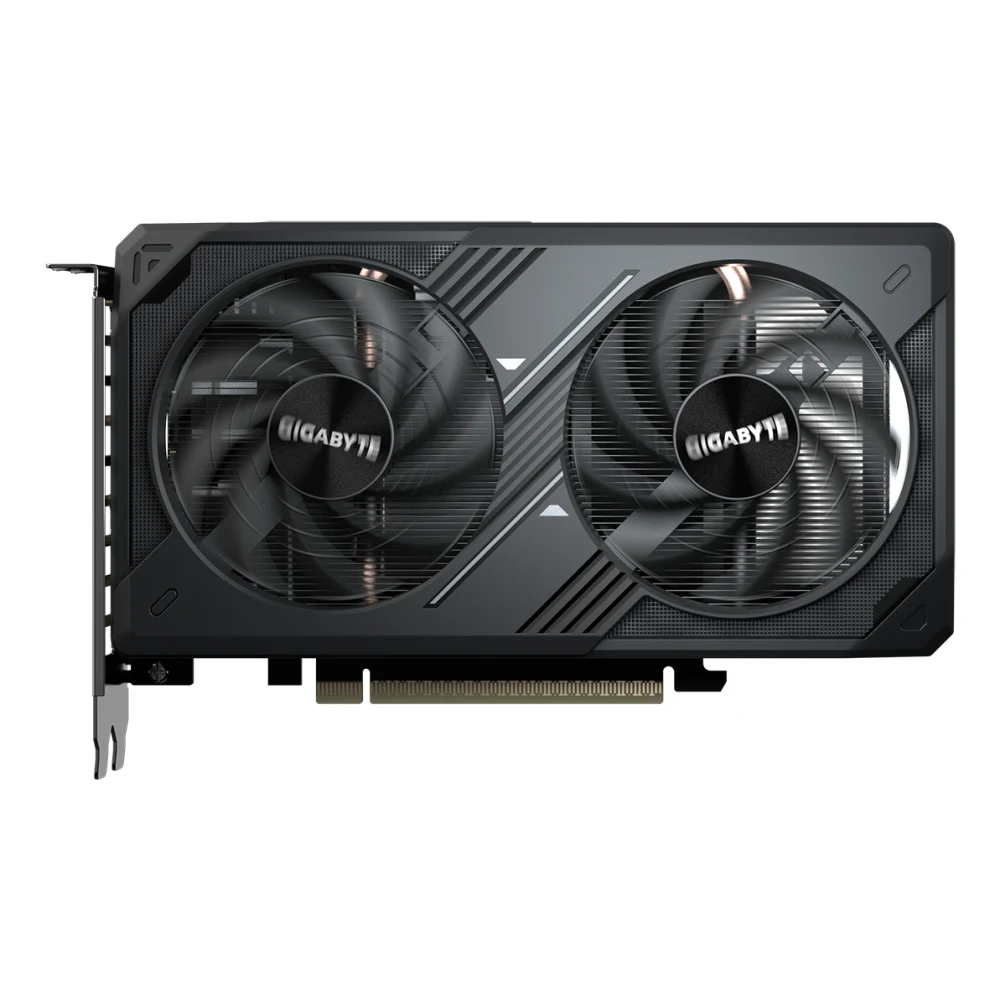

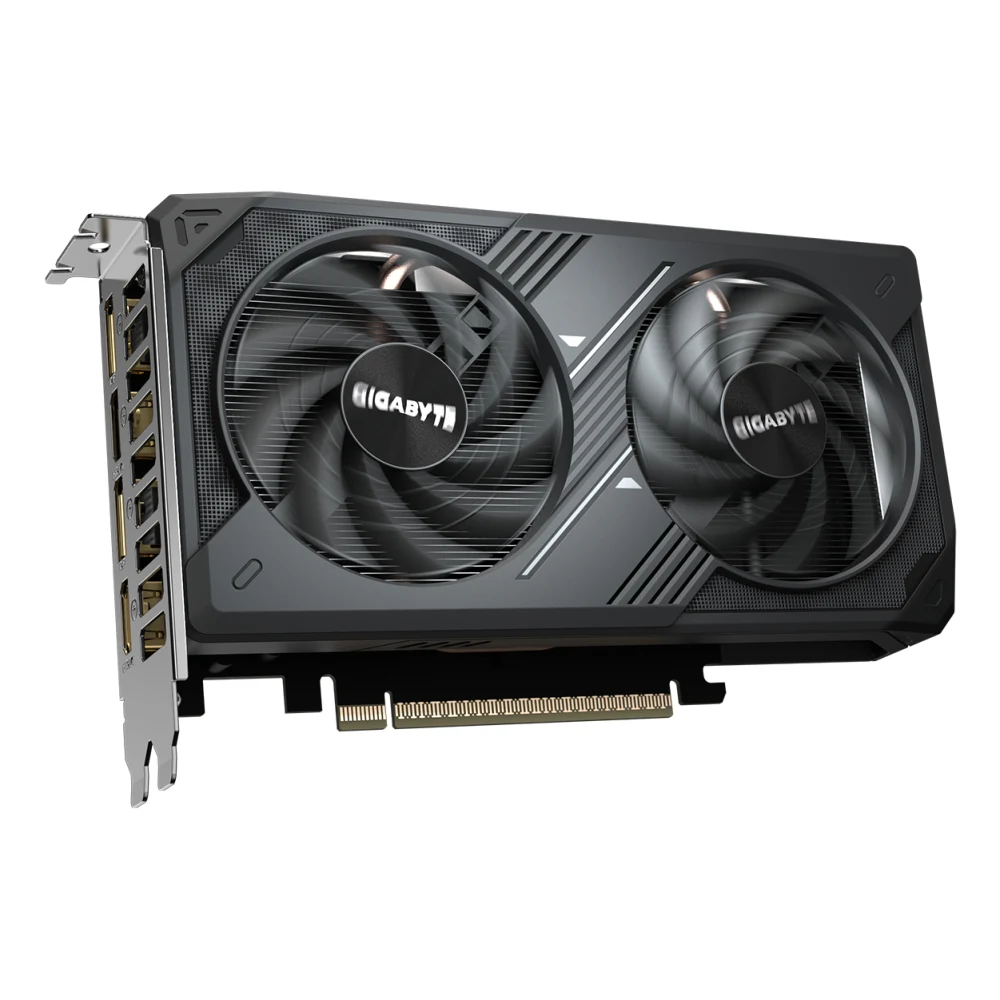

Gigabyte NVIDIA GeForce RTX 5050 WINDFORCE OC 8GB, GDDR6 Graphics Card, 2560 Cuda Core, 2587MHz Core Clock, Windforce cooling system, Dual Fan, 2x DisplayPorts / 2x HDMI Ports
Gigabyte NVIDIA GeForce RTX 5050 WINDFORCE OC 8GB, GDDR6 Graphics Card, 2560 Cuda Core, 2587MHz Core Clock, Windforce cooling system, Dual Fan, 2x DisplayPorts / 2x HDMI Ports
Description
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications
Graphics Processing
GeForce RTX 5050
Core Clock
2587 MHz (Reference card : 2572MHz)
CUDA Cores
2560
Memory Clock
20 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=199 W=116 H=40 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
550W
Power Connectors
8 Pin*1
Output
DisplayPort 2.1b *2
HDMI 2.1b *2
Accessories
Quick guide
Brand: GIGABYTE
Category: Graphics Cards
EAN: 4719331356743
Manufacturer Code: GV-N5050WF2OC-8GD
