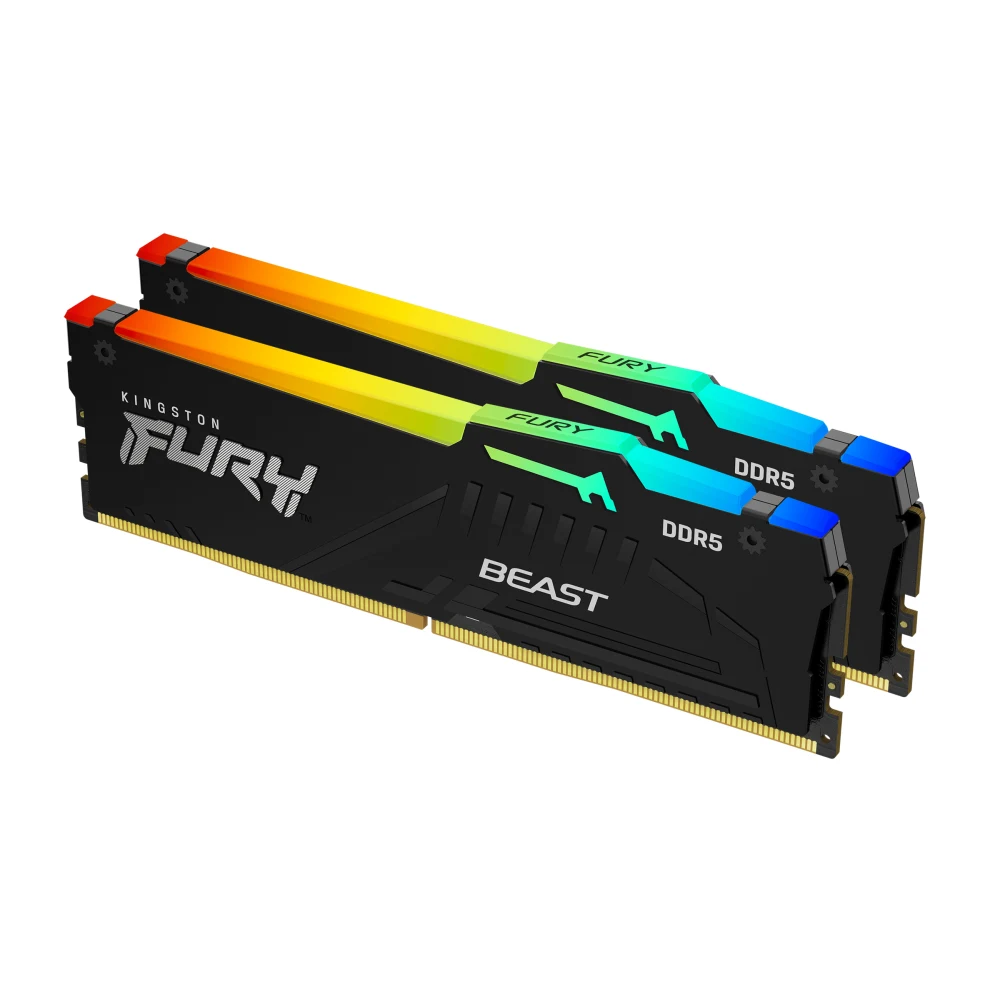

Kingston FURY Beast KF560C30BBEAK2-64 64GB (2x 32GB) DIMM System Memory, 6000MHz, DDR5, CL30, Black, RGB, Intel XMP, AMD EXPO
Kingston FURY Beast KF560C30BBEAK2-64 64GB (2x 32GB) DIMM System Memory, 6000MHz, DDR5, CL30, Black, RGB, Intel XMP, AMD EXPO
Description
Description
Kingston FURY KF560C30BBEAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD EXPO v1.1 and Intel Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical andmechanical specifications are as follows
features
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
Height 1.37” (34.9mm), w/heatsink
Specifications
Memory Capacity
64GB Kit (32GB x2)
Module Quantity
2 Modules
Speed (Data Rate)
6000MT/s (PC5-48000)
Speed (Clock Rate)
3000Mhz
Module Type
DIMM
Error Check
Non-ECC
Model/Series/Type
Fury Beast
CAS Latency
CL36
Form Factor
DDR5
CL(IDD)
40 Cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0C to +85C
Storage Temperature
-55C to +100C
SKU
KF560C36BBEAK2-64
EAN/UPC Code
740617331882
Brand
Kingston
Rank
2R
Warranty
Lifetime
Pins
288 Pin
Key Features
- Form Factor: DIMM
- DDR Type: DDR5
- Speed: 6000Mhz
- Capacity: 64GB (2x 32GB)
- RGB: Yes
Supplier Category: Memory
Manufacturer Code: KF560C30BBEAK2-64
EAN: 0740617342819
Weight (KG): 0.1
VAT Rate: 20%
Overview
Kingston FURY Beast KF560C30BBEAK2-64 64GB (2x 32GB) DIMM System Memory, 6000MHz, DDR5, CL30, Black, RGB, Intel XMP, AMD EXPO is listed under manufacturer code KF560C30BBEAK2-64. It sits within the Memory / RAM category. DCS Components can help source this item as part of a quote-led procurement request.
Key product details
- Manufacturer code: KF560C30BBEAK2-64
- Category: Memory / RAM
- EAN: 0740617342819
Procurement and setup support
DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
Available Buying Options
Multiple purchasing options may be available for this product. In-stock and best-value options are shown first. DCS can help review the right option for availability, setup, deployment and support.
Manufacturer Ref: KF560C30BBEAK2-64
Low Stock
