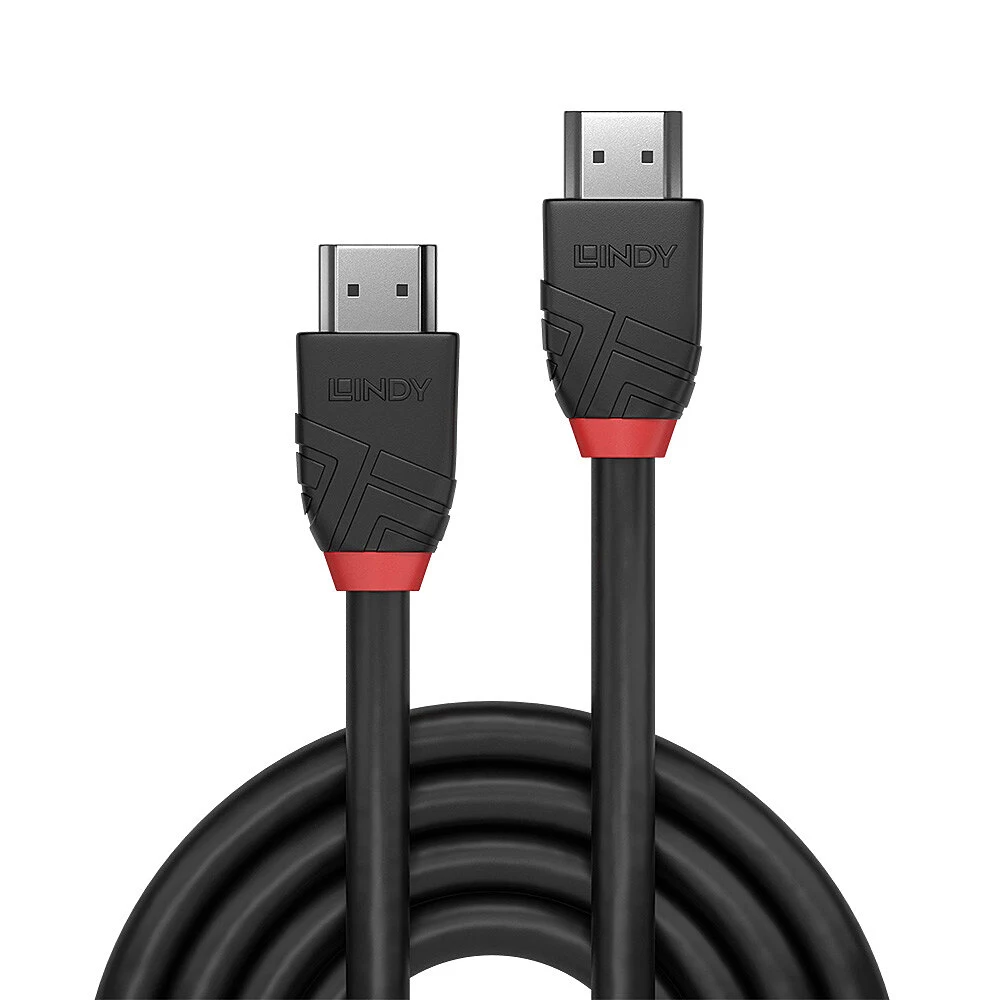

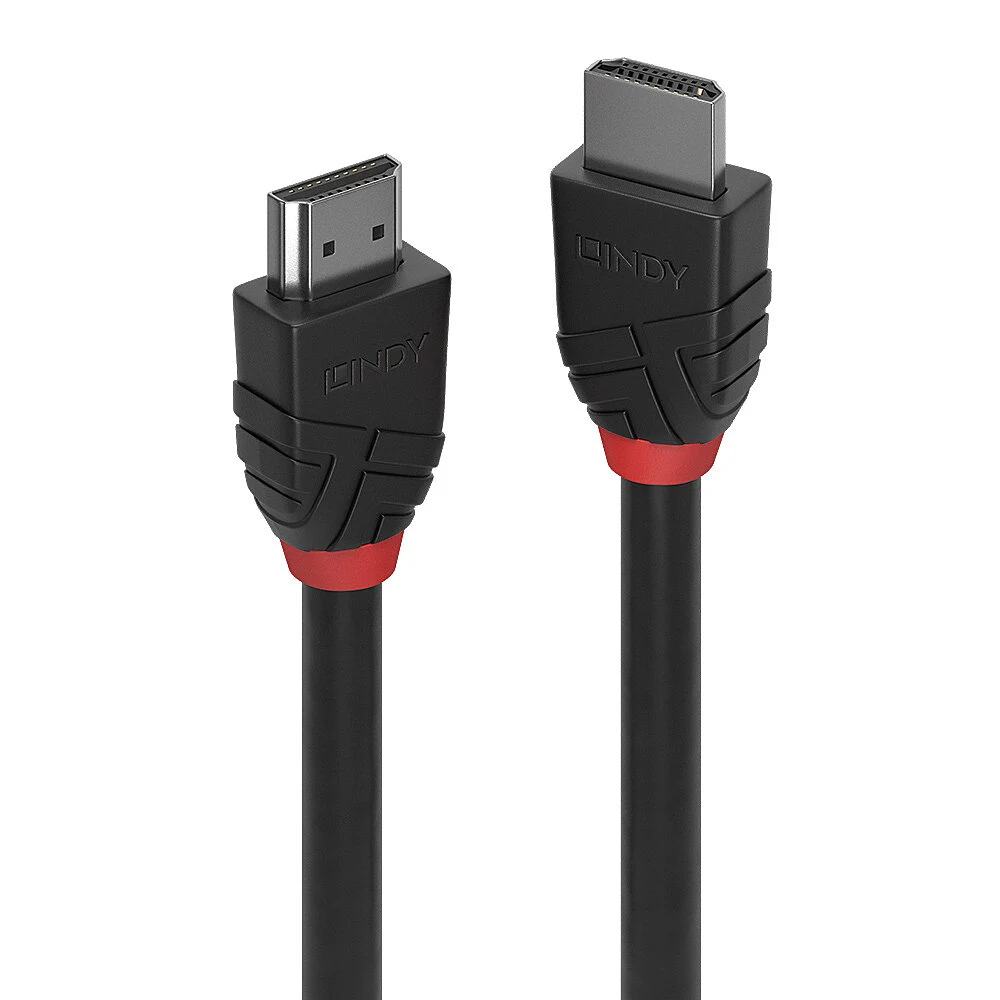

Lindy 36772 2m 8K60Hz HDMI Cable, Black Line
Lindy 36772 2m 8K60Hz HDMI Cable, Black Line
Description
Key Features
Entry level High Speed HDMI 2.1 cable for home and small office applications
Supports UHD resolutions up to 7680x4320@60Hz 4:4:4 10bit
Robust PVC housing, nickel connectors, gold flashed contacts
Triple shielded cable, corrosion resistant copper coated steel 30AWG conductors
Supports 3D, 8K, 48Gbps, HEC, ARC, EARC CEC, Dolby® True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X;
10 year warranty
From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line 8k60hz or 4K120hz cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 7680x4320@60Hz and 3840x2160@120hz are supported. 8K Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® Atmos and DTS:X
The 8K Black line HDMI cable supports 48Gbps bandwidth capacity in cable lengths up to 5m.
Connectors
Connector A
HDMI Type A Male
Connector B
HDMI Type A Male
Housing Material
PVC
Connector Plating
Nickel Plating
Pin Construction
Copper Alloy
Pin Plating
Gold Plated
Dimensions (W x D x H)
20 x 34.2 x 10.9 mm (0.79 x 1.35 x 0.43 in)
Cable Construction
Length
2 m (6.56 ft)
Standard
Ultra High Speed HDMI
Colour
Black
Type
Round
Jacket Diameter
6 mm (0.24 in)
Jacket Material
PVC
Conductor Material
Copper Coated Steel
Conductor Gauge
30AWG
Shielding
Aluminum Foil
Technical Information
Supported Bandwidth
48Gbps
Maximum Resolution
7680 x 4320@60Hz 4:4:4,10bit
Nominal Attenuation
35GHz>-5.5dB(HBR1)
2.7GHz>-8.5dB(HBR2)
4.05GHz>-11.0dB(HBR3)
Minimum Bend Radius
70 mm
Operating Temperature
-10°C - 80°C (14°F - 176°F)
Storage Temperature
-20°C - 85°C (-4°F - 185°F)
Miscellaneous
Packaging Type
Polybag
Warranty (Years)
10
Product Compliance
RoHS & REACH UL
Brand: LINDY
Category: Cables
EAN: 4002888367721
Manufacturer Code: 36772
Overview
Lindy 36772 2m 8K60Hz HDMI Cable, Black Line is listed under manufacturer code 36772. It sits within the Display Cables & Adapters category. DCS Components can help source this item as part of a quote-led procurement request.
Key product details
- Manufacturer code: 36772
- Category: Display Cables & Adapters
- EAN: 4002888367721
Procurement and setup support
DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
Available Buying Options
Multiple purchasing options may be available for this product. In-stock and best-value options are shown first. DCS can help review the right option for availability, setup, deployment and support.
Manufacturer Ref: 36772
In Stock
