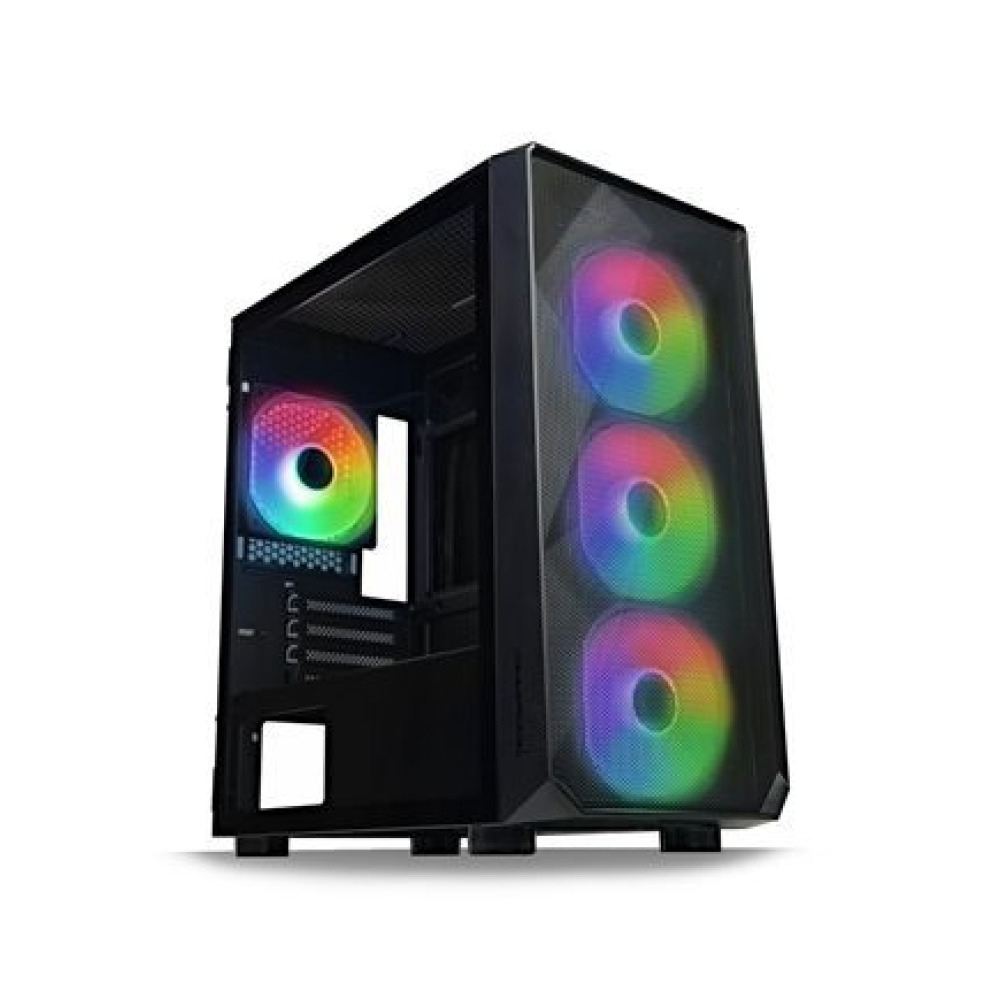

Presenting the Tecware Forge M Omni (TWCA-FORGEM-BKOL) — a sleek and secure micro-ATX chassis ideal for gamers, builders, and professionals alike. It brings together a high-airflow mesh design, tempered glass showcase, and key-lockable side panel for both aesthetics and peace of mind. Pre-installed fans ensure optimal cooling straight out of the box, with additional expansion support for future upgrades.

Physical & Structural
Model:
TWCA-FORGEM-BKOL (Forge M Omni, key-lockable)

Form Factor:
MicroATX & Mini-ITX compatible

Weight:
Around 4.9 kg

Construction Materials:
Polyhedral mesh front for airflow, tempered glass side panel (hinged and key lockable), top magnetic filter, bottom PSU filter, and 22 mm cable management space

Cooling & Fans
Included fans:
4 x 120 mm black fans (3 at the front intake, 1 at the rear exhaust)

Fan capacity:
Supports up to 6 fans total (front, top, rear)

Airflow design:
Full mesh front and multiple vents ensure high air intake and efficient thermal performance

Motherboard & Internal Clearance
Motherboard support:
Micro ATX and Mini ITX

GPU clearance:
Up to approximately 315 mm in length

CPU cooler clearance:
Up to approximately 160 mm

PSU compatibility:
Supports PSUs up to ~180 mm length (with HDD cage)

Drive Bays & Expansion
Drive bay configuration:
1 x 3.5 internal
1 x 3.5/2.5 removable cage
2 x 2.5 (mounted)

Expansion slots:
7 x PCIe slots

Front I/O
Ports:
2 x USB 3.0 SuperSpeed ports
HD Audio (headphone/microphone combo)

Radiator & Cooling Support
Radiator support:
Front: 120 mm / 240 mm
Rear: 120 mm
Top: 120 mm / 240 mm (if fans not installed)

Security & Design Features
Key-lockable tempered glass side panel:
Enhances physical security while granting easy access via hinge mechanism

Maintenance features:
Magnetic top dust filter and bottom PSU filter for easy cleaning

Cable management:
22 mm routing space for clean internal layout

Drive Bays
1 x 3.5
1 x 3.5/2.5
2 x 2.5

Included Fans
4 x 120 mm (3 front, 1 rear)

Max Fans Supported
Up to 6 fans

Radiator Support
Front: 120/240 mm; Top: 120/240 mm; Rear: 120 mm

I/O Ports
2 x USB 3.0, HD Audio

Security Feature
Hinged tempered glass with key lock

Filters
Magnetic top + bottom PSU filters

Cable Management
22 mm space

Dimensions
~379 x 205 x 429 mm

Brand: TECWARE

Category: Cases

EAN: 810072523075

Manufacturer Code: TWCA-FORGEM-BKOL

Overview

Tecware Forge M Omni Micro-ATX Case - Key-Lockable Tempered Glass, High-Airflow Mesh Front, 4 x 120mm Fans Pre-Installed, mATX/ITX Support, Black is listed under manufacturer code TWCA-FORGEM-BKOL. It sits within the Cases & Cooling category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: TWCA-FORGEM-BKOL
• Key-Lockable Tempered Glass, High-Airflow Mesh Front, 4 x 120mm Fans Pre-Installed, mATX/ITX Support, Black
• Category: Cases & Cooling
• EAN: 810072523075

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
