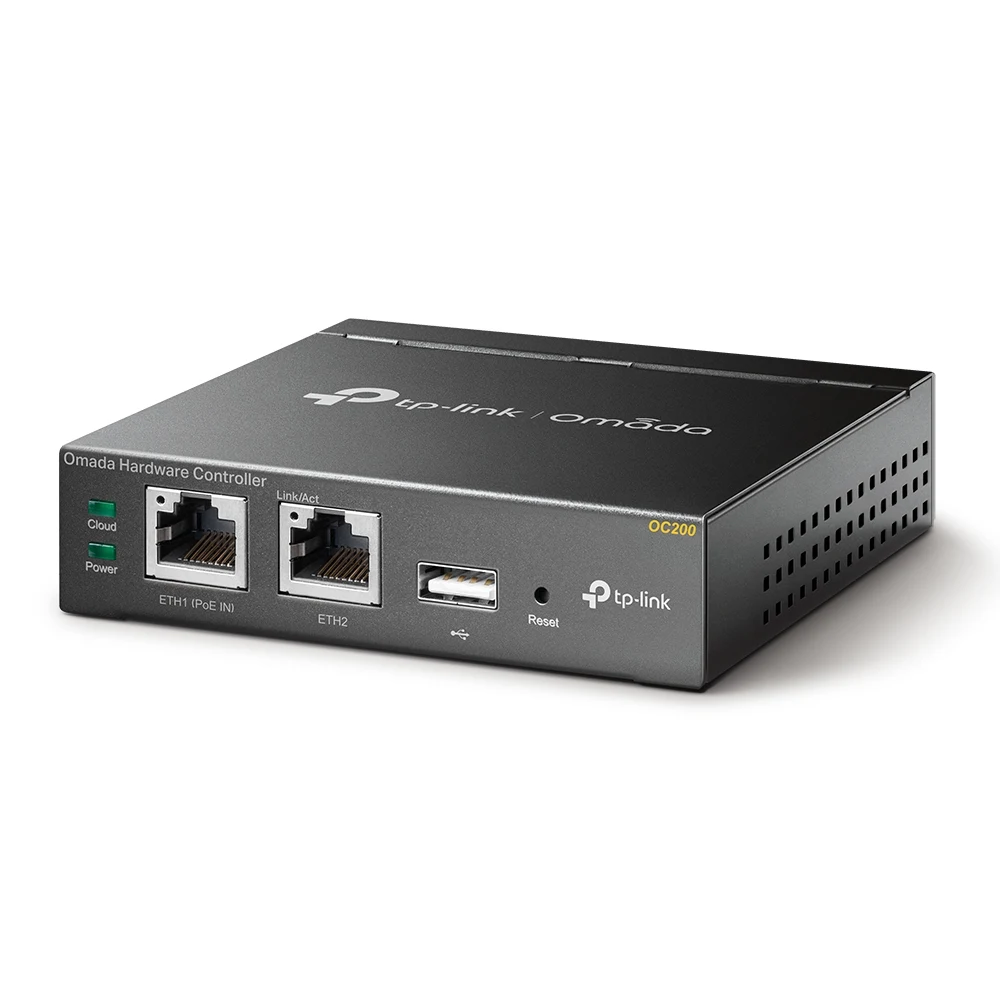

OC200 A Professional Omada SDN Controller with No Need to Run a PC/Server

Key Features
Centralized Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers.
Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.
Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance

Centralized Management for Access Points, Switches, and Routers
OC200, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, JetStream switches, and Omada routers—all controlled from a single interface.

Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC200 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.

Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.

Multiple Factors Guarantee Easier Network Maintenance

WiFi Heatmap Simulator
Generate a Wi-Fi solution by simulating the wireless coverage effect of APs in the actual site. Determine the appropriate number and location of APs according to the coverage requirements.

Visualizable Network Report for Conveniently Summary
Help service providers easily report network service quality to their customers through reports. IT administrators also easily report network operation status through reports.

Batch Management, Multi-Site Management, and Remote Firmware Updates
Improve network maintenance without needing to configure on-site or manage devices one by one.

Powerful Scheduling
Maintain your network easily with more agile and effective processing. No manual tasks required.

Greater Convenience with the Omada App
Remotely access and configure your whole network with a tap of your phone from anywhere in the world.

Specifications

HARDWARE FEATURES

Interface
• 2 x 10/100 Mbps Ethernet Port
• 1 x USB 2.0 Port
• 1 x Micro USB Port

Power Supply
802.3af/at PoE or Micro USB(DC 5V/Minimum 1A)

Dimensions
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)

MANAGEMENT

Omada App
Yes

Centralized Management
• Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
• Up to 1,000 Clients

Note: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the device models supported by OC200

Cloud Access
Yes

L3 Management
Yes

Multi-site Management
Yes

Management Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

OTHERS

Certification
CE, FCC, RoHS

Package Contents
• Omada Hardware Controller OC200
• Quick Installation Guide
• Ethernet Cable

System Requirements
Microsoft Windows10, 8, 7,Vista, XP or MAC OS, NetWare, UNIX or Linux

Environment
• Operating Temperature: 0–40C (32–104F)
• Storage Temperature: -40–70C (-40–158F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Brand: TP-LINK

Category: Networking

EAN: 6935364084233

Manufacturer Code: OC200

Overview

TP-Link Omada OC200 Hardware Cloud Controller is listed under manufacturer code OC200. It sits within the Wireless Controllers category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: OC200
• Category: Wireless Controllers
• EAN: 6935364084233

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
