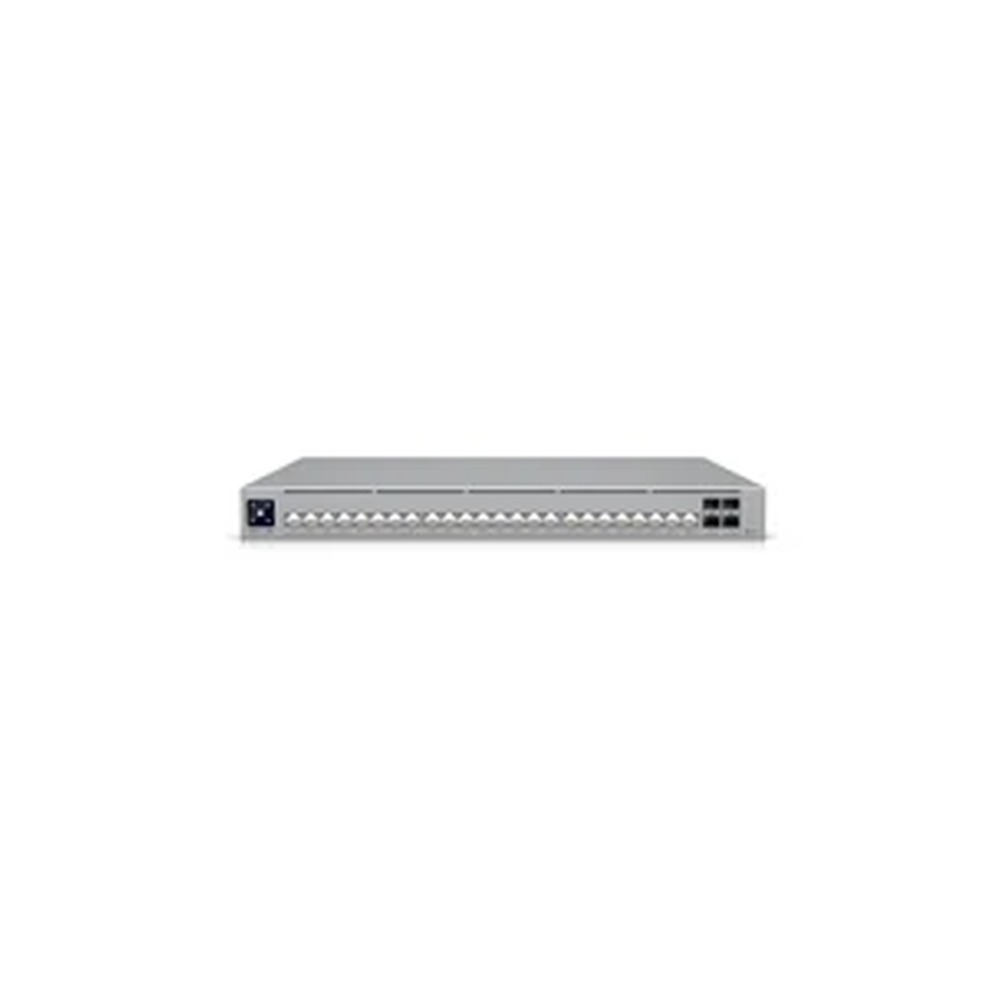

Ubiquiti USW-PRO-HD-24-POE UniFi Switch Pro HD 24 Professional Layer 3 POE++ Managed Switch
Ubiquiti USW-PRO-HD-24-POE UniFi Switch Pro HD 24 Professional Layer 3 POE++ Managed Switch
£1,098.43
Public Price
Add this product to a quote basket for review. DCS can advise on setup, deployment and compatibility.
Quote-led workflow
Add to basket and submit a structured request for commercial review.
Setup and deployment
Ask DCS about configuration, rollout, installation and compatibility.
Managed IT pathway
Connect hardware purchases into support, security and refresh planning.
Best Available Offer
£1,098.43
Low Stock
Brand
UBIQUITI
Category
Managed Switches
Availability
Low Stock
Manufacturer Code
USW-Pro-HD-24-PoE
EAN
0810084696637
Product Information
Description
Professional-grade, Layer 3 Etherlighting switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
Dimensions
442 x 400 x 44 mm
(17.4 x 15.7 x 1.7")
Port Layout
2.5 GbE RJ45
22 (All PoE++)
10 GbE RJ45
2 (All PoE++)
10G SFP+
4
Max. PoE Output
Up to PoE++
Total PoE Availability
600W
Redundancy
DC Power Backup
Layer 3
Yes
Form Factor
Rack mount (1U)
Etherlighting
Yes
Switching Capacity
230 Gbps
Total Non-Blocking Throughput
115 Gbps
Forwarding Rate
171 Mpps
Supported VLANs
1000
MAC Address Table Size
32000
L3 Table Size
ARP Entries
12,000
IPv4 Routes
12,000
Packet Buffer Size
2 MB
DHCP Server (Local Networks)
Yes
DHCP Relay
Yes
Inter-VLAN Routing (Local Networks)
Yes
Static Routing (Local Networks)
Yes
LACP Port Aggregation
Yes
STP & RSTP
Yes
QoS (DSCP)
Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes
IGMP Snooping
Yes
802.1X Control
Yes
MAC-Based ACLs & Device Isolation
Yes
DHCP Snooping & Guarding
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
MAC Address Blocking
Yes
IP-Based ACLs & Network Isolation
Yes
MAC-Based Port Restriction
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
LLDP-MED
Yes
Voice VLAN
Yes
Loop Protection
Yes
PoE Ports
PoE++
24
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
60W (Excluding PoE Output)
660W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC Input
Power Supply
AC/DC, internal, 660W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Weight
Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material
SGCC steel
LCM Display
1.3" touchscreen
Certifications
CE, FCC, IC
Dimensions
442 x 400 x 44 mm
(17.4 x 15.7 x 1.7")
Port Layout
2.5 GbE RJ45
22 (All PoE++)
10 GbE RJ45
2 (All PoE++)
10G SFP+
4
Max. PoE Output
Up to PoE++
Total PoE Availability
600W
Redundancy
DC Power Backup
Layer 3
Yes
Form Factor
Rack mount (1U)
Etherlighting
Yes
Switching Capacity
230 Gbps
Total Non-Blocking Throughput
115 Gbps
Forwarding Rate
171 Mpps
Supported VLANs
1000
MAC Address Table Size
32000
L3 Table Size
ARP Entries
12,000
IPv4 Routes
12,000
Packet Buffer Size
2 MB
DHCP Server (Local Networks)
Yes
DHCP Relay
Yes
Inter-VLAN Routing (Local Networks)
Yes
Static Routing (Local Networks)
Yes
LACP Port Aggregation
Yes
STP & RSTP
Yes
QoS (DSCP)
Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes
IGMP Snooping
Yes
802.1X Control
Yes
MAC-Based ACLs & Device Isolation
Yes
DHCP Snooping & Guarding
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
MAC Address Blocking
Yes
IP-Based ACLs & Network Isolation
Yes
MAC-Based Port Restriction
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
LLDP-MED
Yes
Voice VLAN
Yes
Loop Protection
Yes
PoE Ports
PoE++
24
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
60W (Excluding PoE Output)
660W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC Input
Power Supply
AC/DC, internal, 660W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Weight
Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material
SGCC steel
LCM Display
1.3" touchscreen
Certifications
CE, FCC, IC
Brand: UBIQUITI
Category: Networking
EAN: 0810084696637
Manufacturer Code: USW-Pro-HD-24-PoE
Overview
Ubiquiti USW-PRO-HD-24-POE UniFi Switch Pro HD 24 Professional Layer 3 POE++ Managed Switch is listed under manufacturer code USW-Pro-HD-24-PoE. It sits within the Managed Switches category. DCS Components can help source this item as part of a quote-led procurement request.
Key product details
- Manufacturer code: USW-Pro-HD-24-PoE
- Category: Managed Switches
- EAN: 0810084696637
Procurement and setup support
DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
