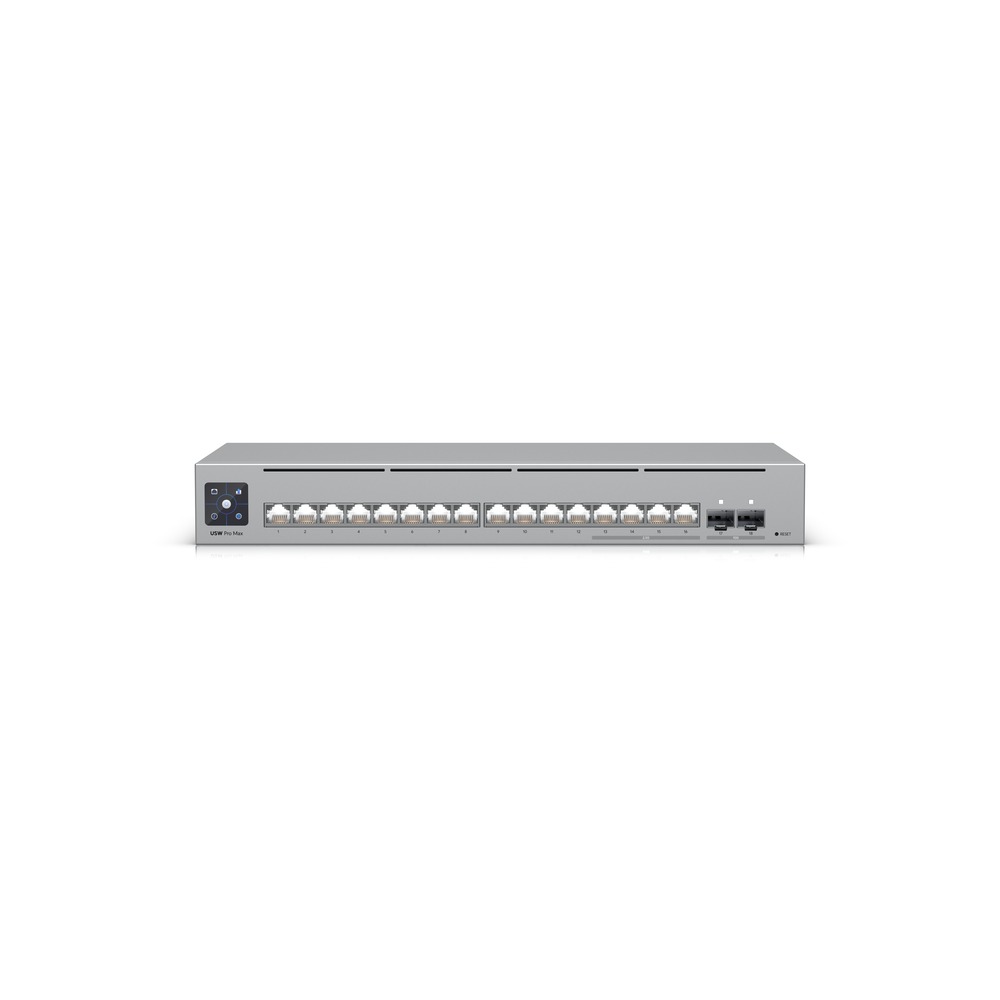

Ubiquiti USW-PRO-MAX-16 UniFi Pro Max 16 Port Gigabit Layer 3 Managed Non-POE Switch
Ubiquiti USW-PRO-MAX-16 UniFi Pro Max 16 Port Gigabit Layer 3 Managed Non-POE Switch
£318.95
Public Price
Add this product to a quote basket for review. DCS can advise on setup, deployment and compatibility.
Quote-led workflow
Add to basket and submit a structured request for commercial review.
Setup and deployment
Ask DCS about configuration, rollout, installation and compatibility.
Managed IT pathway
Connect hardware purchases into support, security and refresh planning.
Best Available Offer
£318.95
Low Stock
Brand
UBIQUITI
Category
Managed Switches
Availability
Low Stock
Manufacturer Code
USW-PRO-MAX-16
EAN
0810084694565
Product Information
Description
A 16-port, Layer 3 Etherlighting switch 2.5 GbE and versatile mounting options.
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network
(4) 2.5 GbE RJ45 ports
(12) GbE RJ45 ports
(2) 10G SFP+ ports
Versatile desktop, wall, and rack mounting (optional rack mount kit required)
Silent, fanless cooling system
Dimensions
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight
1.95 kg (4.3 lb)
Enclosure Material
SGCC steel
Management Interface
Ethernet In-Band
Networking Interface
(12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
Total Non-Blocking Throughput
42 Gbps
Switching Capacity
84 Gbps
Forwarding Rate
62.496 Mpps
Power Method
Type-C adapter
Power Supply
5V, 25W
Max Power Consumption
25W
LCM Display
(1) 1.3" touchscreen
Button
Factory Reset
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Layer 2 Features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 Features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network
(4) 2.5 GbE RJ45 ports
(12) GbE RJ45 ports
(2) 10G SFP+ ports
Versatile desktop, wall, and rack mounting (optional rack mount kit required)
Silent, fanless cooling system
Dimensions
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight
1.95 kg (4.3 lb)
Enclosure Material
SGCC steel
Management Interface
Ethernet In-Band
Networking Interface
(12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
Total Non-Blocking Throughput
42 Gbps
Switching Capacity
84 Gbps
Forwarding Rate
62.496 Mpps
Power Method
Type-C adapter
Power Supply
5V, 25W
Max Power Consumption
25W
LCM Display
(1) 1.3" touchscreen
Button
Factory Reset
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Layer 2 Features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 Features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Brand: UBIQUITI
Category: Networking
EAN: 0810084694565
Manufacturer Code: USW-PRO-MAX-16
Overview
Ubiquiti USW-PRO-MAX-16 UniFi Pro Max 16 Port Gigabit Layer 3 Managed Non-POE Switch is listed under manufacturer code USW-PRO-MAX-16. It sits within the Managed Switches category. DCS Components can help source this item as part of a quote-led procurement request.
Key product details
- Manufacturer code: USW-PRO-MAX-16
- Category: Managed Switches
- EAN: 0810084694565
Procurement and setup support
DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
