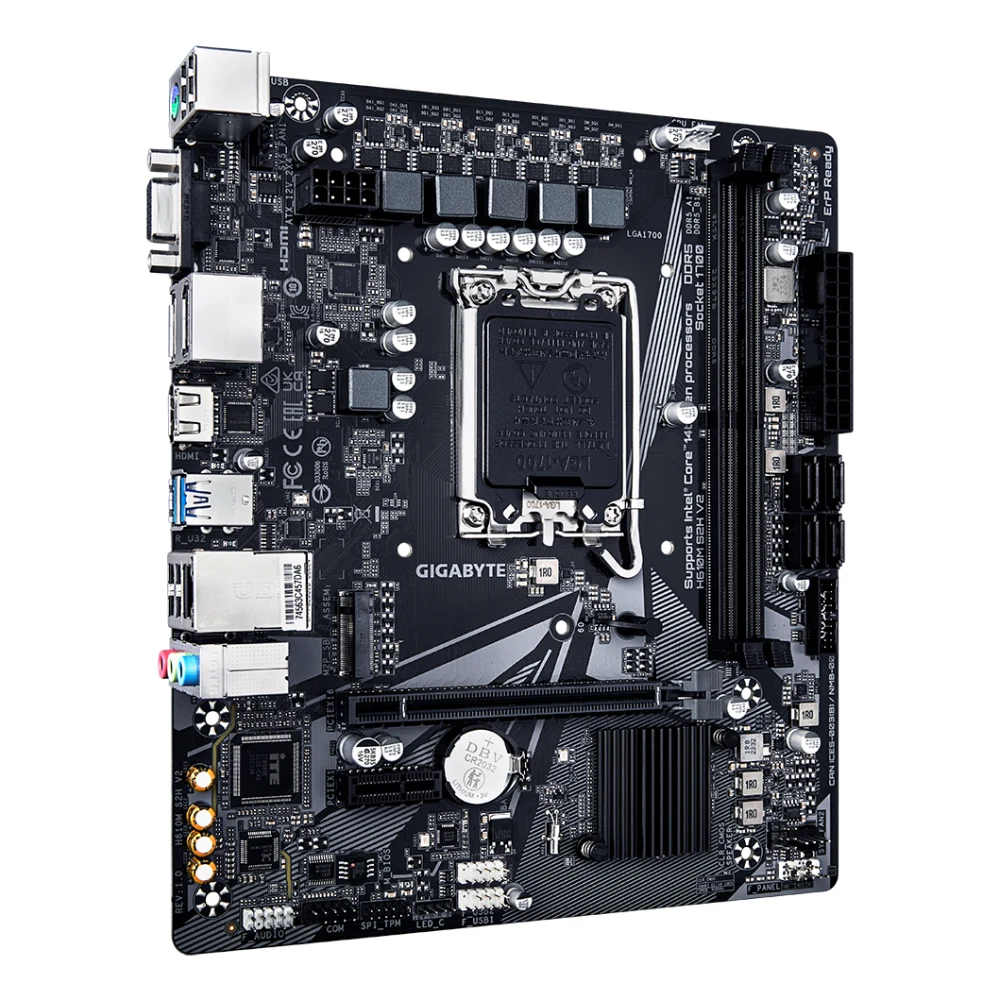

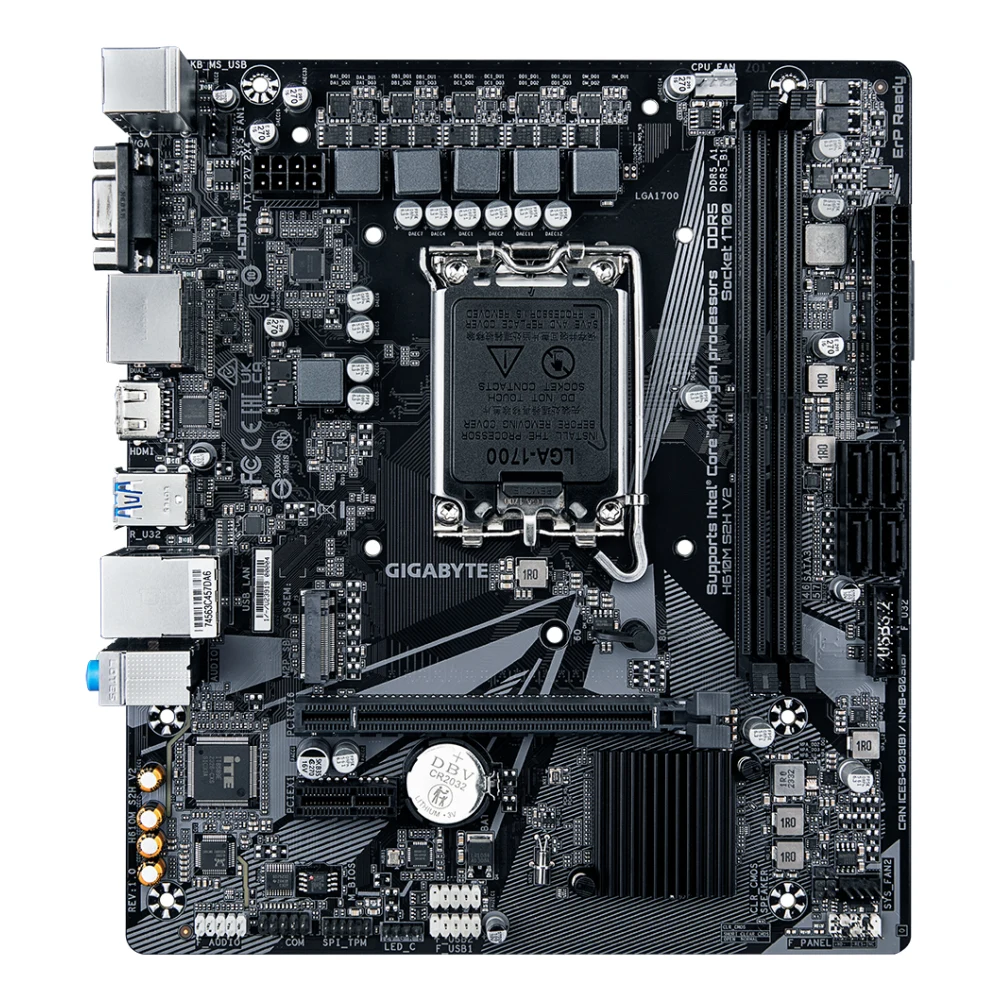

Gigabyte H610M S2H V2 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port
Gigabyte H610M S2H V2 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port
£89.80
Public Price
Add this product to a quote basket for review. DCS can advise on setup, deployment and compatibility.
Quote-led workflow
Add to basket and submit a structured request for commercial review.
Setup and deployment
Ask DCS about configuration, rollout, installation and compatibility.
Managed IT pathway
Connect hardware purchases into support, security and refresh planning.
Best Available Offer
£89.80
In Stock
Brand
GIGABYTE
Category
Motherboards
Availability
In Stock
Manufacturer Code
H610M S2H V2
EAN
4719331859817
Product Information
Description
Intel H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, DisplayPort / HDMI / DVI-D/ D-Sub Ports for Multiple Display , Anti-Sulfur Resistor, Smart Fan 6
KEY FEATURES
Supports Intel Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
4+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
2 x DisplayPort / HDMI / D-Sub Ports for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
Actual support may vary by CPU.
SPECIFICATION
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Please refer to "CPU Support List" for more information.
Chipset
Intel H610 Express Chipset
Memory
14th and 13th Generation Intel Core i9/i7 Pocessors:
Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hzjk
Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports.
2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hzj
Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
2 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.3cm x 19.6cm
KEY FEATURES
Supports Intel Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
4+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
2 x DisplayPort / HDMI / D-Sub Ports for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
Actual support may vary by CPU.
SPECIFICATION
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Please refer to "CPU Support List" for more information.
Chipset
Intel H610 Express Chipset
Memory
14th and 13th Generation Intel Core i9/i7 Pocessors:
Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hzjk
Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports.
2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hzj
Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
2 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.3cm x 19.6cm
Brand: GIGABYTE
Category: Motherboards
EAN: 4719331859817
Manufacturer Code: H610M S2H V2
Overview
Gigabyte H610M S2H V2 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port is listed under manufacturer code H610M S2H V2. It sits within the Motherboards category. DCS Components can help source this item as part of a quote-led procurement request.
Key product details
- Manufacturer code: H610M S2H V2
- Category: Motherboards
- EAN: 4719331859817
Procurement and setup support
DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
