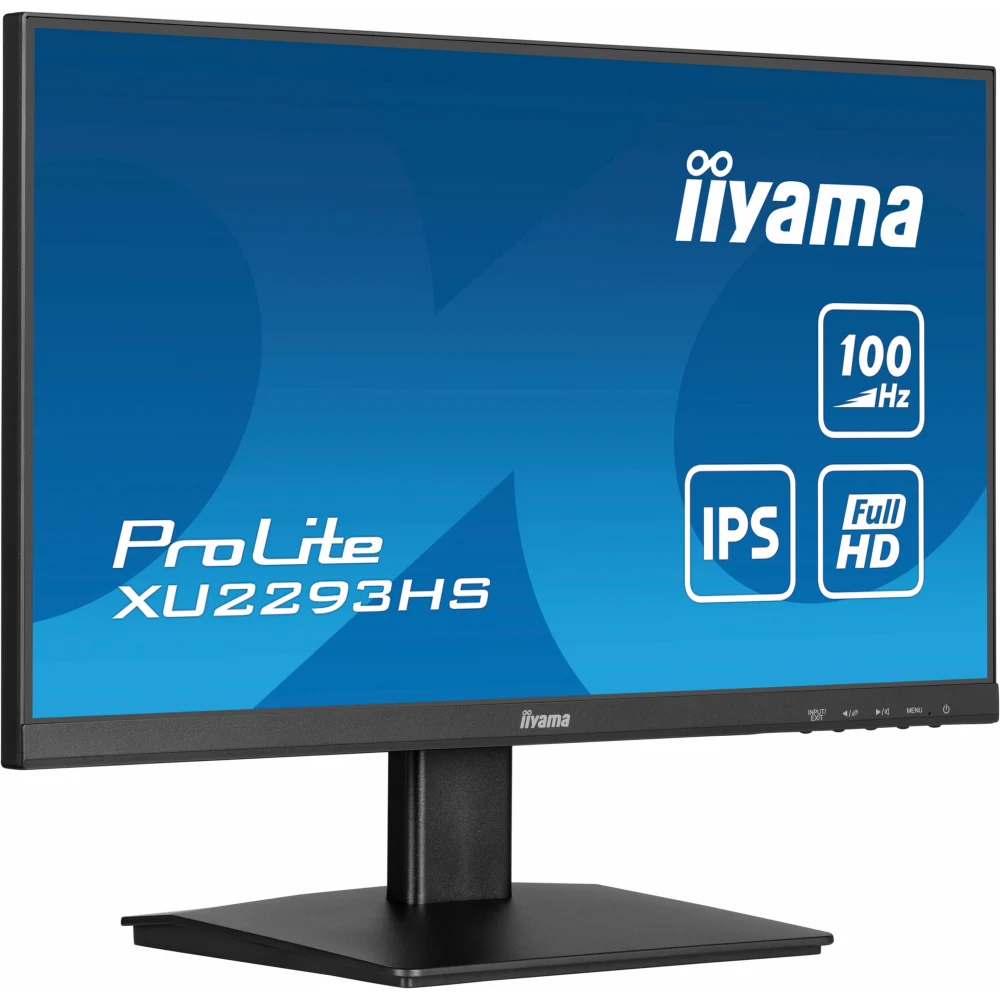

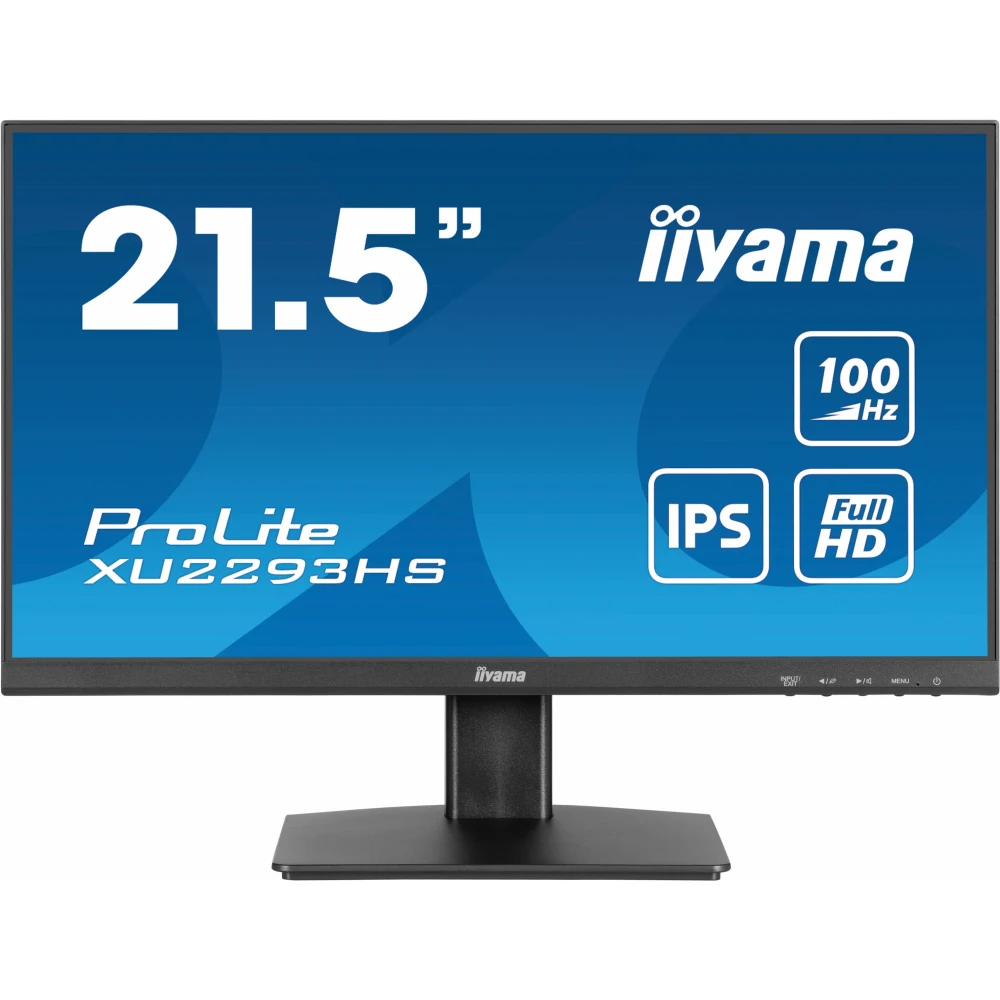

ProLite XU2293HS-B6
21.5 Inch IPS 3-side borderless monitor for multi-monitor set-ups

The stylish edge-to-edge design of the ProLite XU2293HS with IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, headphone socket, HDMI and DisplayPort connections and a blue light reducer function to reduce eye fatigue, this 21.5’’ ProLite display is a great choice for both multi-monitor configuration and office applications.

1MS
Fast response time is key to ultra-smooth gaming. It reduces ghosting and blurring providing the user with an improved graphic performance.

IPS TECHNOLOGY
Covering 100% of the sRGB colour range, this IPS panel provides outstanding colour accuracy and wider viewing angles guaranteeing high-fidelity, vivid battleground scenes.

Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

Specifications

Display

Diagonal
21.5", 54.5cm

Panel
IPS panel technology LED, matte finish

Native resolution
1920 x 1080 @100Hz (2.1 megapixel Full HD)

Aspect ratio
16:9

Panel brightness
300 cd/m²

Static contrast
1000:1

Advanced contrast
80M:1

Response time (MPRT)
1ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln

Horizontal Sync
30 - 110kHz

Viewable area W x H
478.7 x 260.3mm, 18.8 x 10.3"

Pixel pitch
0.249mm

Colour
matte, black

INTERFACES, CONNECTORS, CONTROLS

Signal input
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)

HDCP
yes

Headphone connector
yes

FEATURES

Blue light reducer
yes

Flicker free
yes

Adaptive Sync support
yes

OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL

Control buttons
Power, Menu, Up/Right/Volume, Down/Left/Black Tuner/MBR/AMD FreeSync/Night Mode Button, Input Select/Exit

User controls
picture adjust (contrast, brightness, OD, AC, Eco, black tuner, colour saturation, MBR, AMD FreeSync), input source, audio settings (volume, mute audio), user modes, colour settings (6-Axis, gamma, blue light reducer, colour temperature, user preset), image adjust (i-Style Colour, sharp and soft, RGB range, video mode adjust), language, setup menu (OSD h. position, OSD v. position, OSD time, opening logo, LED), display information, recall

Speakers
2 x 2W

Convenience
Kensington-lock prepared, DDC/CI, DDC2B, Mac OSX

MECHANICAL

Display position adjustments
tilt

Tilt angle
22° up; 4° down

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power, USB, HDMI

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unitinternal

Power supply
AC 50 - 60V, 100/240Hz

Power usage
17W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

WEIGHT & DIMENSIONS
Product dimensions W x H x D492 x 359 x 178mm
Box dimensions W x H x D564 x 380 x 122mm
Weight (without box)2.6kg
Weight (with box)3.6kg

Brand: IIYAMA

Category: Monitors

EAN: 4948570124244

Manufacturer Code: XU2293HS-B6

Overview

iiyama PROLITE XU2293HS-B6 22 inch IPS Monitor, Full HD, 1ms, HDMI, DisplayPort, Freesync, 100Hz, Speakers, Black, Internal PSU, VESA is listed under manufacturer code XU2293HS-B6. It sits within the Monitors category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: XU2293HS-B6
• Category: Monitors
• EAN: 4948570124244

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
