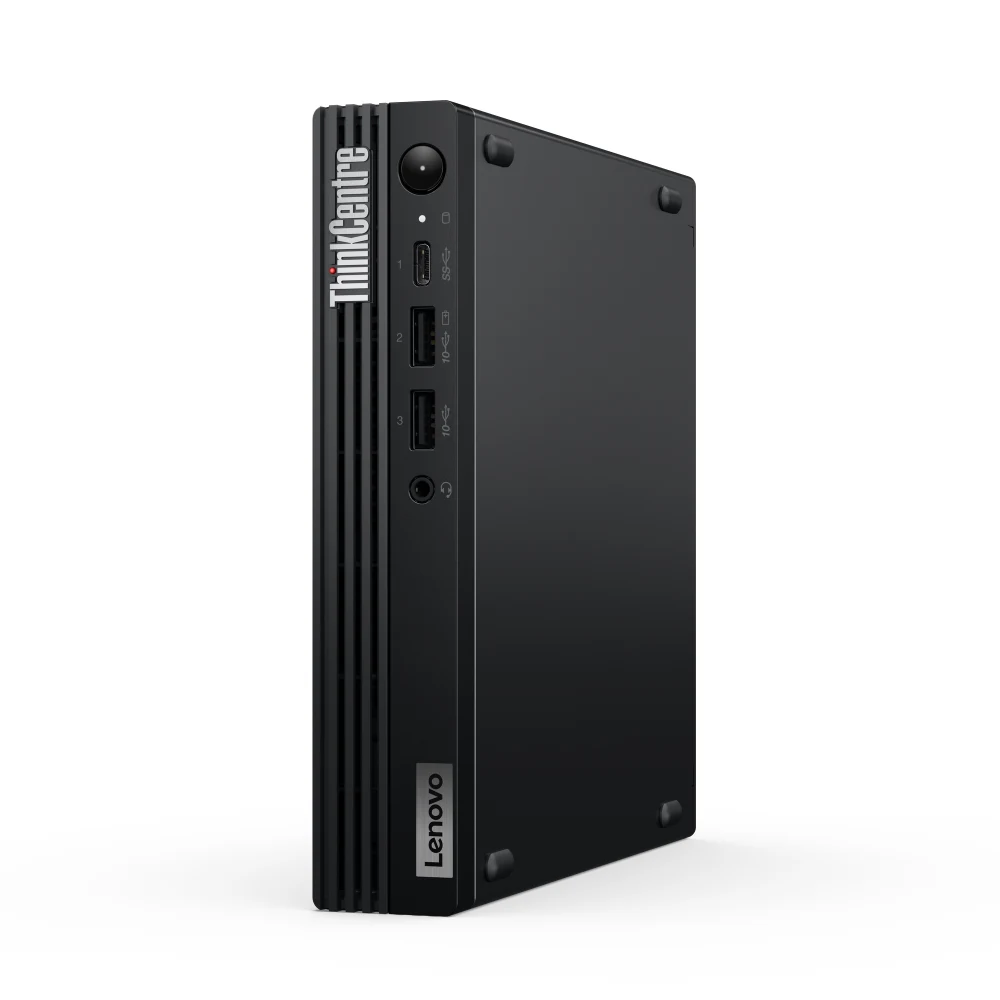

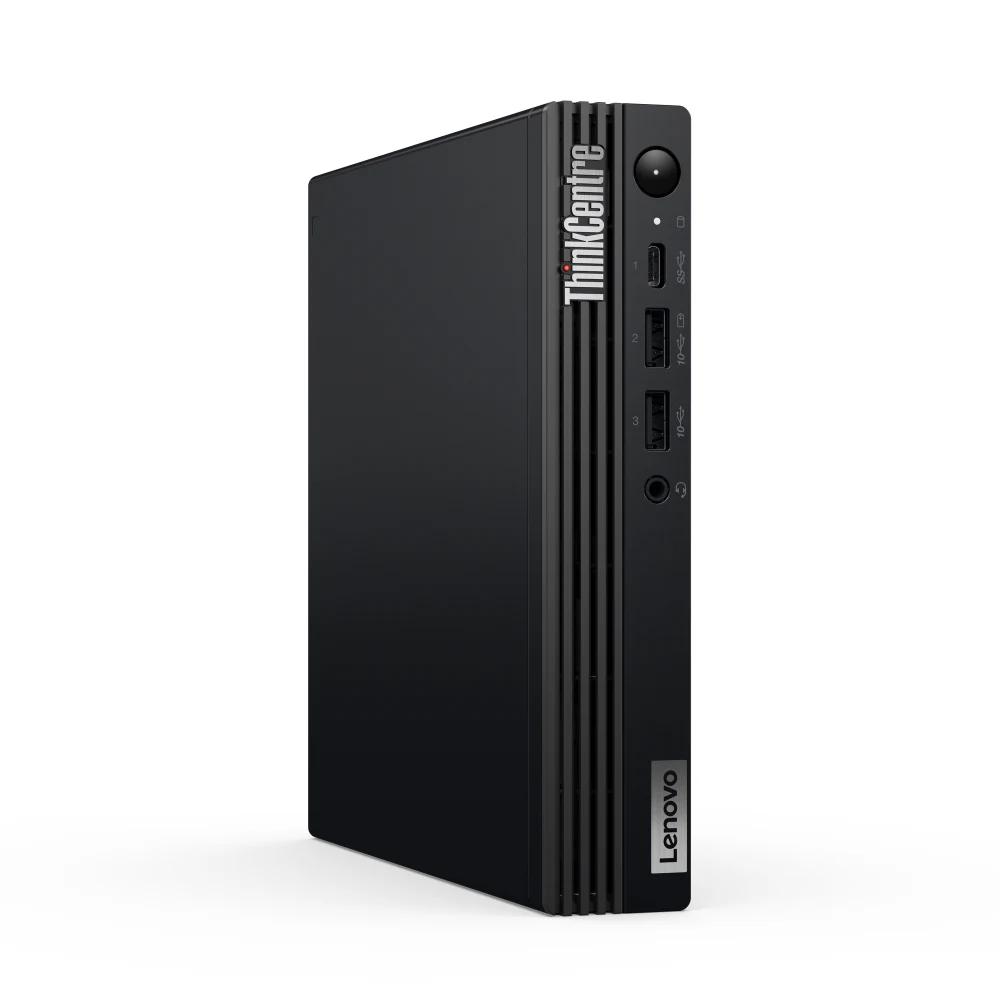

Lenovo ThinkCentre M70q G5 12TD003QUK Tiny PC, Intel Core i5-14400T 14th Gen, 8GB DDR5 RAM, 256GB SSD, Intel UHD Graphics 730, Windows 11 Pro with Keyboard and Mouse
Lenovo ThinkCentre M70q G5 12TD003QUK Tiny PC, Intel Core i5-14400T 14th Gen, 8GB DDR5 RAM, 256GB SSD, Intel UHD Graphics 730, Windows 11 Pro with Keyboard and Mouse
Description
Product Type
Desktop PC
Form Factor
Tiny (1L)
Case Colour
Black
Mounting
VESA Mount
OPERATING SYSTEM
Operating System
Windows® 11 Pro, English
PROCESSOR
Processor
Intel® Core™ i5-14400T (10 cores: 6 Performance + 4 Efficient, 16 threads)
P-core: 1.5 / 4.5 GHz
E-core: 1.1 / 3.2 GHz
20 MB Intel® Smart Cache
Chipset
Intel® Q670
GRAPHICS
Graphics
Integrated Intel® UHD Graphics 730
MEMORY
Memory
8 GB DDR5-4800 (1 x 8 GB SODIMM)
Memory Slots
2 x DDR5 SODIMM slots (dual-channel supported)
Maximum Memory
Up to 64 GB (2 x 32 GB DDR5)
STORAGE
Storage
256 GB M.2 2280 PCIe® 4.0 x4 NVMe® SSD (Opal)
Maximum Storage Support
Dual SSD mode:
Up to 2 x M.2 SSD
M.2 2280 SSD up to 2 TB each
RAID Preset
None
Card Reader
None
Optical Drive
None
AUDIO
Audio Chip
High Definition (HD) Audio
Realtek® ALC233VB or Conexant CX11771 codec
Speakers
2 W x 1
INPUT DEVICES
Keyboard
USB Traditional Keyboard, Black, UK English
Mouse
USB Calliope Mouse, Black
EXPANSION
Expansion Slots
3 x M.2 slots (1 for WLAN, 2 for SSD)
PORTS
Front Ports
1 x USB-C® (USB 5 Gbps / USB 3.2 Gen 1) with 5V / 0.9A charging
1 x USB-A (USB 10 Gbps / USB 3.2 Gen 2) with Always On and 5V / 2.1A charging
1 x USB-A (USB 10 Gbps / USB 3.2 Gen 2)
1 x Headphone / microphone combo jack (3.5 mm)
Rear Ports
1 x USB-A (USB 2.0) with smart power-on
1 x USB-A (USB 5 Gbps / USB 3.2 Gen 1)
2 x USB-A (USB 10 Gbps / USB 3.2 Gen 2)
1 x HDMI® 2.1 TMDS
1 x DisplayPort™ 1.4a (HBR2, DSC)
1 x Ethernet (RJ-45)
CONNECTIVITY
Wireless
Intel® Wi-Fi® 6E AX211 (802.11ax, 2x2)
Bluetooth
Bluetooth® 5.3
WWAN
Not supported
Ethernet
Integrated 10/100/1000M
SECURITY
Security Chip
Discrete TPM 2.0 (TCG certified, FIPS 140-2 certified)
Fingerprint Reader
None
Physical Security
Kensington Security Slot™ (3 x 7 mm)
Chassis Intrusion Switch
POWER
Power Supply
90 W external adapter (89% efficiency)
DIMENSIONS & WEIGHT
Dimensions (W x D x H)
179 x 182.9 x 36.5 mm (with rubber feet)
Weight
Approximately 1.25 kg
MANAGEABILITY
System Management
Non-vPro®
WARRANTY & SERVICE
Base Warranty
1 Year Onsite
Included Upgrade
3 Year Onsite upgrade from 1 Year Onsite
1 Year Premier Support
CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
CERTIFICATIONS
Environmental Certifications
ENERGY STAR® 8.0
EPEAT™ Silver Registered
ErP Lot 3/7
RoHS compliant
TCO Certified
Military Standard
MIL-STD-810H military-grade testing passed
SOFTWARE
Bundled Software
None
ACCESSORIES
Bundled Accessories
None
Brand: LENOVO
Category: Pre-built systems
EAN: 0198153572076
Manufacturer Code: 12TD003QUK
Overview
Lenovo ThinkCentre M70q G5 12TD003QUK Tiny PC, Intel Core i5-14400T 14th Gen, 8GB DDR5 RAM, 256GB SSD, Intel UHD Graphics 730, Windows 11 Pro with Keyboard and Mouse is listed under manufacturer code 12TD003QUK. It sits within the Desktop PCs category. DCS Components can help source this item as part of a quote-led procurement request.
Key product details
- Manufacturer code: 12TD003QUK
- Category: Desktop PCs
- EAN: 0198153572076
Procurement and setup support
DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
