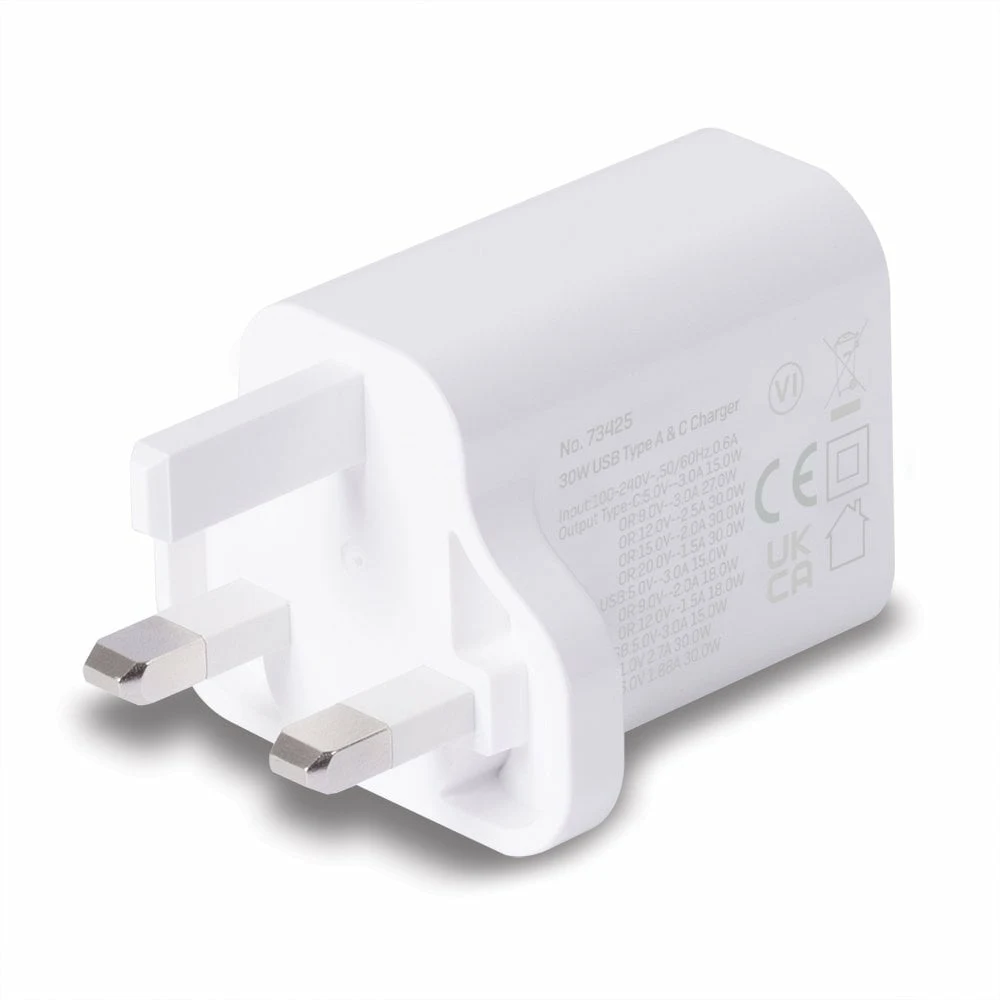

Lindy 30W USB Type A & C PD Charger can charge two devices simultaneously. 30W Power Delivery are supported by the USB Type C port while the USB Type A port provides fast charging with up to 18W. When both ports are used in parallel a maximum power of 15W will be provided.

Featuring both a USB Type C female and a USB Type A female port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 30W, connected devices can be provided with faster charging than what is possible from a standard Type C or A charger supplied with many devices.

For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection. As this charger is rated at Level 6 for efficiency, it also meets the highest current level of energy efficiency standards.

Connectors
Input: UK Plug
Output: 1x USB Type A Female, 1x USB Type C Female
Specifications

Power Input: 100-240VAC, 50/60Hz 0.6A
Power Output
USB Type A: 5V 3A, 9V 2A, 12V 1.5A
USB Type C: 5V 3A, 9V 3A, 12V 2.5A, 15V 2A, 20V 1.5A, PPS33 11V 2.7A, PPS33 16V 1.88A
USB Type A & C: 5V 3A
USB Power Delivery: PD 3.0 (USB Type C port)
Max. Total Power: 30W
Output Voltage Accuracy: ± 5%
Average Active Efficiency: 81.38%
Efficiency at Low Load (10%): 80.06%
No-load Power Consumption: 0.1 W
Additional Features: Overcurrent, overvoltage, overtemperature and short-circuit protection

Physical Properties
Dimensions (approx.) WxDxH: 26.80x85.30x41.60mm (1.05x3.35x1.63in)
Connector Material: Copper
Housing Material: PVC
Net Weight: 0.04kg (0.09lb)
Operating Temperature: 0°C - 25°C (32°F - 77°F)
Operating Humidity: 20 – 90% RH (non-condensing)
Storage Temperature: -20°C - 70°C (-4°F - 158°F)
Storage Humidity: 20 – 90% RH (non-condensing)
Colour: White

Miscellaneous
Packaging Type: Carton Box
Packaging Dimensions: 80x100x45mm (3.15x5.12x1.77in)
Gross Weight: 0.06kg (0.13lb)
Warranty (Years): 2
Product Compliance: CE, RoHS, REACH, ErP, UKCA

Package Contents
30W USB Type A & C PD Charger
Lindy Manual

EAN: 4002888734257

Brand: LINDY

Category: Cables

EAN: 4002888734257

Manufacturer Code: 73425

Overview

LINDY 73425 30W USB Type A & C Charger UK Plug, 3A, Power Delivery 3.0 + PPS, 2 Output Connectors (USB, 24 pin USB-C), White is listed under manufacturer code 73425. It sits within the Laptop Chargers & Power category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: 73425
• Category: Laptop Chargers & Power
• EAN: 4002888734257
