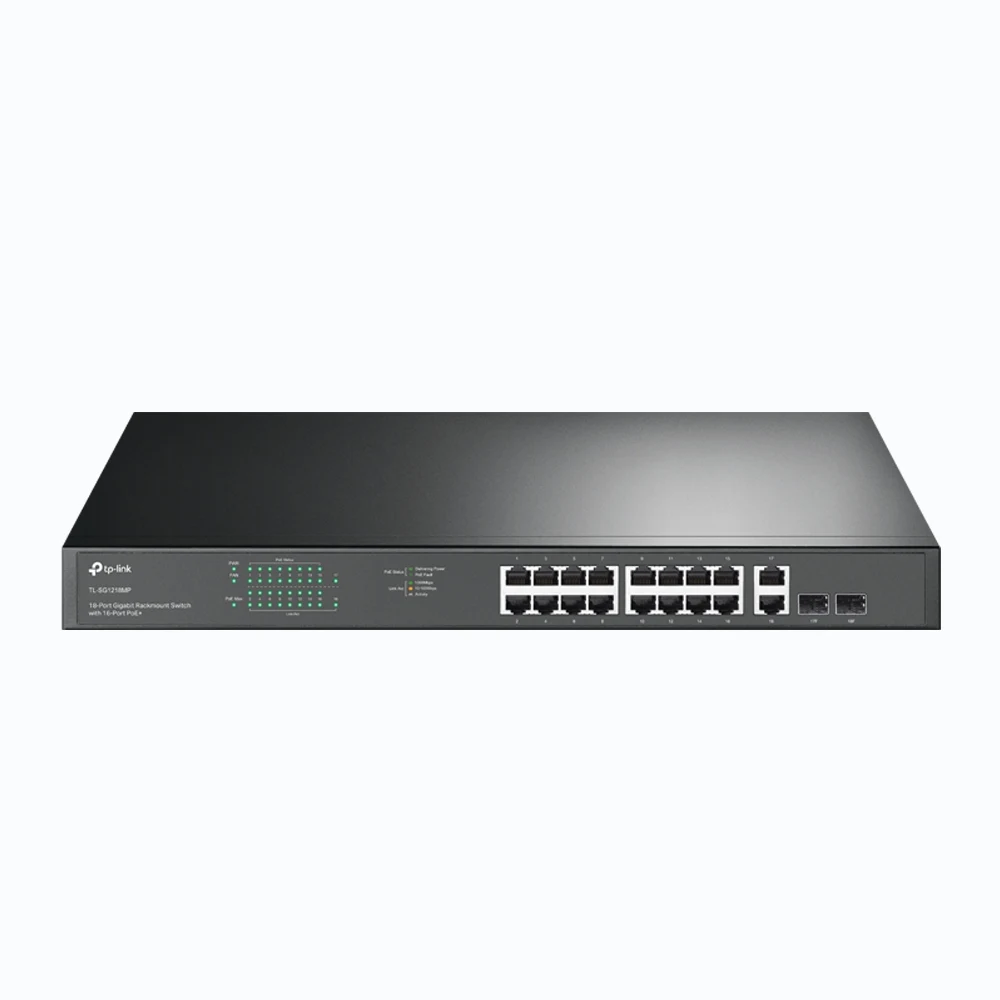

TP-Link TL-SG1218MP 18-Port Metal Gigabit Rackmount PoE Switch with 16 PoE+ (250W)
TP-Link TL-SG1218MP 18-Port Metal Gigabit Rackmount PoE Switch with 16 PoE+ (250W)
£202.88
Public Price
Add this product to a quote basket for review. DCS can advise on setup, deployment and compatibility.
Quote-led workflow
Add to basket and submit a structured request for commercial review.
Setup and deployment
Ask DCS about configuration, rollout, installation and compatibility.
Managed IT pathway
Connect hardware purchases into support, security and refresh planning.
Best Available Offer
£202.88
Low Stock
Brand
TP-LINK
Category
Hubs & Switches
Availability
Low Stock
Manufacturer Code
TL-SG1218MP
EAN
6935364072155
Product Information
Description
18-Port Gigabit Rackmount PoE Switch with 16 PoE+
Key Features
16 x gigabit PoE+ RJ45 ports, 2 x gigabit non-PoE RJ45 ports, and 2x combo gigabit SFP slots
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports
Working with IEEE 802.3af/at compliant PDs
Plug and play, with no configuration and installation needed
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ?)
Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16x gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50?) with reliability.
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface
• 16 x PoE+ gigabit RJ45 ports
• 2 x gigabit non-PoE RJ45 ports
• 2 x combo gigabit SFP slots
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 1000BASE-X MMF, SMF
Fan Quantity
2
Physical Security Lock
Yes
Power Supply
100–240 VAC, 50/60 Hz
PoE+ Ports(RJ45)
• Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• PoE Power Budget: 250 W
Dimensions ( W x D x H )
17.3 x 7.1 x 1.73 in (440 x 180 x 44 mm)
Mounting
Rack Mountable
Max Power Consumption
• 21.4 W (220/50 Hz. no PD connected)
• 286.64 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation
• 72.97 BTU/h (no PD connected)
• 977.44 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity
36 Gbps
Packet Forwarding Rate
26.78 Mbps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• 802.1p/DHCP QoS
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Jumbo Frame
10 KB
OTHERS
Certification
CE, FCC, RoHS
Package Contents
• TL-SG1218MP
• Installation Guide
• Power Cord
• Rackmount Kit
• Rubber Feet
Environment
• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Key Features
16 x gigabit PoE+ RJ45 ports, 2 x gigabit non-PoE RJ45 ports, and 2x combo gigabit SFP slots
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports
Working with IEEE 802.3af/at compliant PDs
Plug and play, with no configuration and installation needed
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ?)
Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16x gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50?) with reliability.
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface
• 16 x PoE+ gigabit RJ45 ports
• 2 x gigabit non-PoE RJ45 ports
• 2 x combo gigabit SFP slots
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 1000BASE-X MMF, SMF
Fan Quantity
2
Physical Security Lock
Yes
Power Supply
100–240 VAC, 50/60 Hz
PoE+ Ports(RJ45)
• Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• PoE Power Budget: 250 W
Dimensions ( W x D x H )
17.3 x 7.1 x 1.73 in (440 x 180 x 44 mm)
Mounting
Rack Mountable
Max Power Consumption
• 21.4 W (220/50 Hz. no PD connected)
• 286.64 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation
• 72.97 BTU/h (no PD connected)
• 977.44 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity
36 Gbps
Packet Forwarding Rate
26.78 Mbps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• 802.1p/DHCP QoS
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Jumbo Frame
10 KB
OTHERS
Certification
CE, FCC, RoHS
Package Contents
• TL-SG1218MP
• Installation Guide
• Power Cord
• Rackmount Kit
• Rubber Feet
Environment
• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Brand: TP-LINK
Category: Networking
EAN: 6935364072155
Manufacturer Code: TL-SG1218MP
