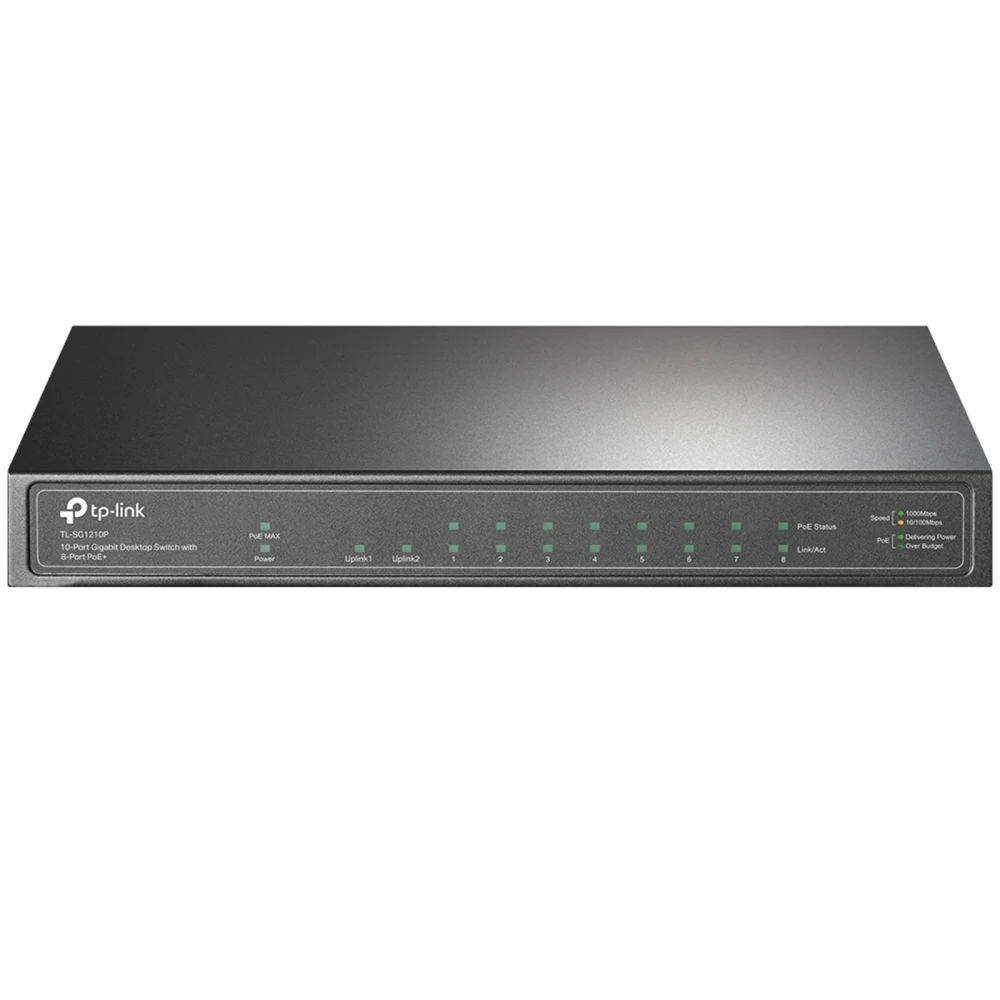

TP-Link TL-SG1210P 10-Port Metal Gigabit Desktop Switch with 8-Port PoE+ (63W)
TP-Link TL-SG1210P 10-Port Metal Gigabit Desktop Switch with 8-Port PoE+ (63W)
Description
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Specifications
HARDWARE FEATURES
Interface:
8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP Slot
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity:
Fanless
Physical Security Lock:
Yes
Power Supply:
External Power Adapter (Output: 53.5VDC / 1.31A)
Backup Bandwidth:
20 Gbps
Packet Forwarding Rate:
14.88 Mpps
PoE+ Ports(RJ45):
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63W
Mac Address Table:
4K
Jumbo Frame:
16 KB
Switching Capacity:
20 Gbps
Dimensions ( W x D x H ):
209 x 126 x 26 mm
Max Power Consumption:
7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected)
Max Heat Dissipation:
24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected)
SOFTWARE FEATURES
Advanced Features:
Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transmission Method:
Store-And-Forward
OTHERS
Certification:
CE, FCC, RoHS
Package Contents:
TL-SG1210P, Power Adapter, Installation Guide
Key Features
- Ports: 10 Ports
- Managed/Unmanaged: Unmanaged
- Speed: 10/100/1000
- PoE capable: Yes
Supplier Category: Networking
Manufacturer Code: TL-SG1210P
EAN: 6935364052997
Weight (KG): 1.35
VAT Rate: 20%
Overview
TP-Link TL-SG1210P 10-Port Metal Gigabit Desktop Switch with 8-Port PoE+ (63W) is listed under manufacturer code TL-SG1210P. It sits within the Hubs & Switches category. DCS Components can help source this item as part of a quote-led procurement request.
Key product details
- Manufacturer code: TL-SG1210P
- Category: Hubs & Switches
- EAN: 6935364052997
Procurement and setup support
DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
Available Buying Options
Multiple purchasing options may be available for this product. In-stock and best-value options are shown first. DCS can help review the right option for availability, setup, deployment and support.
Manufacturer Ref: TL-SG1210P
Low Stock
