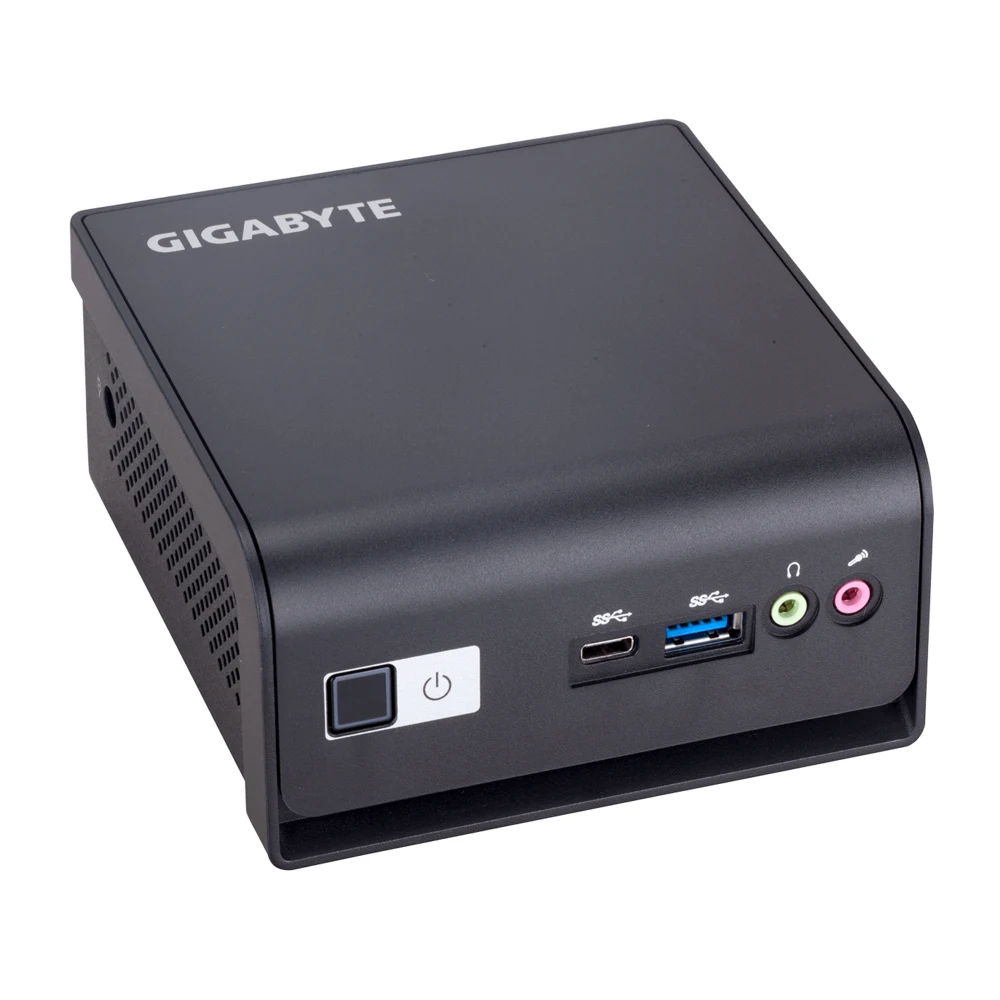

Gigabyte BRIX (GB-BMPD-6005) Barebone Kit, Intel Pentium Silver N6005 2.8GHz Quad Core CPU,1 x DDR4 SO-DIMM Slot, 1 x M.2 2280 Slot, 1 x 2.5 Inch SATA Slot, Dual Band Wi-Fi & Bluetooth 4.2
Gigabyte BRIX (GB-BMPD-6005) Barebone Kit, Intel Pentium Silver N6005 2.8GHz Quad Core CPU,1 x DDR4 SO-DIMM Slot, 1 x M.2 2280 Slot, 1 x 2.5 Inch SATA Slot, Dual Band Wi-Fi & Bluetooth 4.2
£228.72
Public Price
Add this product to a quote basket for review. DCS can advise on setup, deployment and compatibility.
Quote-led workflow
Add to basket and submit a structured request for commercial review.
Setup and deployment
Ask DCS about configuration, rollout, installation and compatibility.
Managed IT pathway
Connect hardware purchases into support, security and refresh planning.
Best Available Offer
£228.72
Low Stock
Brand
GIGABYTE
Category
Cases & Cooling
Availability
Low Stock
Manufacturer Code
GB-BMPD-6005
EAN
4719331600846
Product Information
Description
Intel Pentium Silver and Celeron Processor
BRIX use the newest Intel Pentium Silver and Celeron processors offer amazing video conferencing abilities, faster wireless connectivity, improved overall application and graphics performance, and long battery life.
BRIX with Intel Pentium Silver and Celeron processor family delivers unmatched balance of performance, experience and value for education and entry level computing.
The platform includes ultra-fast Wi-Fi , 4K media support, next-gen Intel UHD Graphics and improvements in security in your choice of platform and OS at a price point for users who want rich experiences at a great value.
Dual Storage Support
New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1x2280), but also can be loaded with a traditional 2.5 inch HDD/SSD as well.
It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.
DDR4 2933MHz Support
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface.
The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.
VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
System Overview
GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors.
It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor.
A gigabit ethernet speed up your internet/intranet connectivity.
SPECIFICATIONS
Dimension
56.22 mm x 103 mm x 116.52 mm (2.21inch x 4.06inch x 4.59inch)
Motherboard Size
105 x 110 mm
CPU
Intel Pentium Processor N6005
2.8GHz, 4 core (TDP 10W)
Memory
1 x SO-DIMM DDR4 slots
2933MHz
Max. 16GB
LAN
Gigabit LAN (Realtek 8111HS)
Wifi Card
Dual Band Wireless-802.11 AC
Graphics
Intel UHD Graphics 605
Audio
Realtek ALC255
HDMI Resolution (Max.)
HDMI2.0a
4096 x 2160 @ 60 Hz
Mini DP Resolution (Max.)
DP1.2a
4096 x 2160 @ 60Hz
Storage
Supports 2.5inch HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
Expansion Slots
1 x M.2 slot (2280_storage) PCIe X2/SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O
1 x USB3.0
1 x USB3.0 type C
1 x Headphone jack
1 x Microphone jack
Rear I/O
1 x HDMI(2.0a)
1 x mini DisplayPort (1.2a)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Power Supply
Input: AC 100-240V
Output: DC 19V
2.1A
VESA
Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS
Win10 64bit
Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
BRIX use the newest Intel Pentium Silver and Celeron processors offer amazing video conferencing abilities, faster wireless connectivity, improved overall application and graphics performance, and long battery life.
BRIX with Intel Pentium Silver and Celeron processor family delivers unmatched balance of performance, experience and value for education and entry level computing.
The platform includes ultra-fast Wi-Fi , 4K media support, next-gen Intel UHD Graphics and improvements in security in your choice of platform and OS at a price point for users who want rich experiences at a great value.
Dual Storage Support
New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1x2280), but also can be loaded with a traditional 2.5 inch HDD/SSD as well.
It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.
DDR4 2933MHz Support
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface.
The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.
VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
System Overview
GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors.
It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor.
A gigabit ethernet speed up your internet/intranet connectivity.
SPECIFICATIONS
Dimension
56.22 mm x 103 mm x 116.52 mm (2.21inch x 4.06inch x 4.59inch)
Motherboard Size
105 x 110 mm
CPU
Intel Pentium Processor N6005
2.8GHz, 4 core (TDP 10W)
Memory
1 x SO-DIMM DDR4 slots
2933MHz
Max. 16GB
LAN
Gigabit LAN (Realtek 8111HS)
Wifi Card
Dual Band Wireless-802.11 AC
Graphics
Intel UHD Graphics 605
Audio
Realtek ALC255
HDMI Resolution (Max.)
HDMI2.0a
4096 x 2160 @ 60 Hz
Mini DP Resolution (Max.)
DP1.2a
4096 x 2160 @ 60Hz
Storage
Supports 2.5inch HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
Expansion Slots
1 x M.2 slot (2280_storage) PCIe X2/SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O
1 x USB3.0
1 x USB3.0 type C
1 x Headphone jack
1 x Microphone jack
Rear I/O
1 x HDMI(2.0a)
1 x mini DisplayPort (1.2a)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Power Supply
Input: AC 100-240V
Output: DC 19V
2.1A
VESA
Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS
Win10 64bit
Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
Key Features
- Processor: Intel Pentium
- Processor Cores: 4
- Memory Type: 1x DDR4
- Max Memory: 16GB
- Storage M.2 Slots: 1
- Storage 2.5 Inch Slots: 1
- VESA: Included
Supplier Category: Pre-built systems
Manufacturer Code: GB-BMPD-6005
EAN: 4719331600846
Weight (KG): 1.01
VAT Rate: 20%
