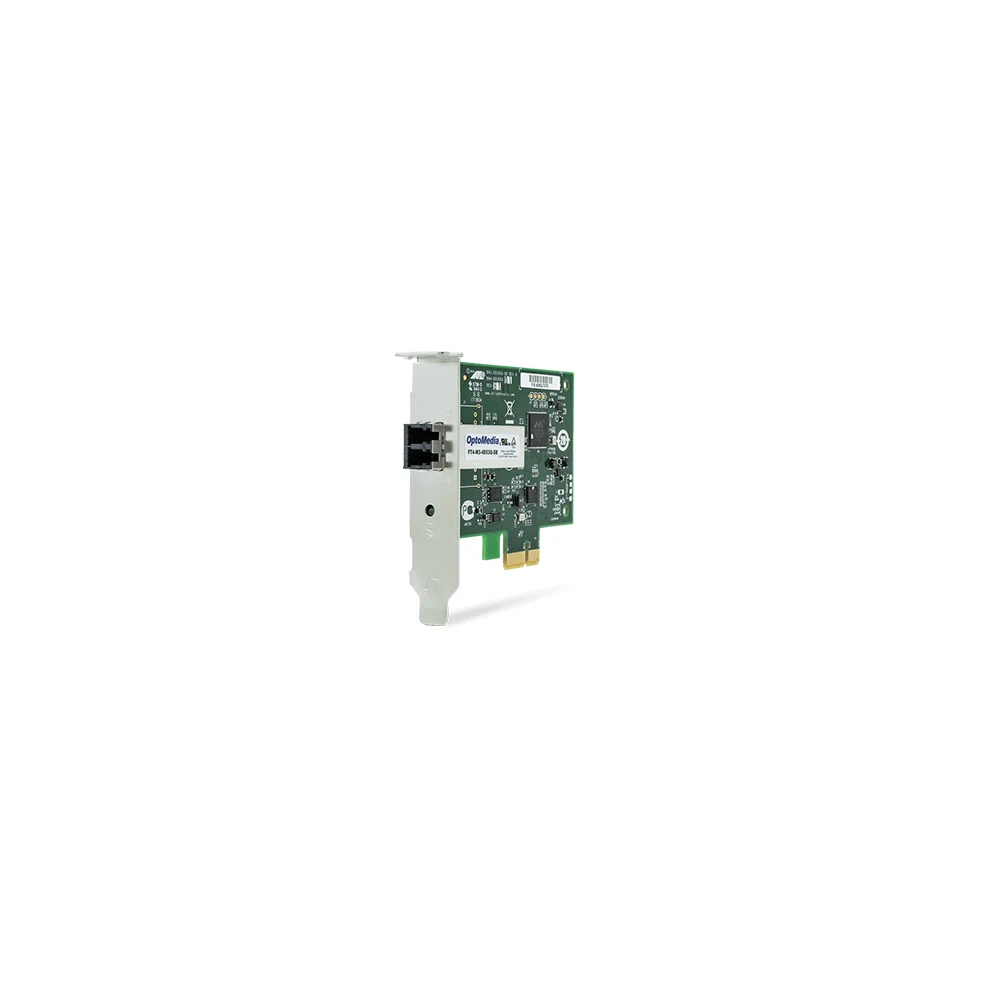

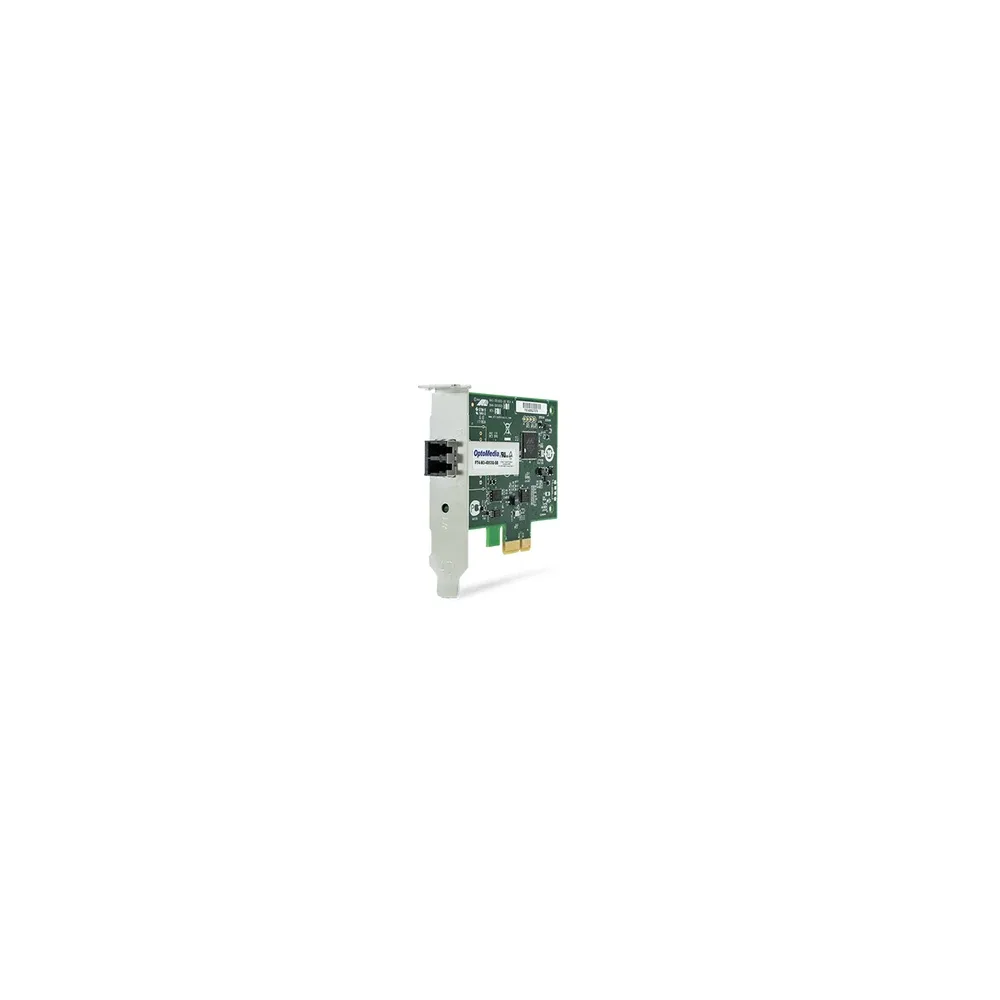

Allied Telesis AT-2914SX/LC - Network adapter - PCI Express x1 - 1000Base-SX x 1 - federal government

Description

PCI Express Gigabit Network Adapters with Wake-on-LAN (WoL) Support

The Allied Telesis 2914SX/LC is a gigabit PCIe x1 network adapter with a fixed LC connector. It supports Wake-on-LAN without the use of an external power supply.

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Fiber ports quantity	2
Fiber optic connector	LC

Network

Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Security algorithms	SNMP
Wake-on-LAN ready	Yes
Jumbo frames support	Yes
Auto-negotiation	Yes
Jumbo frames	9600
Quality of Service (QoS) support	Yes
Load balancing system	Yes

Design

Internal	Yes
LED indicators	Yes
Certification	UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI

Power

Power consumption (typical)	1.5 W

System requirements

Windows operating systems supported	Windows 10, Windows 7
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	88 mm
Height	69 mm
Weight	68 g

Technical details

Compliance certificates	RoHS

Logistics data

Harmonized System (HS) code	85176990

Other features

Flow control support	Yes
