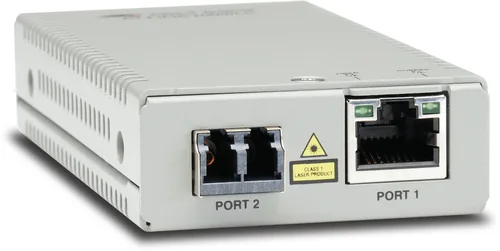

Allied Telesis AT MMC2000/LC - Fibre media converter - 1GbE - 1000Base-T, 100Base-TX, 10Base-T, 1000Base-SX - RJ-45 / 2 x LC multi-mode - up to 500 m - 850 nm

Specifications

Network

Maximum data transfer rate	1000 Mbit/s
Converter input interface	10Base-T, 100Base-T, 1000Base-T
Converter output interface	1000Base-SX
Networking standards	IEEE 802.1Q
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Fiber ethernet cabling technology	1000BASE‑SX
Jumbo frames support	Yes
VLAN support	Yes
Duplex system	Full

Performance

Maximum transfer distance	2000 m
Wavelength	1310 nm
Fiber mode structure	Multi-mode
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Tx power (min)	-20 dBmW
Tx power (max)	-14 dBmW
Rx power (min)	-32 dBmW

Features

Internal	No
LED indicators	Activity, Link
Product colour	Grey

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	2
Fiber optic connector	LC
DC-in jack	Yes

Power

Input voltage	12 V
Input current	0.14 A
Power consumption (typical)	1.7 W
Power over Ethernet (PoE)	Yes

Weight & dimensions

Width	54.9 mm
Depth	101.6 mm
Height	21.8 mm
Weight	170 g

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m

Packaging content

User guide	Yes
Manual	Yes
Quick installation guide	Yes

Certificates

Safety	FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
Certification	CE, EN55024, EN61000-3-2, EN61000-3-3

Logistics data

Harmonized System (HS) code	85176990
