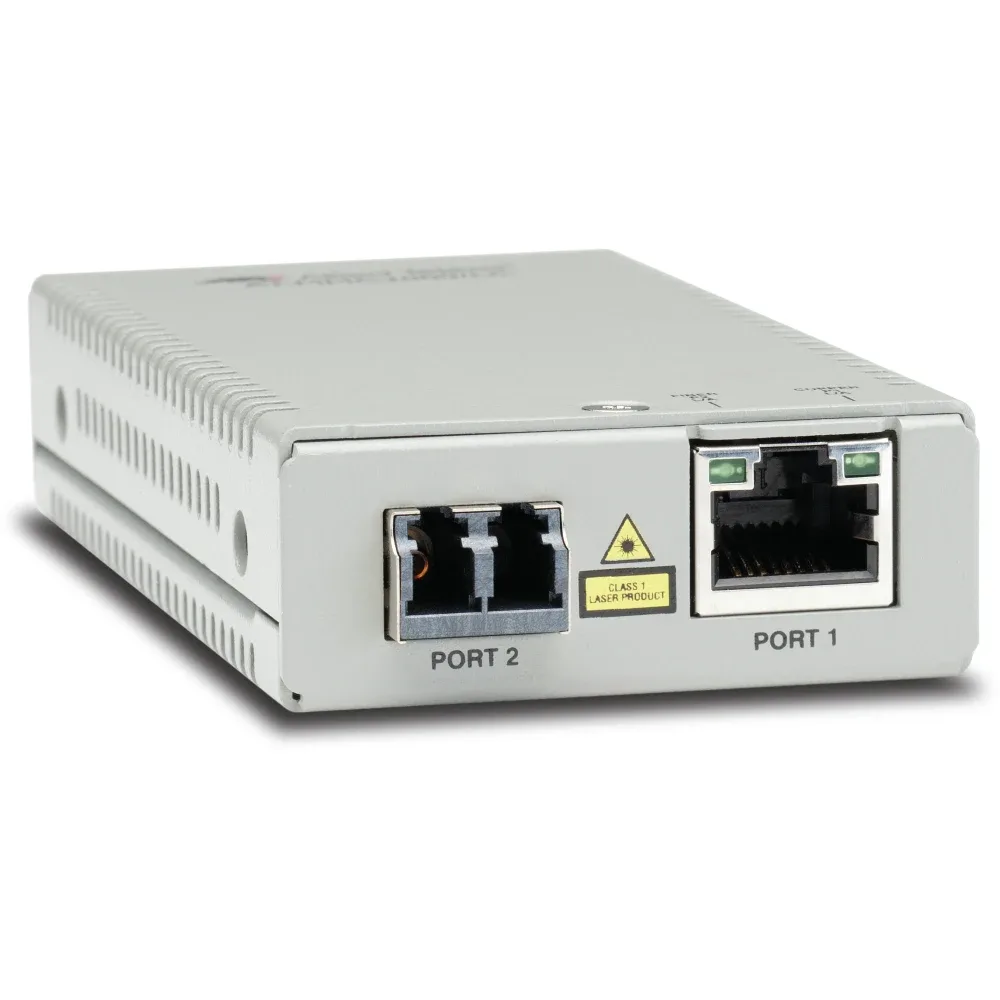

Allied Telesis AT MMC200/LC - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / LC multi-mode - up to 2 km - 1310 nm - TAA Compliant

Specifications

Network

Maximum data transfer rate	100 Mbit/s
Converter input interface	100Base-TX
Converter output interface	100Base-FX
Networking standards	IEEE 802.1Q
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Fiber ethernet cabling technology	1000BASE‑SX
Jumbo frames support	Yes
VLAN support	Yes
Auto MDI/MDI-X	Yes
Store-and-forward	Yes
Duplex system	Full

Performance

Maximum transfer distance	2000 m
Wavelength	1310 nm
Tx power (min)	-20 dBmW
Tx power (max)	-14 dBmW
Rx power (min)	-32 dBmW

Features

Internal	No
LED indicators	Activity, Link
Product colour	Grey

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	2
Fiber optic connector	LC

Power

Input voltage	12 V
Input current	0.14 A
Power consumption (typical)	1.7 W
Power over Ethernet (PoE)	Yes

Weight & dimensions

Width	56 mm
Depth	101.6 mm
Height	21.8 mm
Weight	170 g

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-15 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m

Packaging content

User guide	Yes
Manual	Yes
Quick installation guide	Yes

Certificates

Safety	FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
Certification	CE, EN55024, EN61000-3-2, EN61000-3-3

Logistics data

Harmonized System (HS) code	85176990
