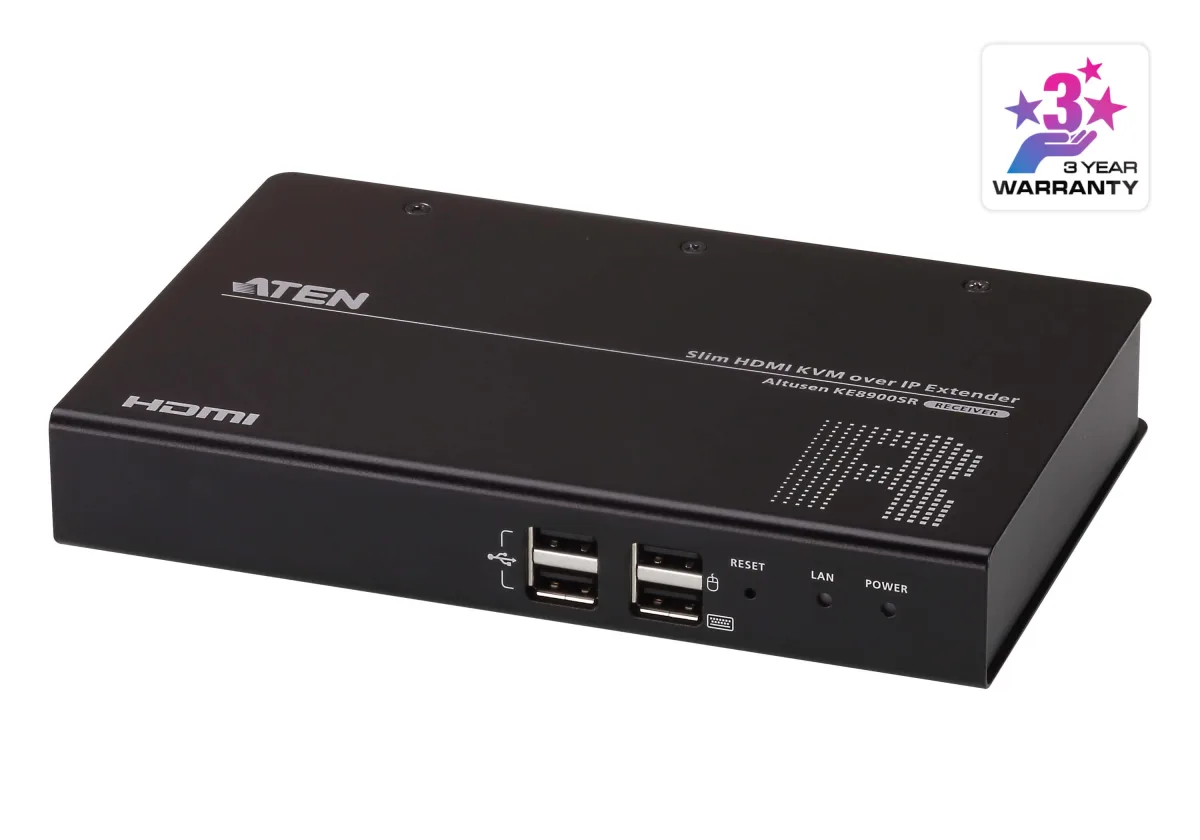

ALTUSEN KE8900SR Slim HDMI Single Display KVM over IP Receiver - KVM extender - receiver - USB

Description

The KE8900S Slim HDMI KVM over IP Extender is a pair of compact and affordable high performance IP-based transmitter (KE8900ST) / receiver (KE8900SR) that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, HDMI monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users' workstation. The KE8900ST or KE8900SR can be paired with any KE Series* receiver or transmitter for a savings solution that stays within budget.
1x KE8900SR Slim HDMI Single Display KVM over IP Receiver
1x 0AD6-1005-26EG Power Adapter
1x Mounting Kit
1x 0X12-0017-700G HDMI Lockpro
1x User Instructions

Specifications

Features

Type	Receiver
Connectivity technology	Wired
Rack mounting	Yes
Maximum digital resolution	1920 x 1200 pixels
KVM port selection	OSD, Push-buttons
Supported resolutions	640 x 480 - 1920 x 1200
On Screen Display (OSD)	Yes
Product colour	Black
Material	Metal
LED indicators	Yes

Receiver

Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1

Ports & interfaces

USB port type	USB Type-A
USB 2.0 ports quantity	4
RS-232 ports	1

Power

AC adapter output voltage	5 V
Power consumption (receiver) (max)	4.35 W

Weight & dimensions

Receiver width	18.2 cm
Receiver depth	11.8 cm
Receiver height	2.87 cm
Receiver weight	640 g

Packaging data

Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.04 kg

Packaging content

AC adapter included	Yes
Manual	Yes
Mounting bracket(s) included	Yes

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95%

Technical details

Weight	1.01 kg

Logistics data

Master (outer) case net weight	5.05 kg
Harmonized System (HS) code	84733080
Master (outer) case width	292 mm
Master (outer) case length	517 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	5.74 kg
Products per master (outer) case	5 pc(s)
