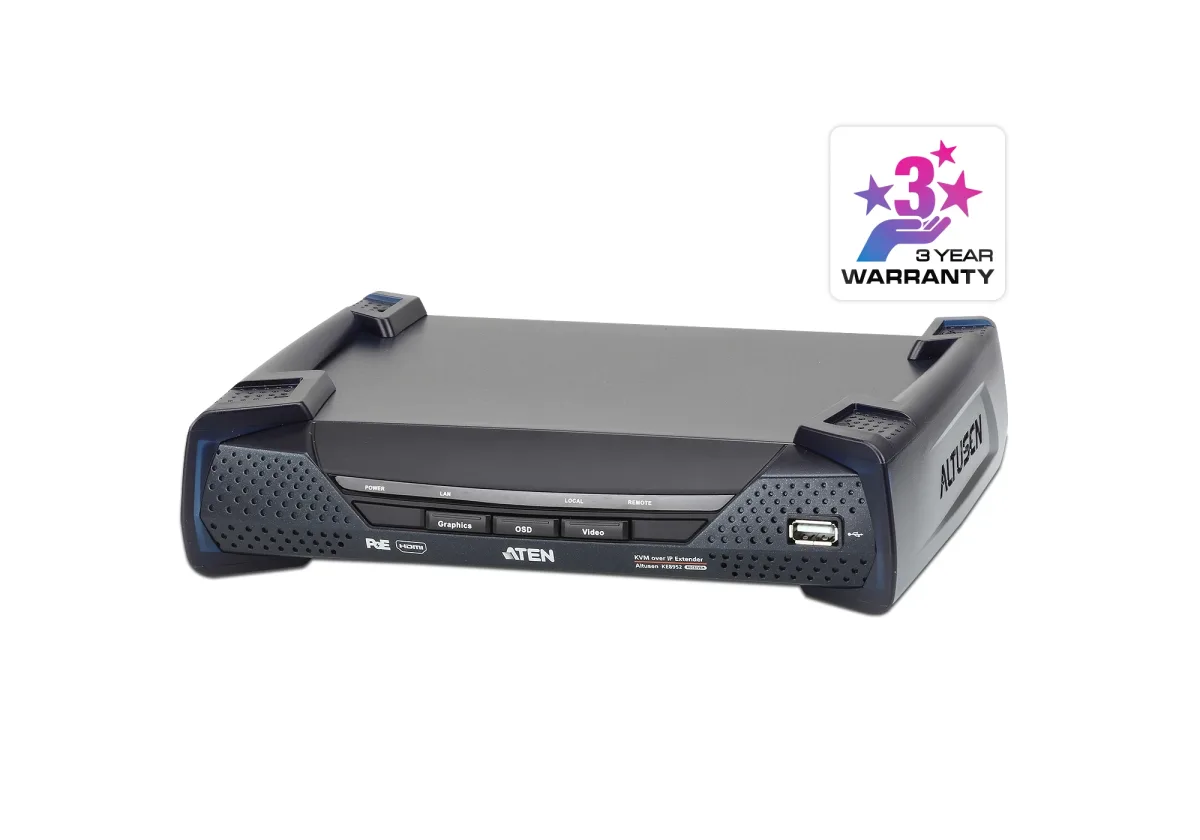

ALTUSEN KE8952R 4K HDMI Single Display KVM over IP - KVM / audio / serial / USB extender - receiver - USB - for P/N: CS1144DP4UN

Description

ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new ATEN KE8952 4K HDMI KVM over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.
1x KE8952R 4K HDMI Single Display KVM over IP Receiver with PoE
1x 0X12-0017-700G HDMI LockPro
1x User Instructions

Specifications

Features

Type	Receiver
Connectivity technology	Wired
Maximum digital resolution	3840 x 2160 pixels
Supported resolutions	3840 x 2160
Product colour	Black
Material	Metal
LED indicators	Yes

Receiver

Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1

Ports & interfaces

USB port type	USB Type-A
USB 2.0 ports quantity	4

Weight & dimensions

Receiver width	22.8 cm
Receiver depth	17.2 cm
Receiver height	5.48 cm
Receiver weight	1.26 kg

Packaging data

Package width	207 mm
Package depth	414 mm
Package height	117 mm
Package weight	2.5 kg

Packaging content

Manual	Yes
Quick installation guide	Yes

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

Technical details

Dimensions (WxDxH)	227.5 x 171.6 x 54.8 mm
Maximum resolution	3840 x 2160 pixels
Weight	1.28 kg

Logistics data

Master (outer) case net weight	3.84 kg
Harmonized System (HS) code	84733080
Master (outer) case width	370 mm
Master (outer) case length	427 mm
Master (outer) case height	232 mm
Master (outer) case gross weight	5.83 kg
Products per master (outer) case	3 pc(s)
