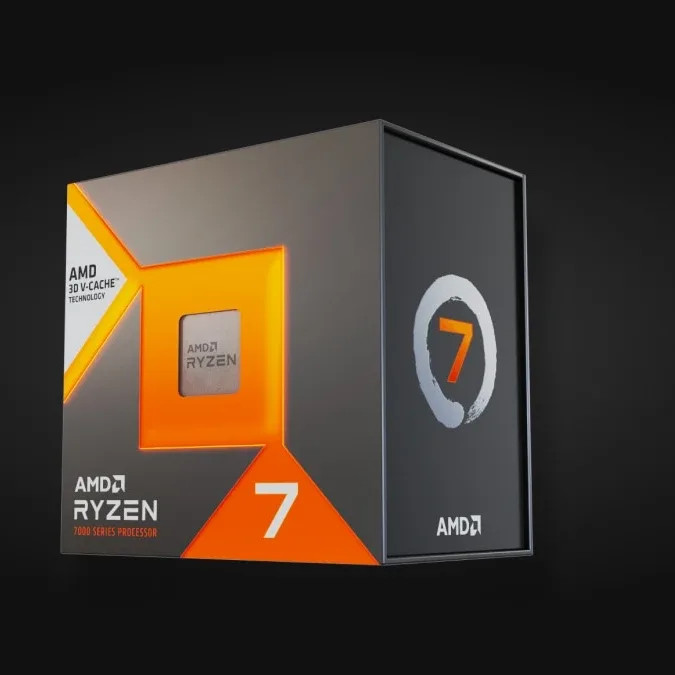

AMD Ryzen 7 7700X3D 8 Core AM5 Processor, 16 Threads, 4GHz up to 4.5GHz Boost, 96MB Cache, 120W, with AMD Radeon Graphics

Description

AMD Ryzen 7 7700X3D Desktop Processor

Whatever the setting or resolution, lead your team to victory with elite gaming performance from a powerful 8-core AMD gaming processor featuring AMD 3D V-Cache technology.

General Specifications

Name
AMD Ryzen 7 7700X3D

Family
Ryzen

Series
Ryzen 7000 Series

Form Factor
Desktops , Boxed Processor

Former Codename
Raphael AM5

Processor Architecture
Zen 4

# of CPU Cores
8

Multithreading (SMT)
Yes

# of Threads
16

Max. Boost Clock
Up to 4.5 GHz

Base Clock
4 GHz

L1 Cache
512 KB

L2 Cache
8 MB

L3 Cache
96 MB

Default TDP
120W

Processor Technology for CPU Cores
TSMC 5nm FinFET

Processor Technology for I/O Die
TSMC 6nm FinFET

CPU Compute Die (CCD) Size
71mm²

I/O Die (IOD) Size
122mm²

Package Die Count
2

AMD EXPO Memory Overclocking Technology
Yes

Precision Boost Overdrive
Yes

Curve Optimizer Voltage Offsets
Yes

AMD Ryzen Master Support
Yes

CPU Socket
AM5

Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64

Thermal Solution (PIB)
Not Included

Recommended Cooler
Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)
89°C

*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps)
4

Native USB 3.2 Gen 1 (5Gbps)
0

Native USB 2.0 (480Mbps)
1

PCI Express Version
PCIe 5.0

Native PCIe Lanes (Total/Usable)
28 , 24

NVMe Support
Boot , RAID0 , RAID1 , RAID10

System Memory Type
DDR5

Memory Channels
2

Max. Memory
128 GB

System Memory Subtype
UDIMM

Max Memory Speed
2x1RDDR5-5200
2x2RDDR5-5200
4x1RDDR5-3600
4x2RDDR5-3600

ECC Support
Yes (Requires mobo support)

Graphics Capabilities

Graphics Model
AMD Radeon Graphics

Graphics Core Count
2

Graphics Frequency
2200 MHz

USB Type-C DisplayPort Alternate Mode
Yes

Security

AMD Secure Processor
Yes

AMD Platform Secure Boot
Yes

Windows Secure Boot
Yes

UEFI Secure Boot
Yes

Windows Device Guard
Yes

Supervisor Mode Execution Prevention (SMEP)
Yes

Guest Mode Execution (GMET) Trap
Yes

Virtualization-Based Security (VBS)
Yes

Windows Secured-Core PC
Yes

Firmware TPM
Yes

AMD-V (SVM)
Yes

AMD AVIC (Interrupt Virtualization)
Yes

AMD-Vi (I/O MMU Virtualization)
Yes

Second Level Address Translation (SLAT)
Yes

Advanced Encryption Standard New Instructions (AES-NI)
Yes

AMD Enhanced Virus Protection (NX bit)
Yes

AMD Shadow Stack
Yes

Key Features

• Socket: AM5
• On-Chip Graphics: Ryzen
• Speed: 4.5GHz
• Core Quantity: 8
• Prefix: Ryzen 7

Category: Processors

Manufacturer Code: 100-100002235WOF

EAN: 0730143318488

Weight (KG): 0.25

VAT Rate: 20%
