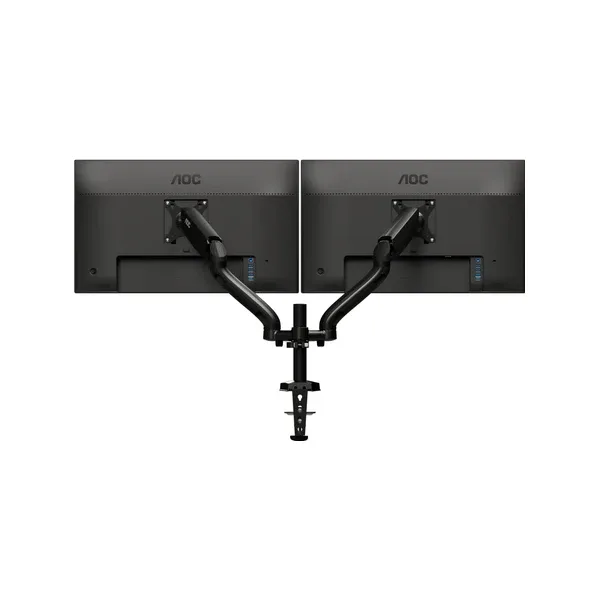

AOC AD110D0 - Mounting kit - adjustable arm - for 2 LCD displays - aluminium alloy - screen size: up to 27" - desk-mountable

Description

Dual monitor arm for up to 32“ displays
The gas-spring loaded, sleek AD100 dual monitor arm can be clamped to desks, holds two displays up to 32“ size. 360° pivot range, wide tilt range, 320 mm height range delivers huge flexibility.

Specifications

Mounting

Maximum weight capacity	9 kg
Minimum screen size	33 cm (13")
Number of displays supported	2
Maximum weight capacity (per display)	9 kg
Maximum screen size	81.3 cm (32")
Mounting	Clamp/Bolt-through
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	100 x 100,75 x 75 mm
Desk thickness (min)	1.5 cm
Desk thickness (max)	8 cm
Clamp mount desk thickness (max)	8 cm
Grommet mount desk thickness (max)	8 cm
Mounting hole range	7 - 87 mm

Ergonomics

Height adjustment	Yes
Height adjustment type	Gas spring
Height adjustment range	320 - 440 mm
Adjustable depth	Yes
Depth adjustment range	0 - 460 mm
Tilt adjustment	Yes
Tilt angle range	-450 - 600°
Swivelling	Yes
Swivel angle	360°
Swivel angle range	-900 - 900°
Pivot angle	0 - 3600°
Cable management	Yes

Design

Housing material	Aluminium
Product colour	Black

Weight & dimensions

Width	69 mm
Depth	12.5 mm
Height	24.5 mm
Weight	4.12 kg

Packaging data

Package width	125 mm
Package depth	690 mm
Package height	245 mm
Package weight	5.1 kg

Packaging content

Clamp included	Yes
Mounting kit	Yes
Manual	Yes
Packaging content	User Manual, Monitor Arm, Clamp mount, Grommet mount, Installation materials

Other features

Height (max)	58 cm
Warranty period	5 year(s)

Technical details

Height adjustment	32 cm
Weight (with stand)	5.7 kg
Adjustment type	Gas spring

Logistics data

Harmonized System (HS) code	85299097
