Manufacturer Code: U32G4U
Overview

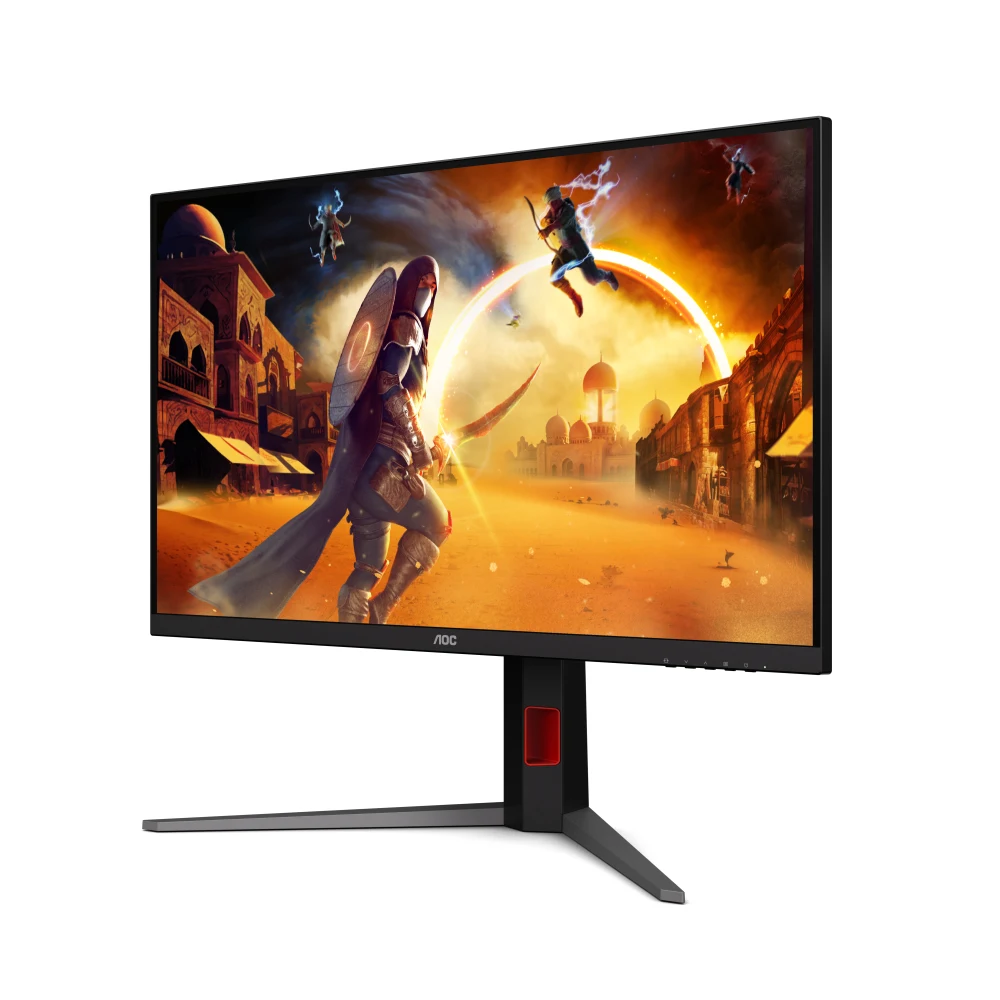

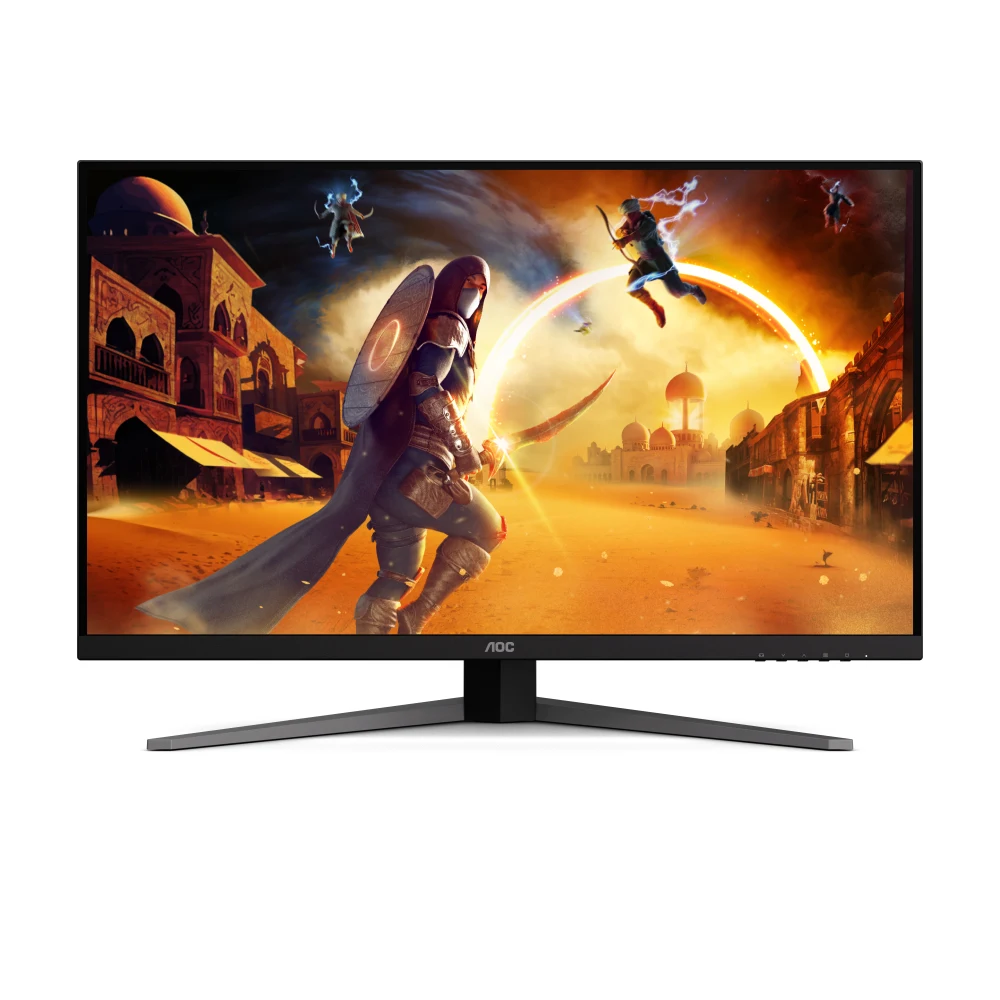

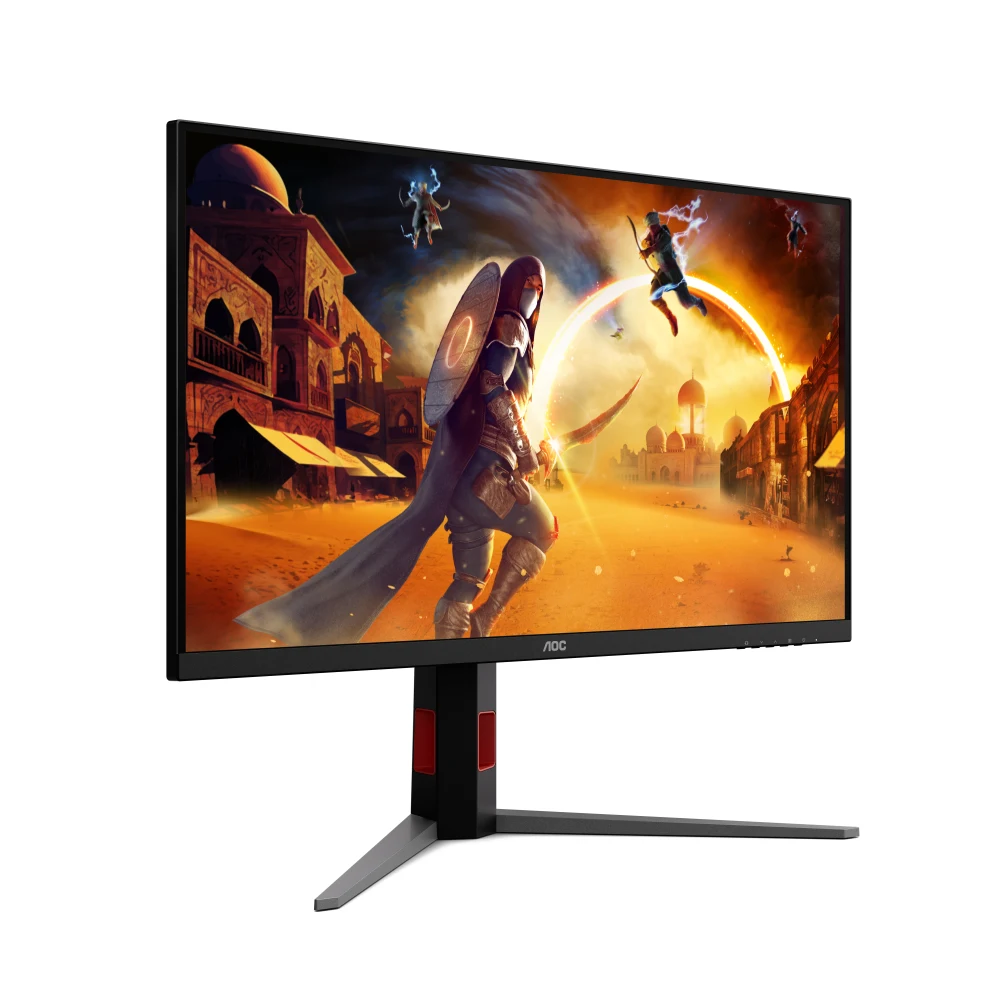

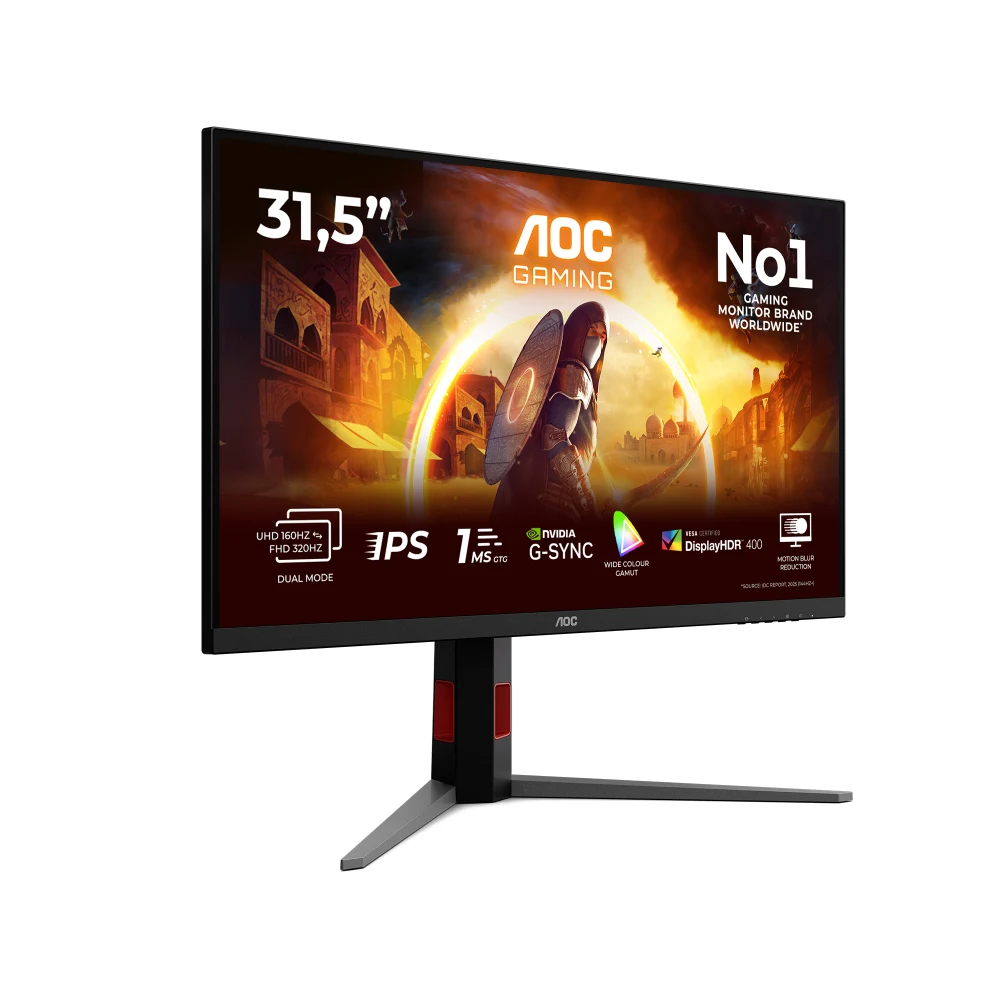

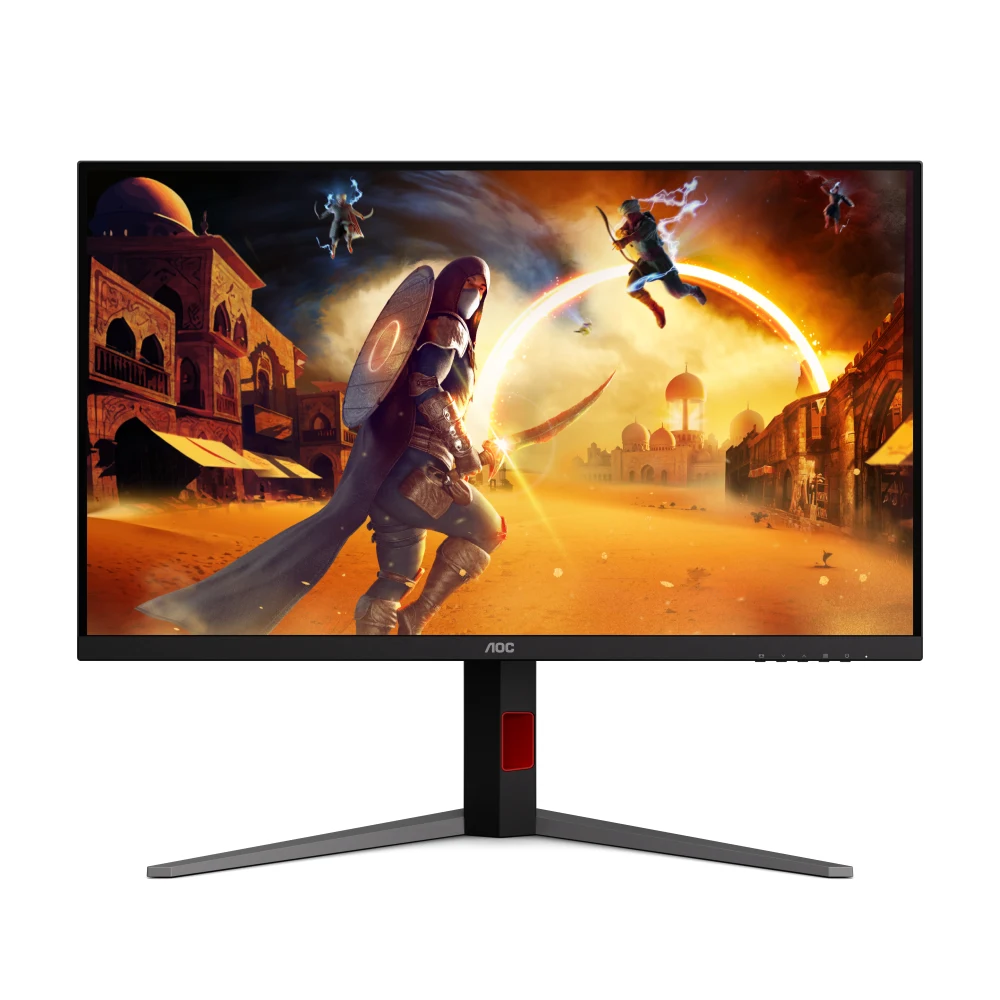

AOC Gaming U32G4U - LED monitor - gaming - 32" (31.5" viewable) - 3840 x 2160 4K UHD (2160p) @ 160 Hz - Fast IPS - 400 cd/m² - 1000:1 - DisplayHDR 400 - 0.5 ms - 2xHDMI, DisplayPort - black, red is available through DCS Components. It sits within the Monitors category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 4038986113113
| Display diagonal | 80 cm (31.5") |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Panel type | Fast IPS |
| LED backlight | Yes |
| Backlight type | W-LED |
| Display brightness (typical) | 450 cd/m² |
| Response time | 1 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Response time (MPRT) | 0.5 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 80000000:1 |
| Maximum refresh rate | 320 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.1818 x 0.1818 mm |
| Pixel density | 139.87 ppi |
| Display diagonal (metric) | 80 cm |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR 400 |
| sRGB coverage (typical) | 127.2% |
| Adobe RGB coverage | 91.8% |
| DCI-P3 coverage | 95.6% |
| VESA Adaptive Sync support | Yes |
|---|---|
| Flicker-free technology | Yes |
| Market positioning | Gaming |
|---|---|
| Product colour | Black, Red |
| Frameless design | Yes |
| Front bezel colour | Black |
| Detachable stand | Yes |

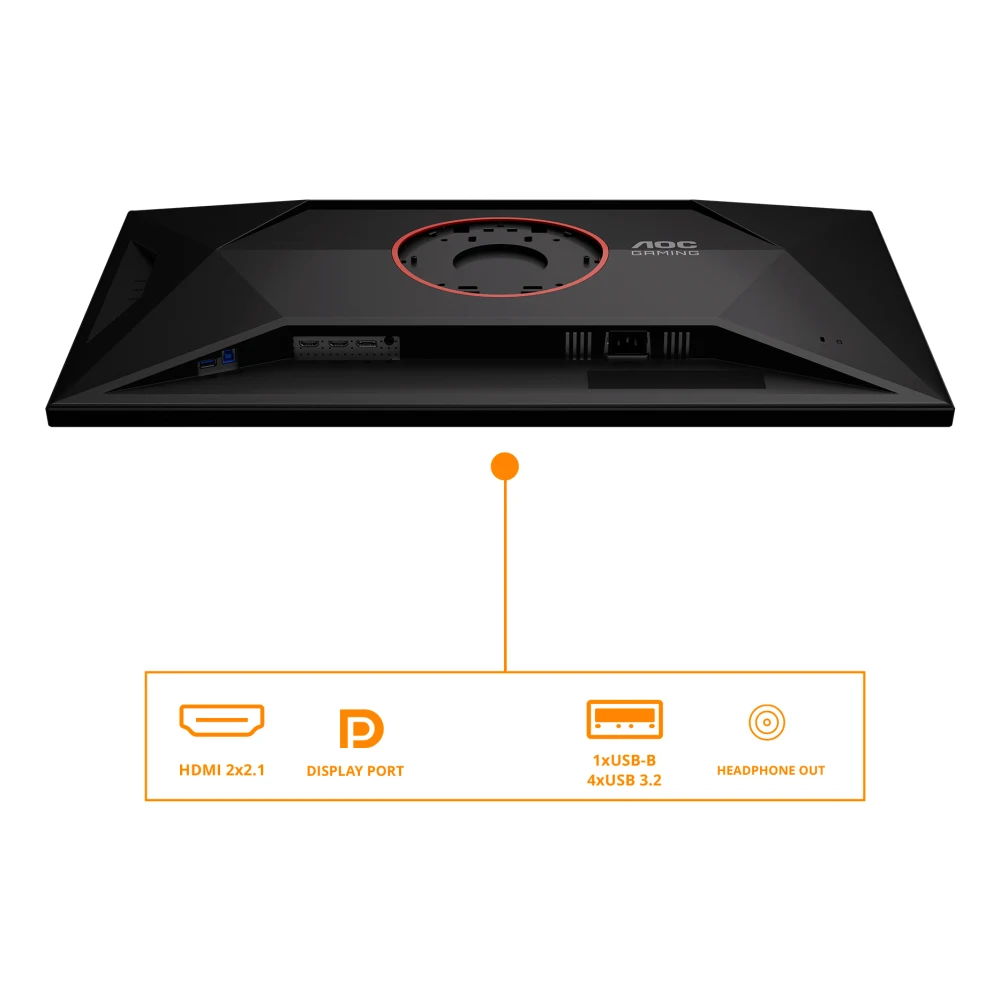

| Built-in USB hub | Yes |
|---|---|
| USB upstream port type | USB Type-B |
| Number of downstream ports | 4 |
| Number of USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Audio output | Yes |
| Headphone out | Yes |
| VESA mounting | Yes |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Height adjustment | Yes |

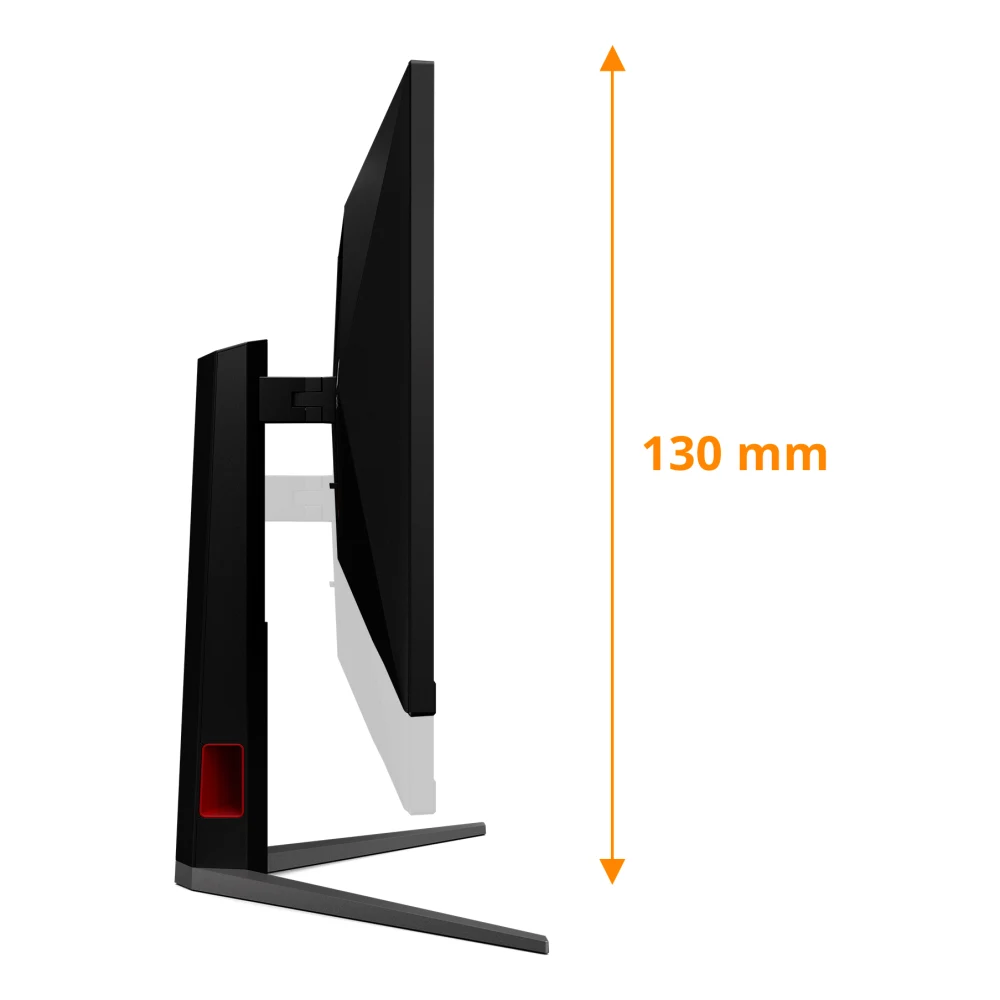

| Adjustable height (max) | 13 cm |

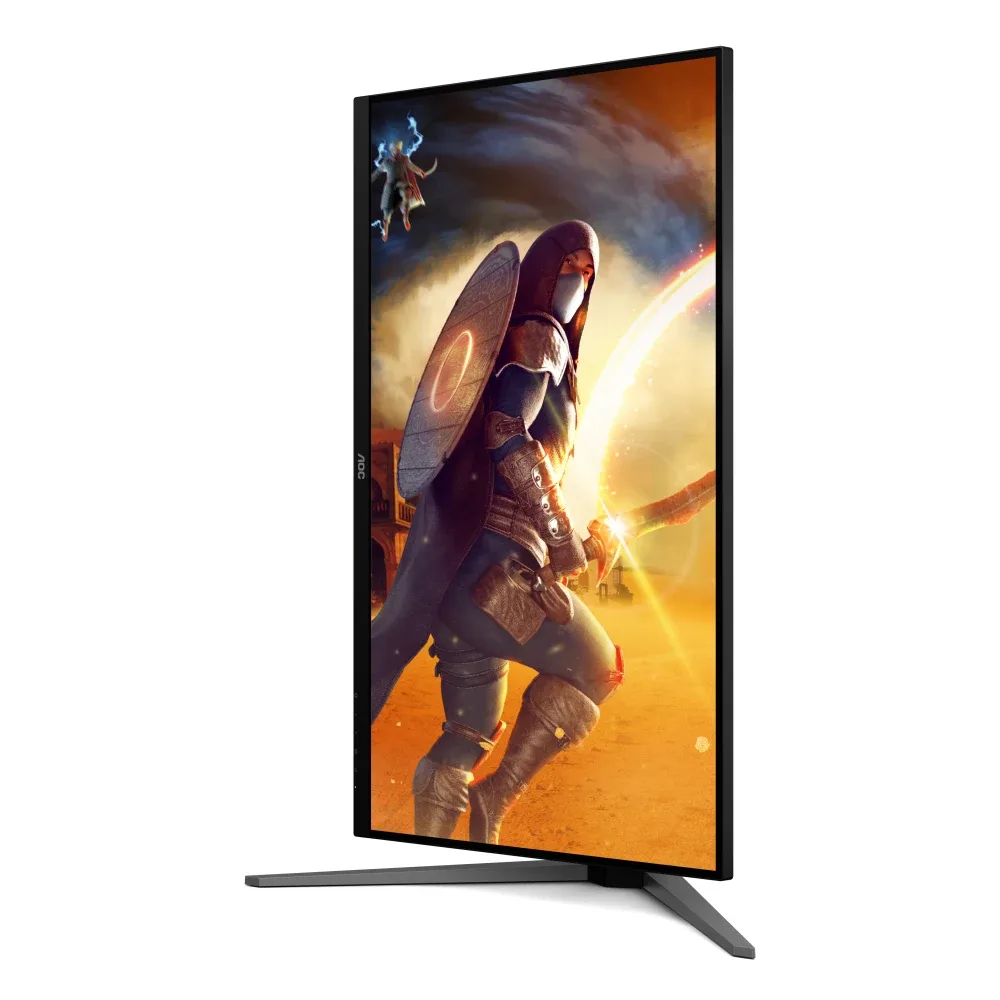

| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -20 - 20° |
| Tilt adjustment | Yes |
| Tilt angle range | -3 - 21° |
| Picture-in-Picture | Yes |
| Energy efficiency class (SDR) | F |
|---|---|
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 29 kWh |
| Energy consumption (HDR) per 1000 hours | 60 kWh |
| Power consumption (typical) | 43 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Width (with stand) | 716.1 mm |
|---|---|
| Depth (with stand) | 269.6 mm |
| Height (with stand) | 462 mm |
| Weight (with stand) | 8.01 kg |
| Width (without stand) | 716.1 mm |
| Depth (without stand) | 59.9 mm |
| Height (without stand) | 424.3 mm |
| Weight (without stand) | 5.72 kg |
| Package width | 980 mm |
|---|---|
| Package depth | 226 mm |
| Package height | 527 mm |
| Package weight | 11.4 kg |
| Cables included | AC, HDMI, DisplayPort, USB |
|---|---|
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Brand specific technologies | Crosshair |
|---|---|
| Low input lag | Yes |
| FPS counter | Yes |
| Dial point | Yes |
| Shadow control | Yes |
| Motion blur reduction | Yes |
| Local dimming | Yes |
| Bezel thickness type | Frameless |
| Warranty period | 3 year(s) |
| Compliance certificates | CE |
