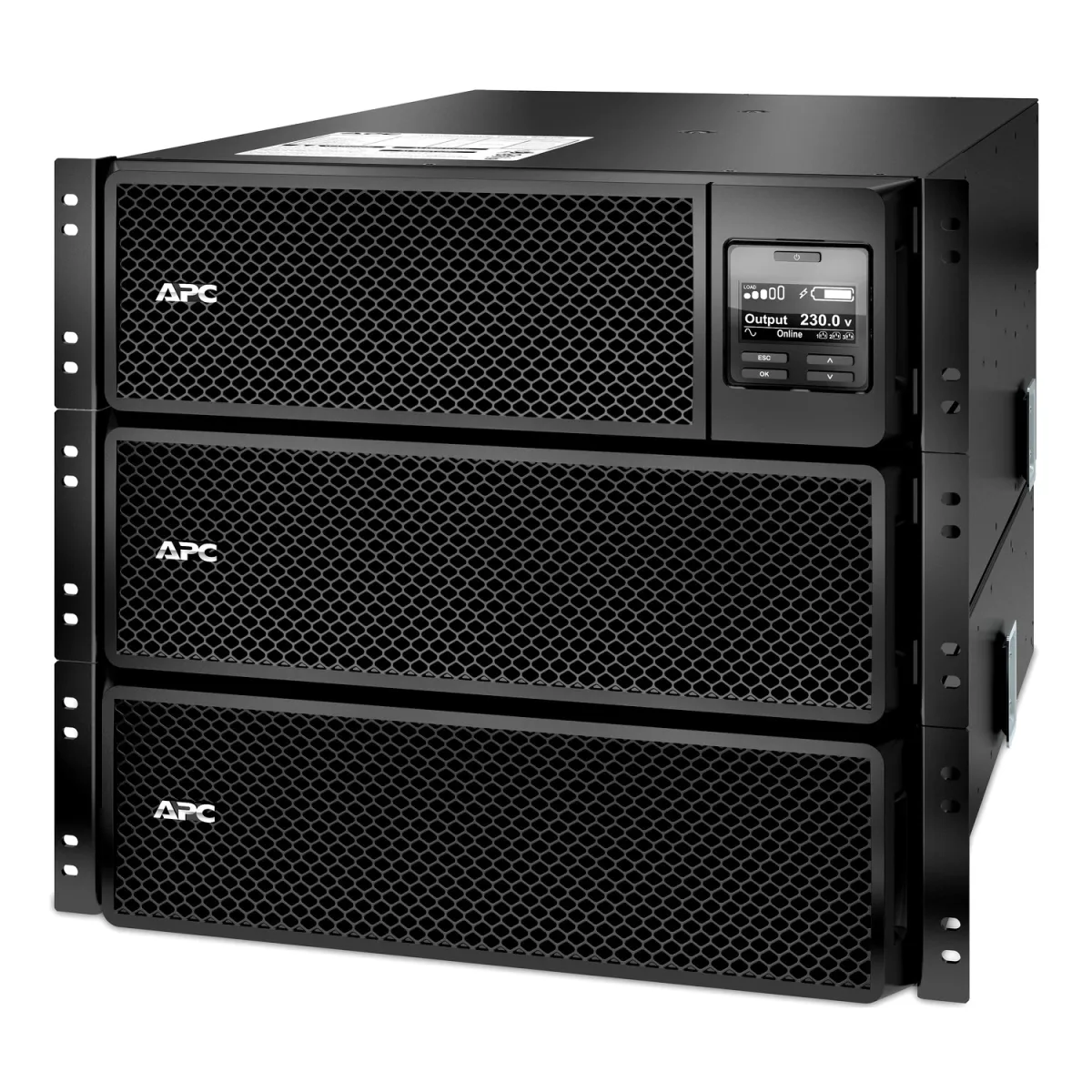

APC Smart-UPS SRT 192V 8 and 10kVA RM Battery Pack

Description

This product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. Its dimensions are 683mm (depth) x 432mm (height) x 130mm (width) and weighs 91.0kg. Ideal for Smart-UPS on-line mission critical applications. It conforms to OSHPD.

Specifications

Features

Battery voltage	192 V
Battery capacity	1920 VAh
Number of batteries included	1 pc(s)
Battery life	5 year(s)
Product colour	Black
Rack capacity	3U

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	RoHS, REACH, WEEE
Certification	OSHPD REACH

Battery

Battery replacement accessibility	End-user
Battery technology	Lead acid

Technical details

Sustainable packaging	No
Packaging recycled materials	Recycled cardboard
SCIP number	488c31fb-3af8-42cf-9558-1362d000a07e
Proposition 65	Yes
Take-back system	No
Packaging without single use plastic	No

Weight & dimensions

Weight	91 kg
Width	432 mm
Height	130 mm
Depth	682.7 mm

Packaging data

Package width	600 mm
Package height	420 mm
Package depth	1000 mm
Package weight	105.5 kg

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Logistics data

Customs product code (TARIC)	8507208090
Harmonized System (HS) code	85044095
Total carbon footprint (kg of CO2e)	483.0798226601
Country of origin	Vietnam
