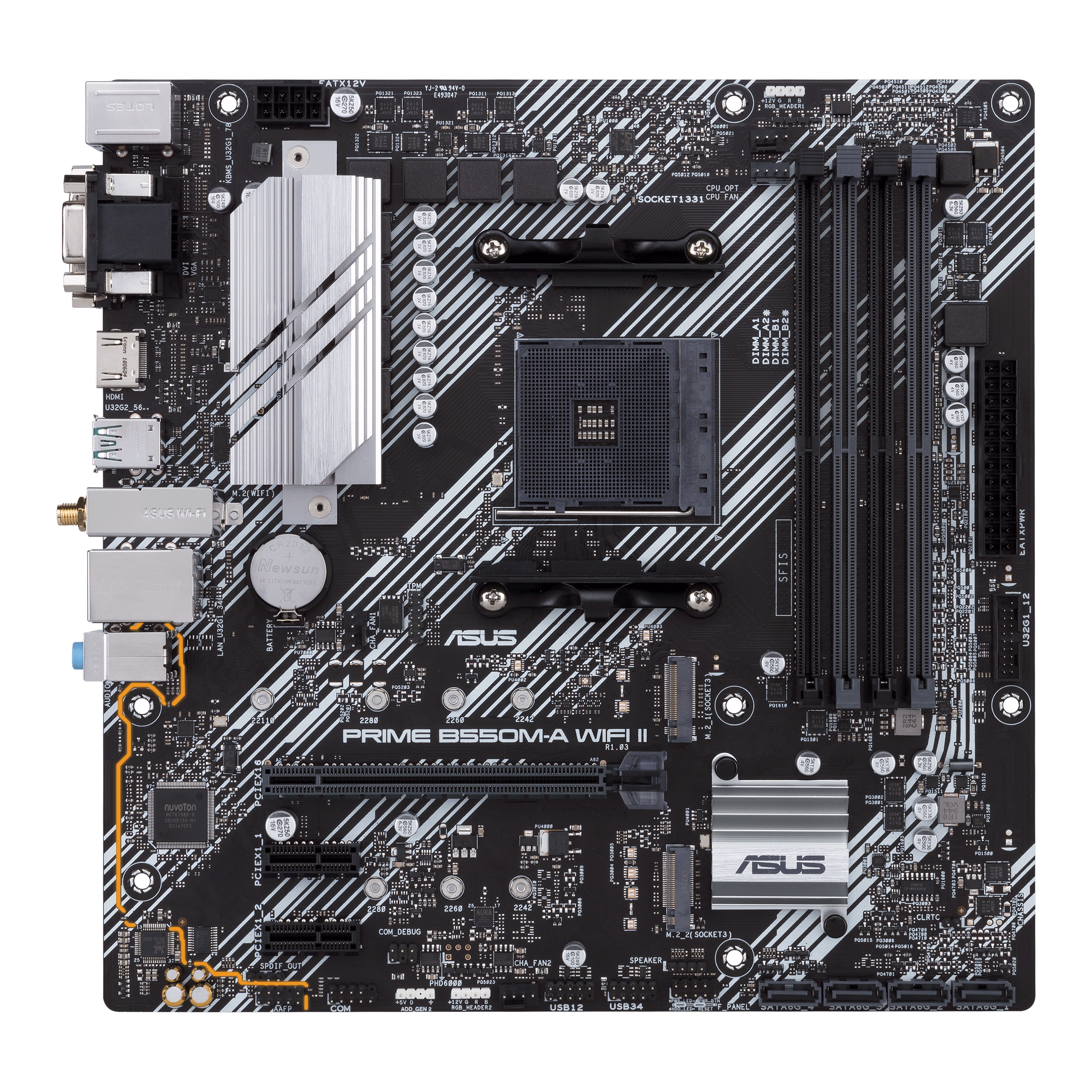

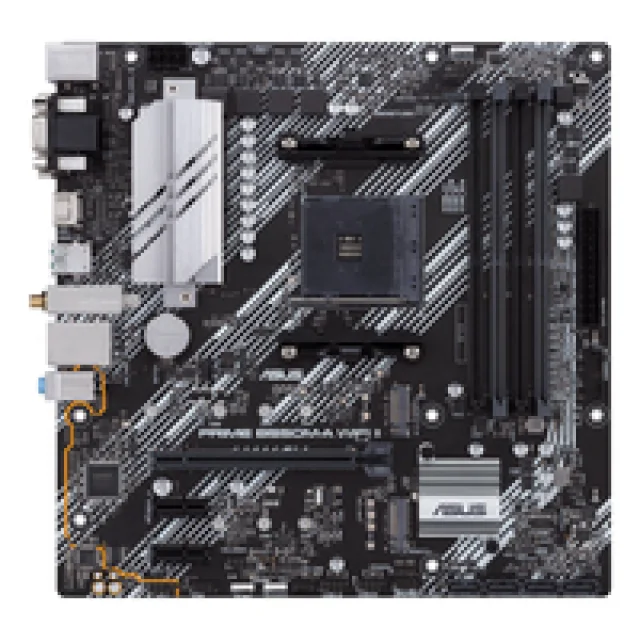

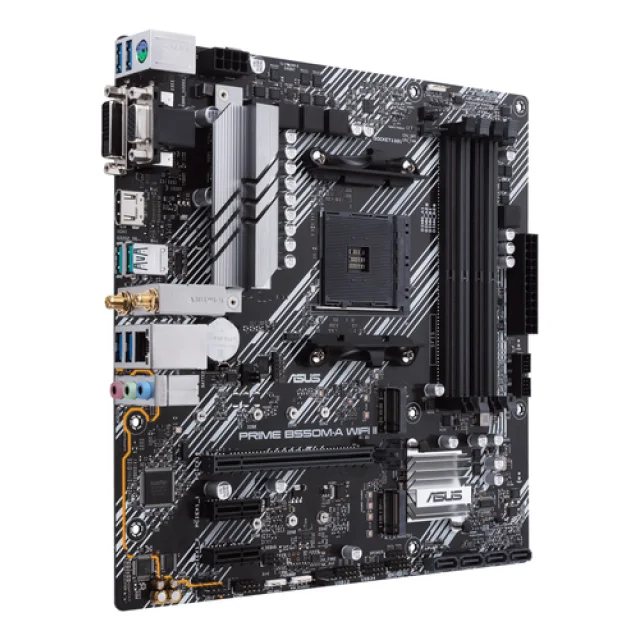

ASUS PRIME B550M-A WIFI II - Motherboard - micro ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB19X0-M0EAY0

Overview

ASUS PRIME B550M-A WIFI II - Motherboard - micro ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• micro ATX
• Socket AM4
• AMD B550 Chipset
• USB 3.2 Gen 1, USB 3.2 Gen 2

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711081309741

Specifications

Processor

Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Supported processor sockets	Socket AM4

Memory

Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC
Supported memory clock speeds	2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Number of storage drives supported	6
RAID support	Yes
RAID levels	0, 1, 10

Graphics

Parallel processing technology support	Not supported
On-board graphics card	No

Internal I/O

USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
Number of EATX power connectors	1
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Number of COM connectors	1
TPM connector	Yes
12V power connector	Yes
RGB LED pin header	Yes

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DVI-D ports quantity	1
Headphone outputs	1
Microphone in	Yes
WiFi-AP antenna jack	1
USB connector type	USB Type-A

Network

Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Realtek RTL8111H
Wake-on-LAN ready	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2

Features

Motherboard chipset	AMD B550
Audio output channels	7.1 channels
Product colour	Multicolour
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	2

BIOS

BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes

Logistics data

Harmonized System (HS) code	84733020

Weight & dimensions

Width	244 mm
Depth	244 mm
Height	67 mm

Packaging content

Cables included	SATA
Drivers included	Yes

Other features

Weight	845 g

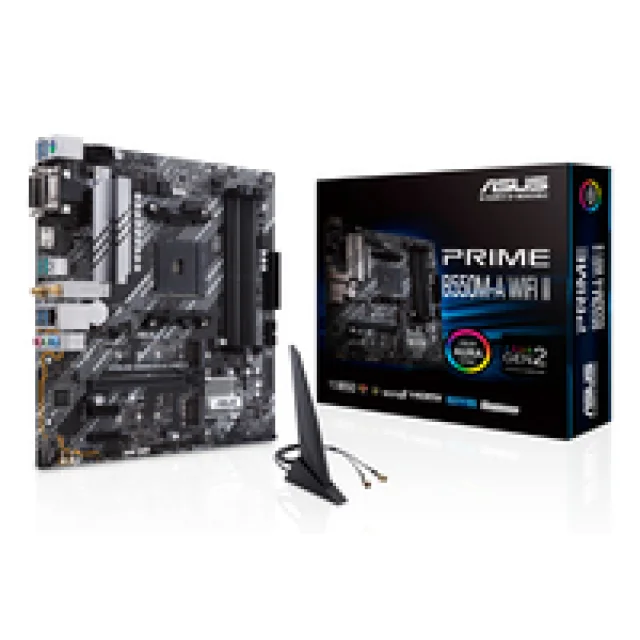

Packaging content	2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package 1 x Support DVD 1 x User manual
