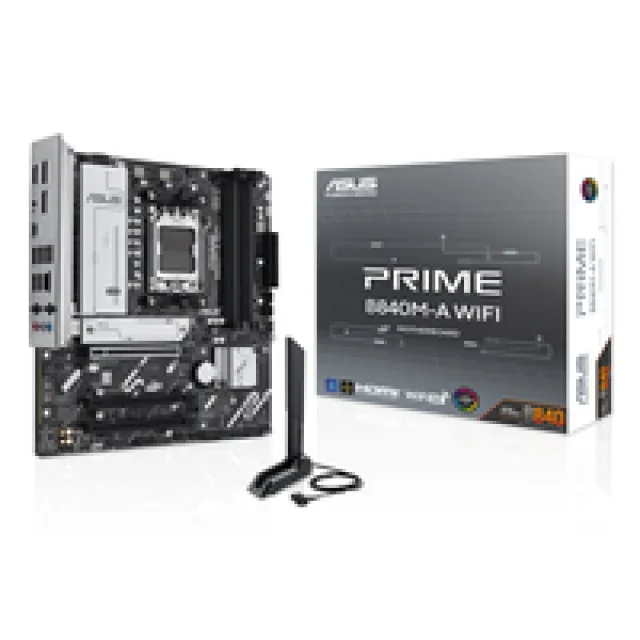

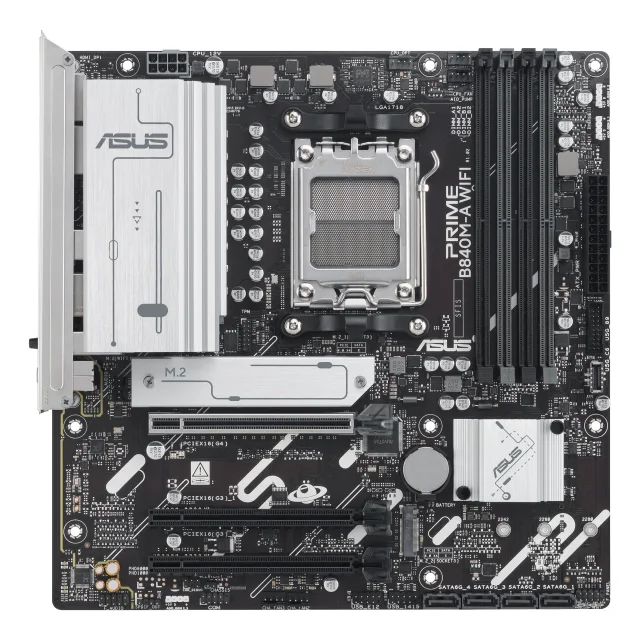

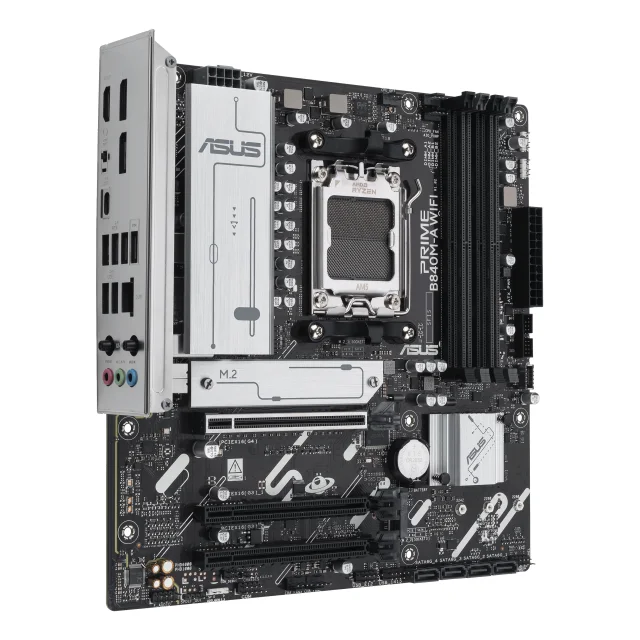

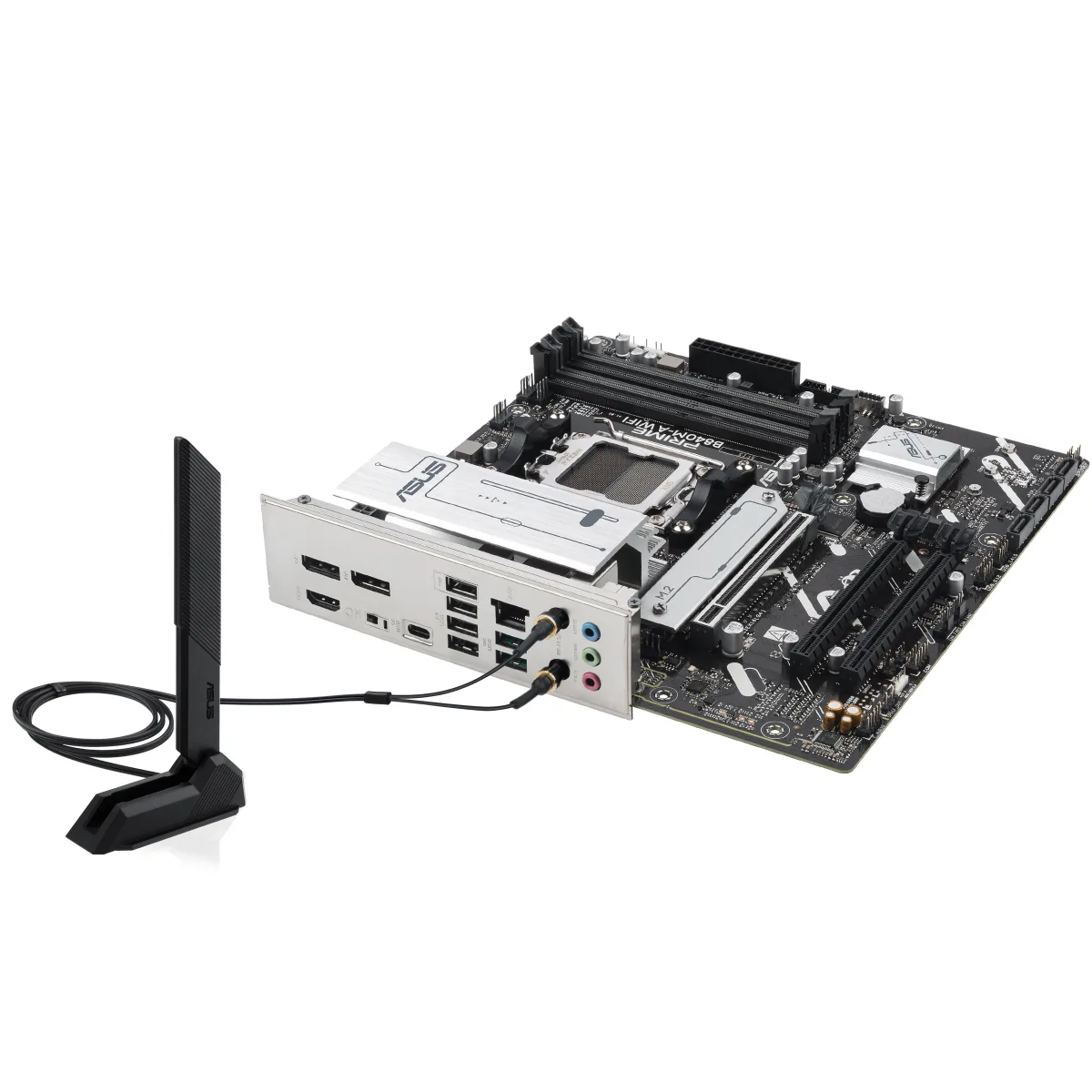

ASUS PRIME B840M-A WIFI - Motherboard - micro ATX - Socket AM5 - AMD B840 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB1J20-M0EAY0

Overview

ASUS PRIME B840M-A WIFI - Motherboard - micro ATX - Socket AM5 - AMD B840 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard graphics (CPU required) - HD Audio (8-channel) is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• micro ATX
• Socket AM5
• AMD B840 Chipset
• USB-C 3.2 Gen 1, USB 3.2 Gen 1

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711387797143

Specifications

Processor

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Maximum internal memory	192 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	7
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Parallel processing technology support	Not supported

Internal I/O

USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	3
Number of COM connectors	1
TPM connector	Yes
12V power connector	Yes

Rear panel I/O ports

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
WiFi-AP antenna jack	1

Network

Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Bluetooth version	5.3

Features

Motherboard chipset	AMD B840
Audio output channels	7.1 channels
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10 x64, Windows 11

Expansion slots

PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	3
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	3.0

BIOS

BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Packaging data

Package width	275 mm
Package depth	275 mm
Package height	67.5 mm
Package weight	1.52 kg

Weight & dimensions

Width	244 mm
Depth	244 mm

Packaging content

Cables included	SATA
Antenna included	Yes
Screws included	Yes
