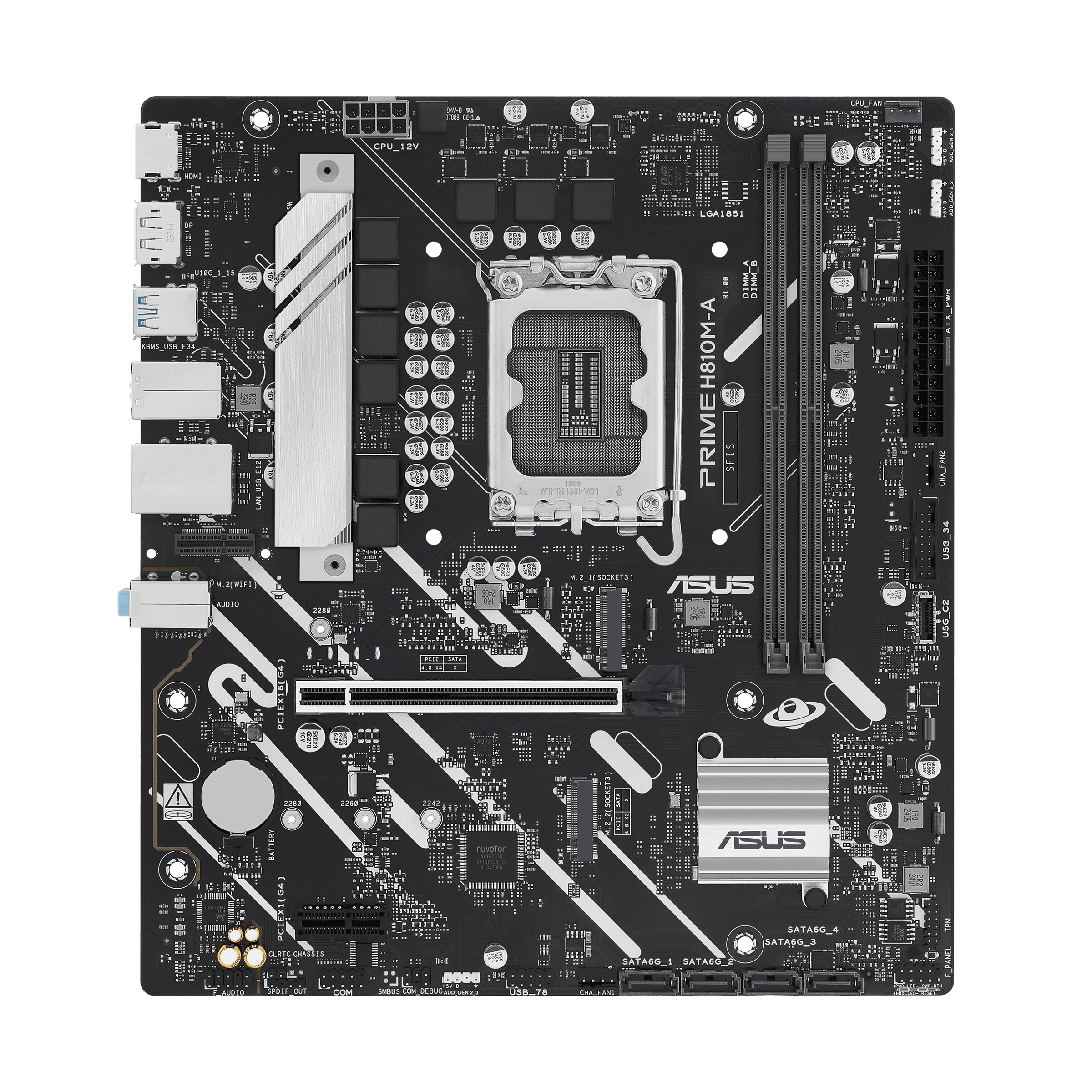

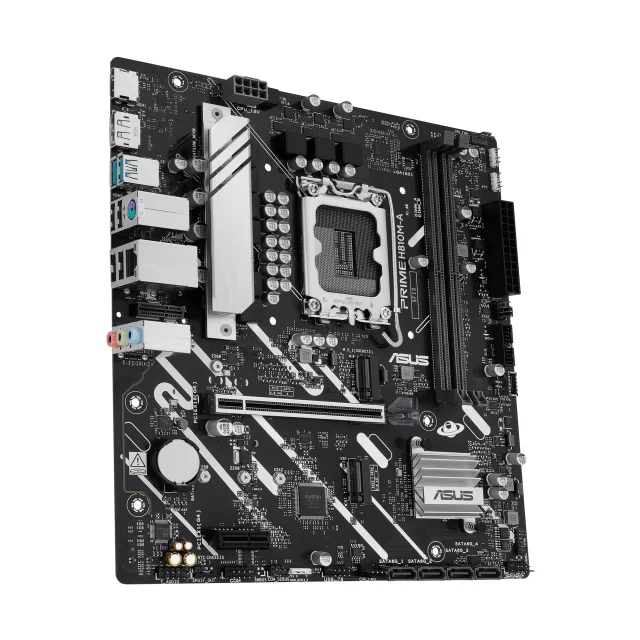

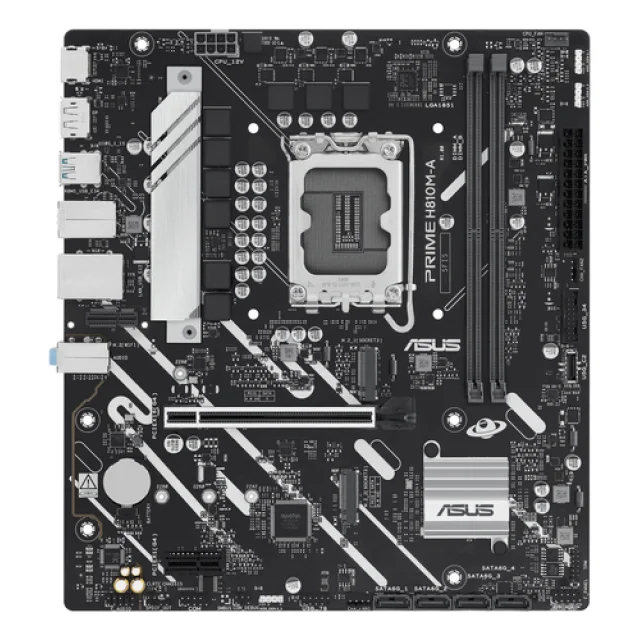

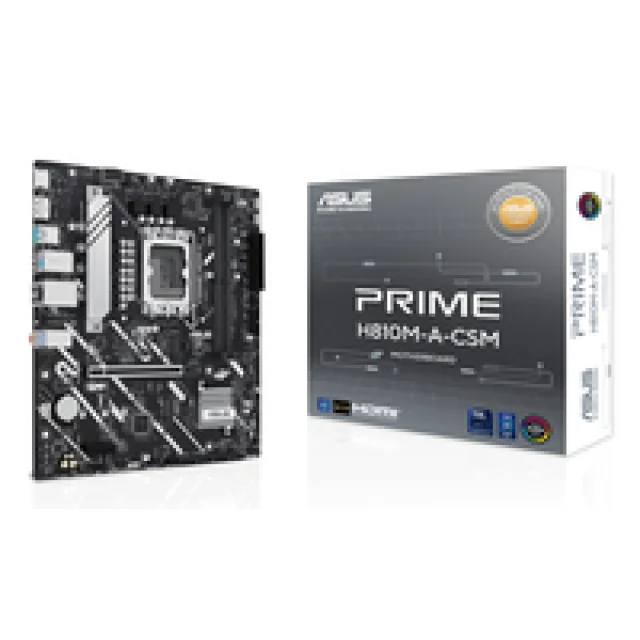

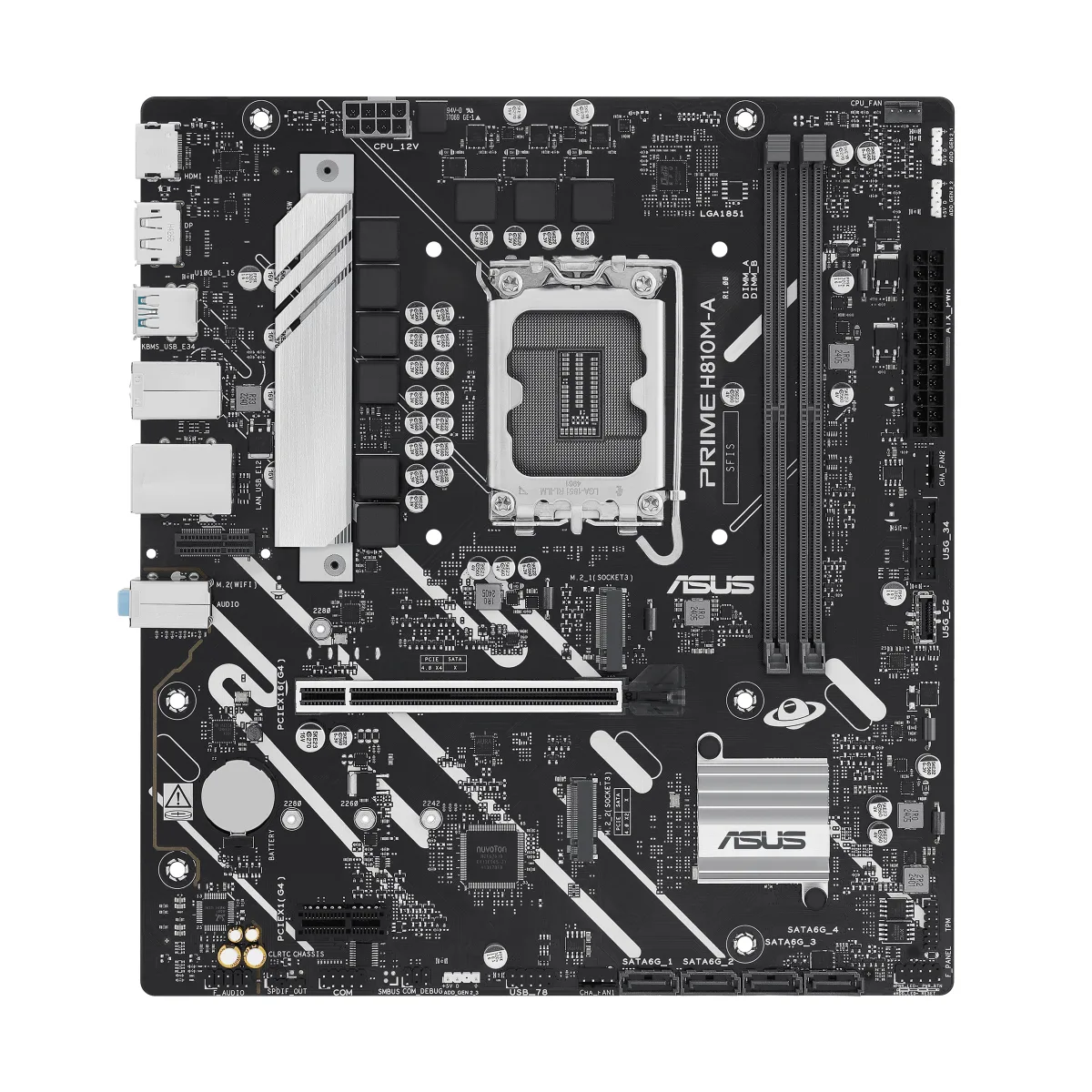

ASUS PRIME H810M-A-CSM - Motherboard - micro ATX - LGA1851 Socket - H810 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB1KK0-M0EAYC

Overview

ASUS PRIME H810M-A-CSM - Motherboard - micro ATX - LGA1851 Socket - H810 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• micro ATX
• LGA1851 Socket
• H810 Chipset
• USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711387844625

Specifications

Processor

Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speed (max)	6400 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Number of HDDs supported	4
Number of storage drives supported	6

Graphics

Parallel processing technology support	Not supported
On-board graphics card	No

Internal I/O

USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	1
Number of COM connectors	1
TPM connector	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	3

Rear panel I/O ports

USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Line-in	Yes
Microphone in	Yes

Network

Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Intel I219V
Wake-on-LAN ready	Yes
Wi-Fi	No

Features

Motherboard chipset	Intel H810
Audio output channels	7.1 channels
Product colour	Black
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	2
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0

BIOS

BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Packaging data

Package width	270 mm
Package depth	263 mm
Package height	51.5 mm
Package weight	782 g

Weight & dimensions

Width	244 mm
Depth	222 mm
Height	37 mm

Other features

Weight	534 g
Number of M.2 (E) slots	1
