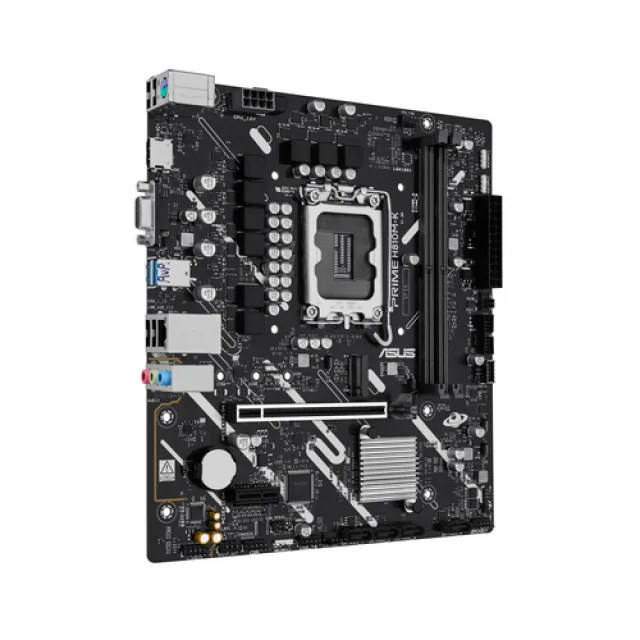

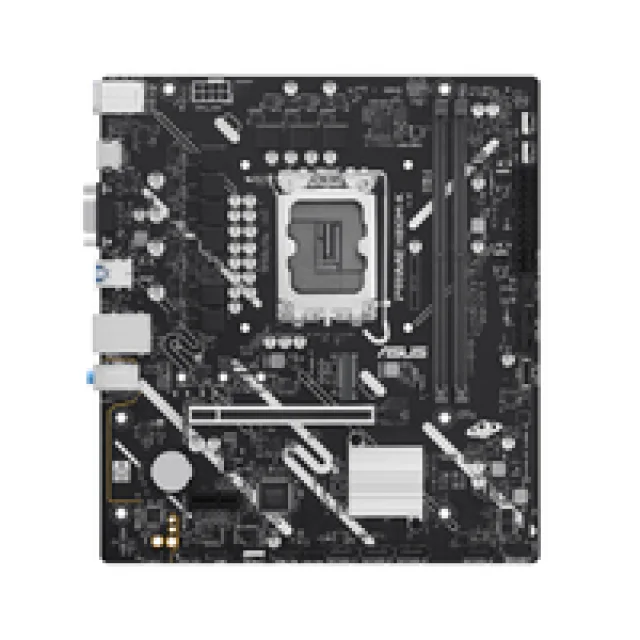

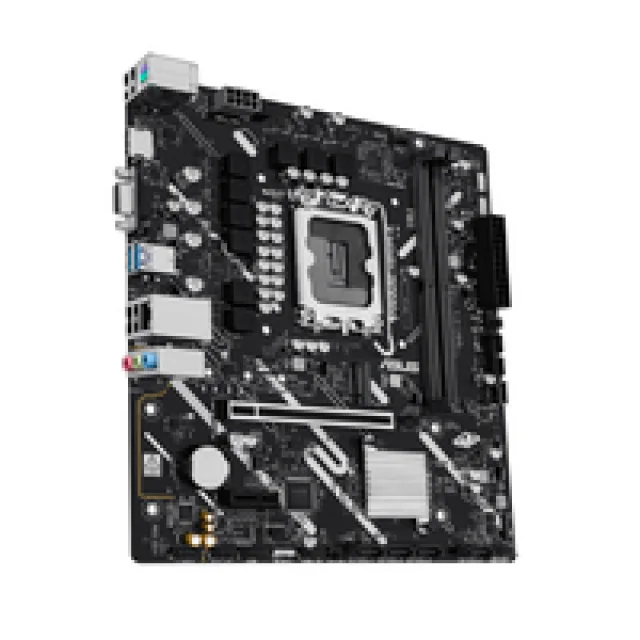

ASUS PRIME H810M-K - Motherboard - micro ATX - LGA1851 Socket - H810 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB1N10-M0EAY0

Overview

ASUS PRIME H810M-K - Motherboard - micro ATX - LGA1851 Socket - H810 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• micro ATX
• LGA1851 Socket
• H810 Chipset
• USB 3.2 Gen 1

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711636292290

Specifications

Processor

Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Maximum internal memory	128 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	5

Graphics

Parallel processing technology support	Not supported

Internal I/O

USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	2
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of COM connectors	1
TPM connector	Yes
12V power connector	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	3

Rear panel I/O ports

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1

Network

Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Wi-Fi	No

Features

Motherboard chipset	Intel H810
Audio output channels	7.1 channels
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0

BIOS

BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Packaging data

Package width	270 mm
Package depth	263 mm
Package height	51.5 mm
Package weight	828 g

Weight & dimensions

Width	234 mm
Depth	211 mm

Packaging content

Cables included	SATA
