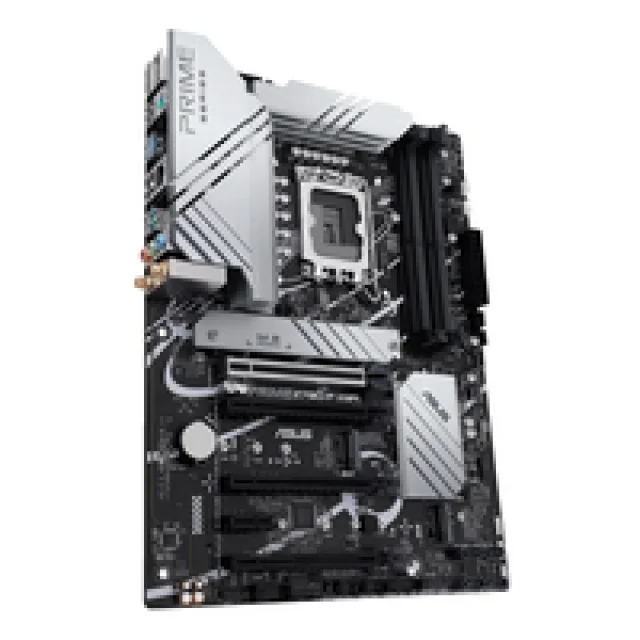

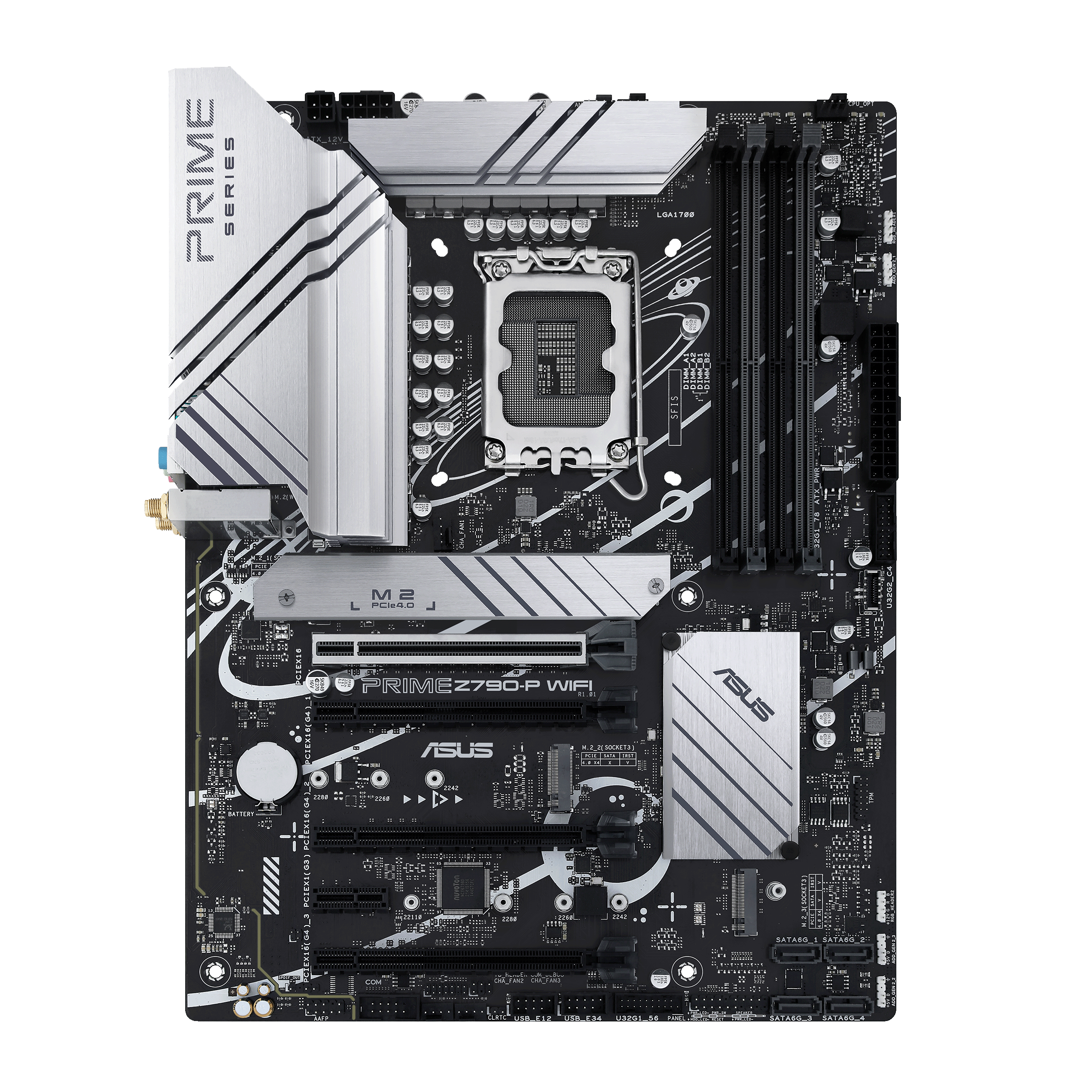

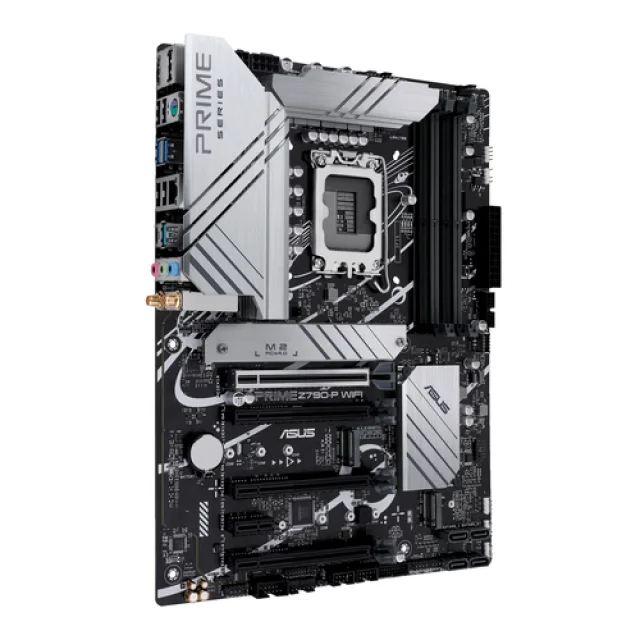

ASUS Prime Z790-P WIFI - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB1CJ0-M1EAY0

Overview

ASUS Prime Z790-P WIFI - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• ATX
• LGA1700 Socket
• Z790 Chipset
• USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711081937227

Specifications

Processor

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets	LGA 1700

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Supported memory clock speed (max)	7200 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Parallel processing technology support	Not supported
On-board graphics card	No

Internal I/O

USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	3
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Yes
Number of COM connectors	1
TPM connector	Yes
Thunderbolt headers	1
12V power connector	Yes
RGB LED pin header	Yes

Rear panel I/O ports

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
WiFi-AP antenna jack	1

Network

Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2

Features

Motherboard chipset	Intel Z790
Audio output channels	7.1 channels
Product colour	Aluminium, Black
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	3
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3

BIOS

BIOS type	UEFI AMI
BIOS memory size	192 Mbit
Clear CMOS button	Yes

Packaging data

Package width	338 mm
Package depth	273 mm
Package height	68 mm
Package weight	1.68 kg

Weight & dimensions

Width	305 mm
Depth	234 mm
Height	40 mm

Packaging content

Cables included	SATA
Drivers included	Yes

Other features

Weight	1.03 kg
