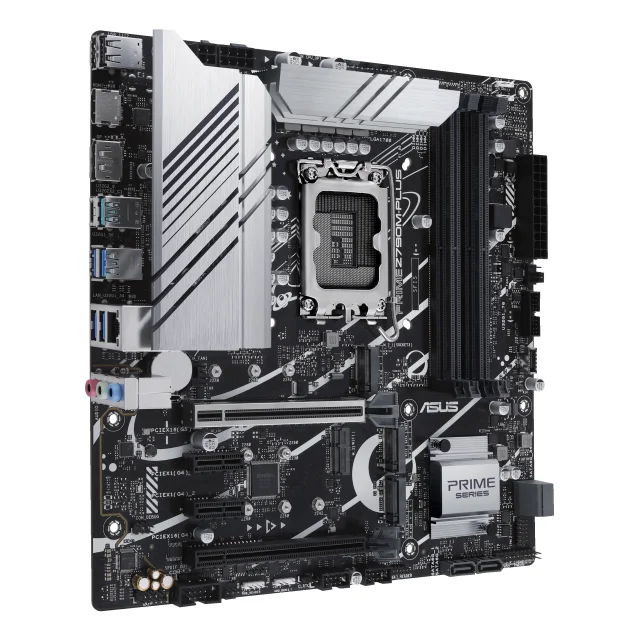

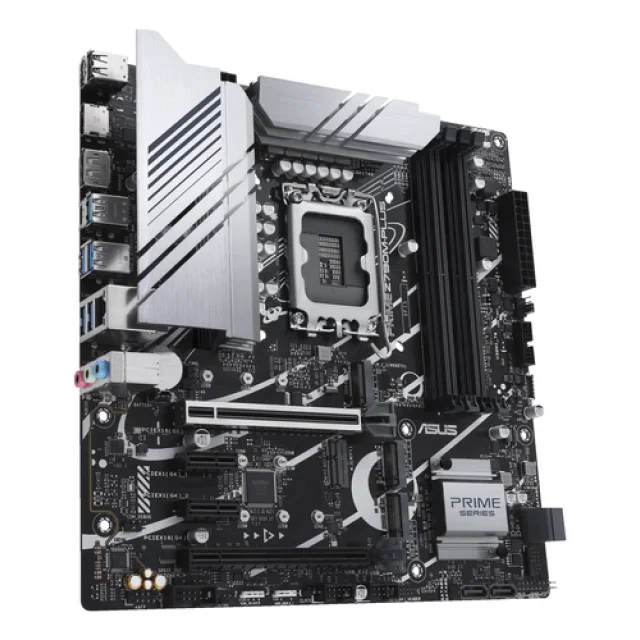

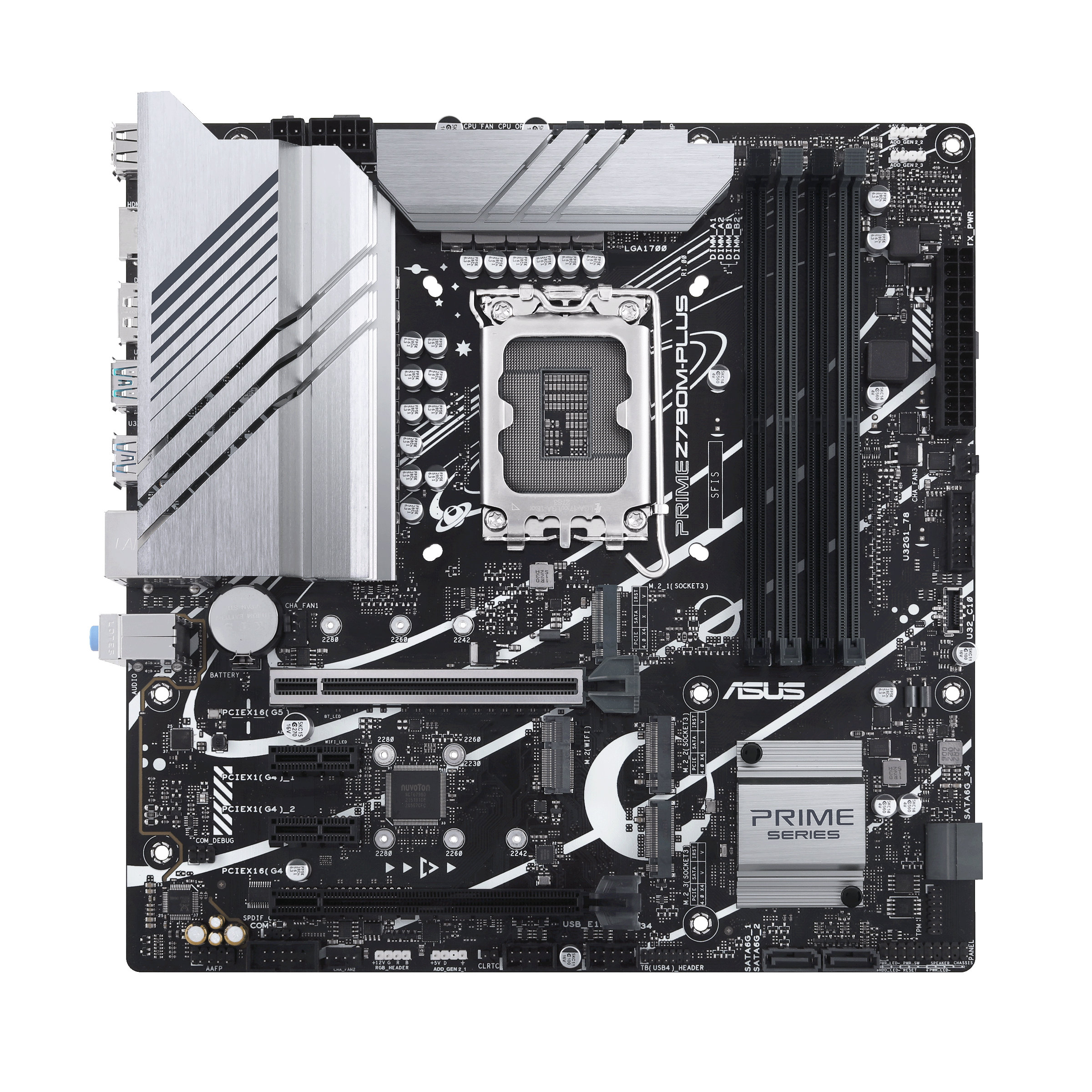

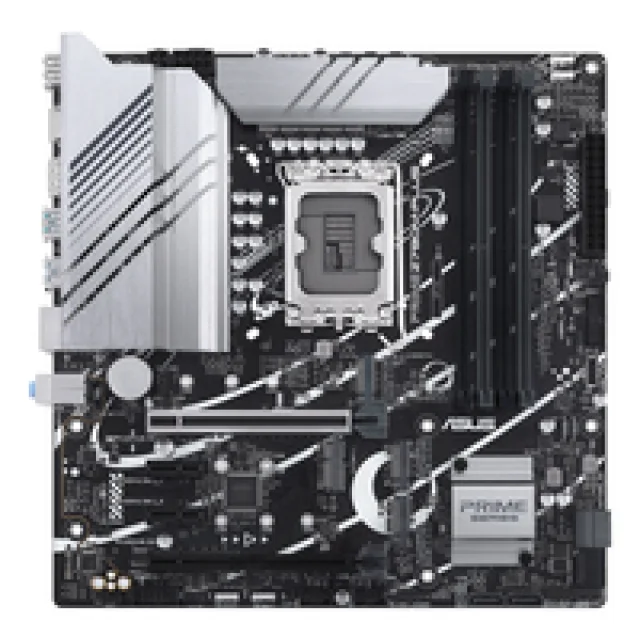

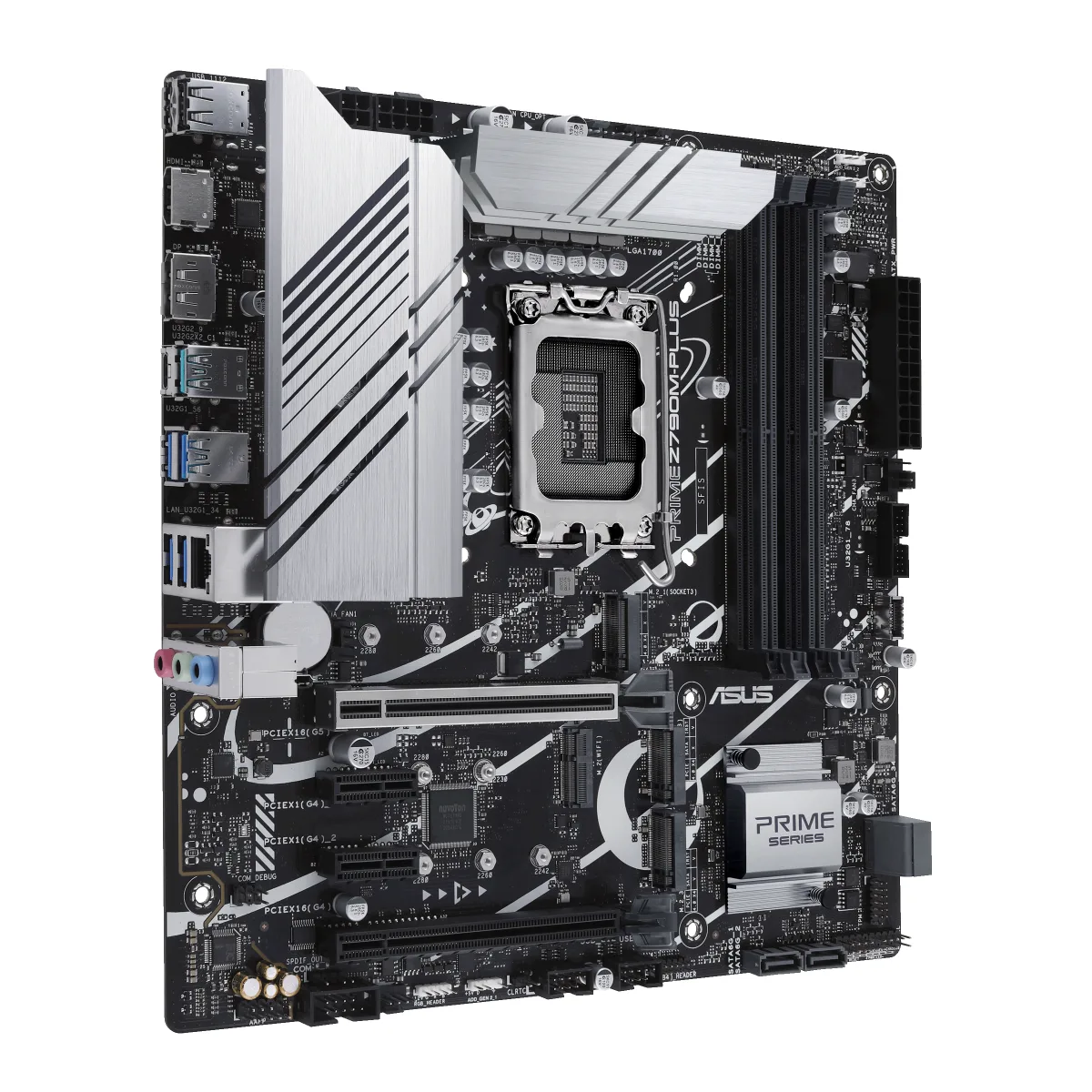

ASUS PRIME Z790M-PLUS - Motherboard - micro ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB1E70-M1EAY0

Overview

ASUS PRIME Z790M-PLUS - Motherboard - micro ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• micro ATX
• LGA1700 Socket
• Z790 Chipset
• USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711387025741

Specifications

Processor

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA
Number of HDDs supported	3
Number of storage drives supported	4
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

On-board graphics card	No

Internal I/O

USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
S/PDIF out connector	Yes
Audio connector	Yes
ATX Power connector (24-pin)	Yes
Power fan connector	Yes
CPU fan connector	Yes
Number of chassis fan connectors	3
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Yes
Number of COM connectors	1
Serial port headers	1
Thunderbolt headers	1
12V power connector	Yes
RGB LED pin header	Yes

Rear panel I/O ports

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
COM ports quantity	1
USB connector type	USB Type-A

Network

Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Wi-Fi	No

Features

Motherboard chipset	Intel Z790
Audio output channels	7.1 channels
Product colour	Aluminium, Black
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Power source type	ATX
Windows operating systems supported	Windows 10, Windows 11

Expansion slots

PCI Express x1 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3

BIOS

BIOS type	UEFI AMI
BIOS memory size	192 Mbit

Weight & dimensions

Width	244 mm
Depth	244 mm

Packaging content

Cables included	SATA
Bundled software	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
