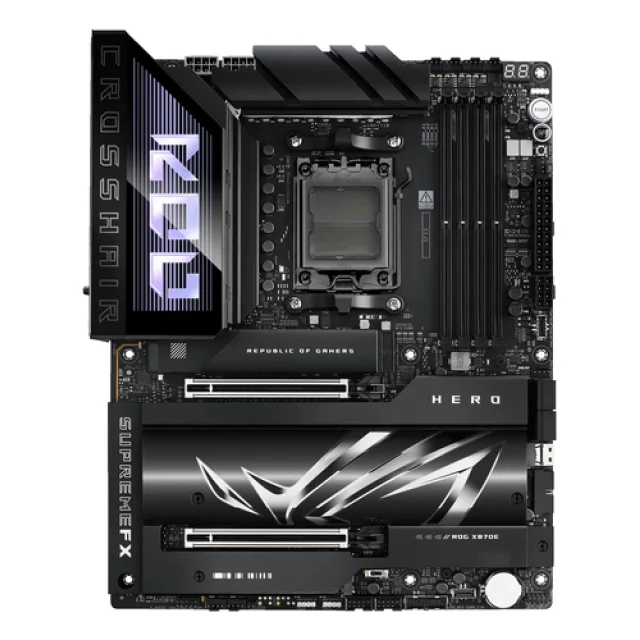

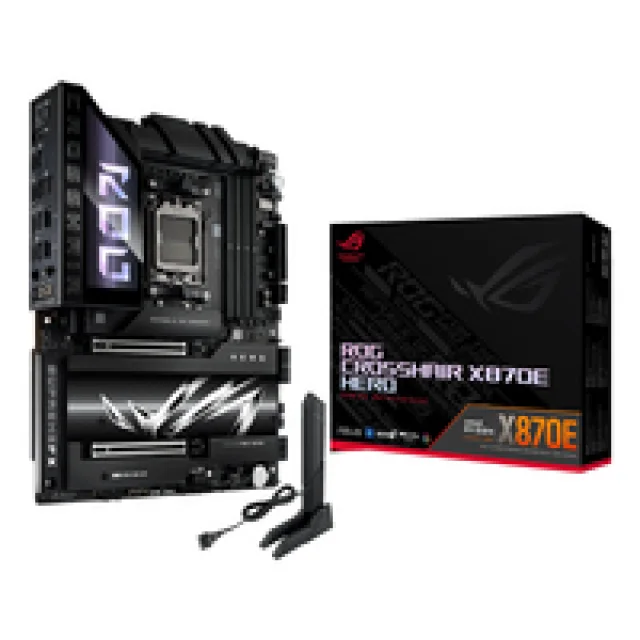

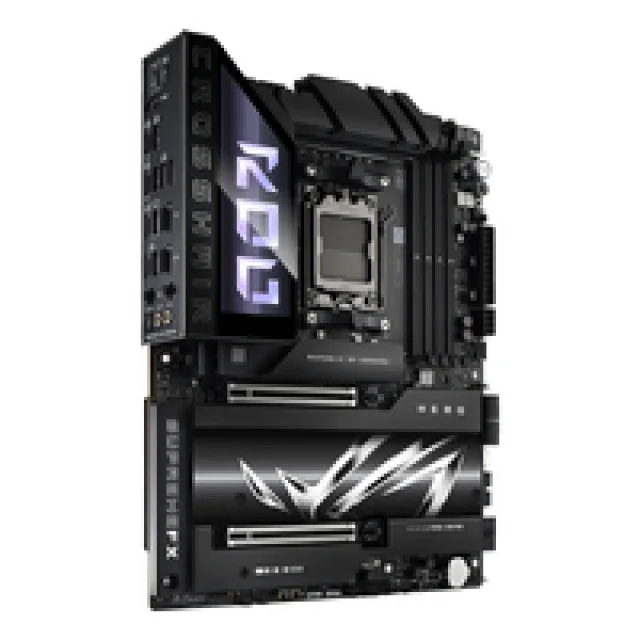

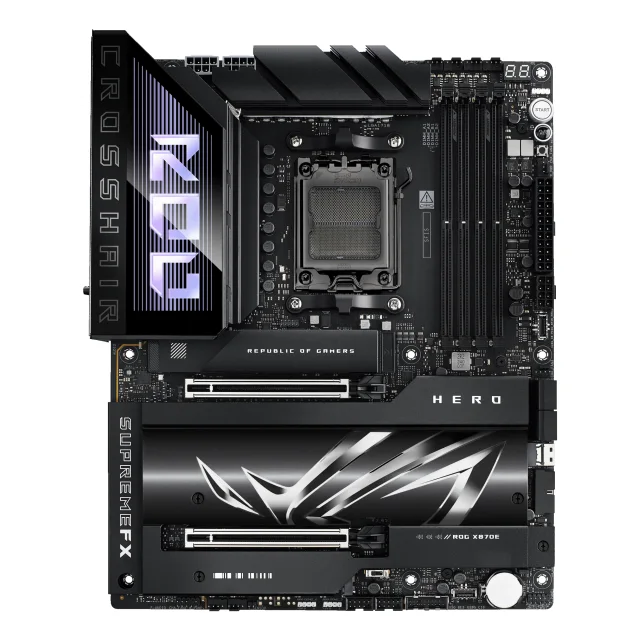

ASUS ROG CROSSHAIR X870E HERO - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - Wi-Fi 7, Bluetooth, 5 Gigabit Ethernet - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB1IE0-M0EAY0

Overview

ASUS ROG CROSSHAIR X870E HERO - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - Wi-Fi 7, Bluetooth, 5 Gigabit Ethernet - onboard graphics (CPU required) - HD Audio (8-channel) is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• ATX
• Socket AM5
• AMD X870E Chipset
• USB4, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711387710302

Specifications

Processor

Processor manufacturer	AMD
Processor socket	Socket AM5
Supported processor sockets	Socket AM5

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Maximum internal memory	192 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III, SlimSAS
Number of HDDs supported	5
Number of storage drives supported	10
RAID support	Yes
RAID levels	0, 1, 10, 5

Graphics

Parallel processing technology support	Not supported

Internal I/O

USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 connectors	2
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	4
EPS power connector (8-pin)	Yes
12V power connector	Yes

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB4 Gen 2x2 ports quantity	2
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
Headphone outputs	1
Microphone in	Yes
S/PDIF out port	Yes
WiFi-AP antenna jack	1

Network

Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4

Features

Motherboard chipset	AMD X870E
Audio chip	Realtek ALC4082
Audio output channels	7.1 channels
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots	4
PCI Express x16 (Gen 5.x) slots	2
Number of M.2 (M) slots	5

BIOS

BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes

Packaging data

Package width	370 mm
Package depth	312 mm
Package height	108 mm
Package weight	4.26 kg

Weight & dimensions

Width	305 mm
Depth	244 mm
Height	50 mm

Packaging content

Cables included	SATA
Drivers included	Yes

Other features

Weight	2.55 kg
