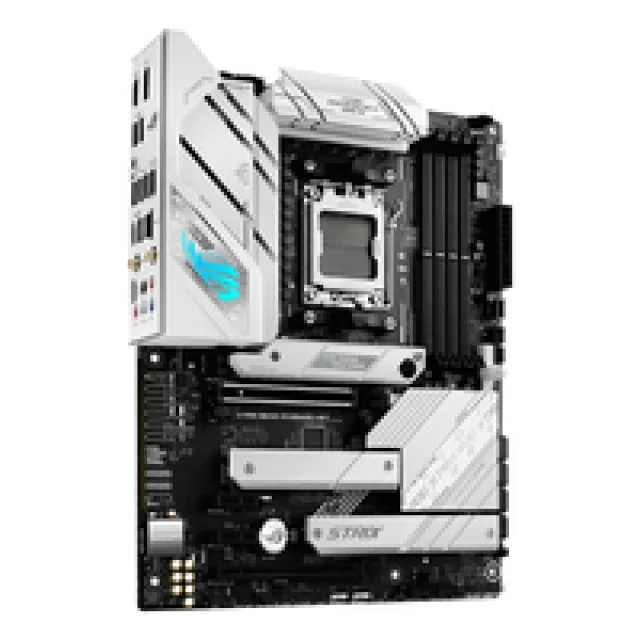

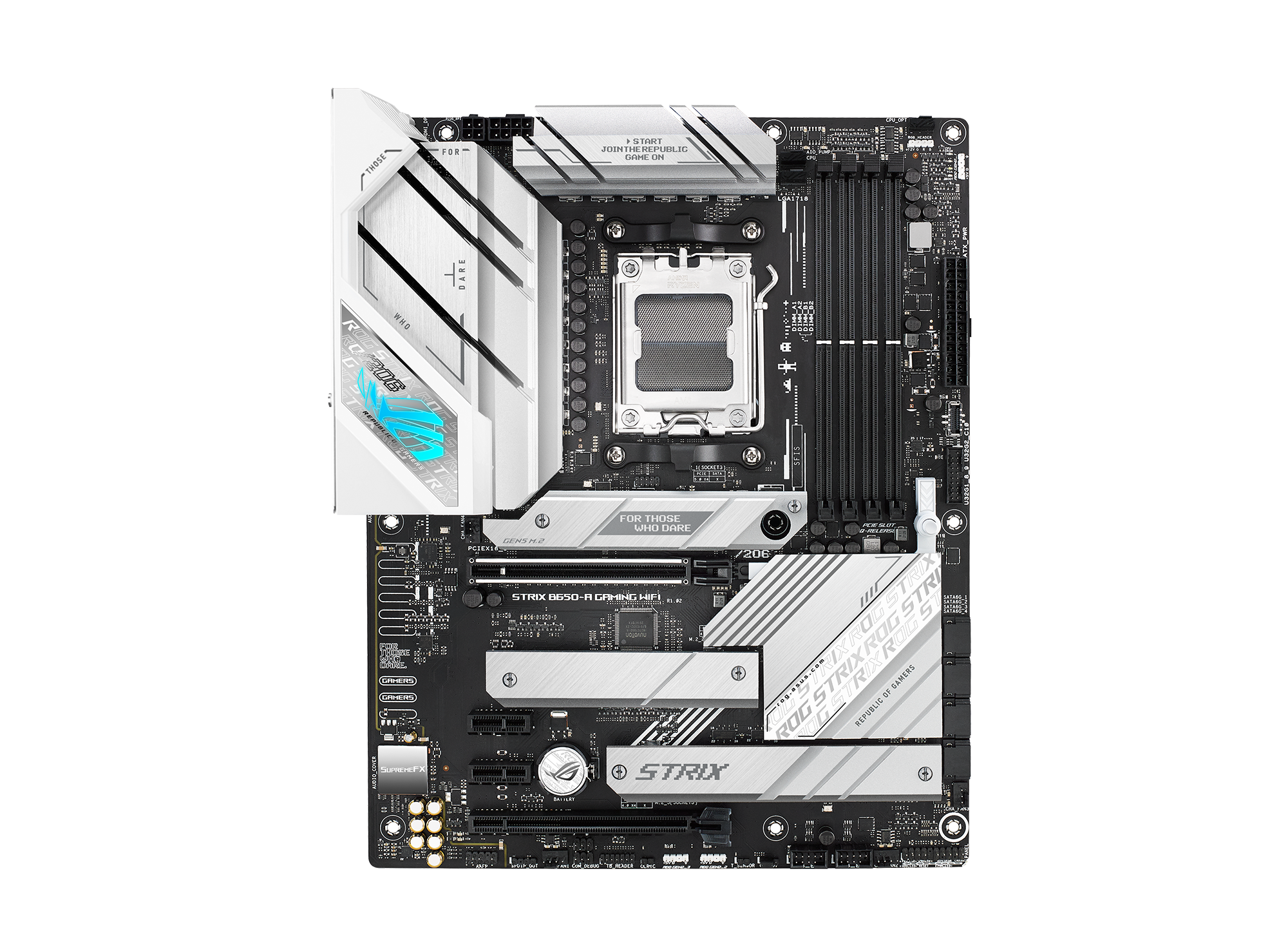

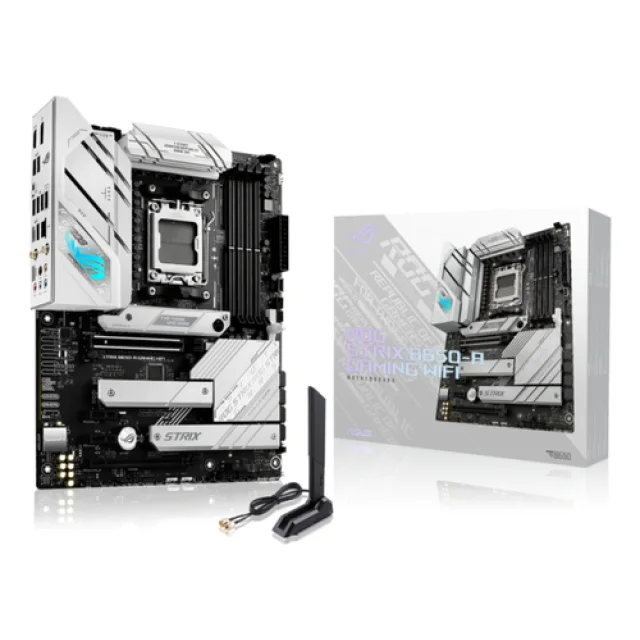

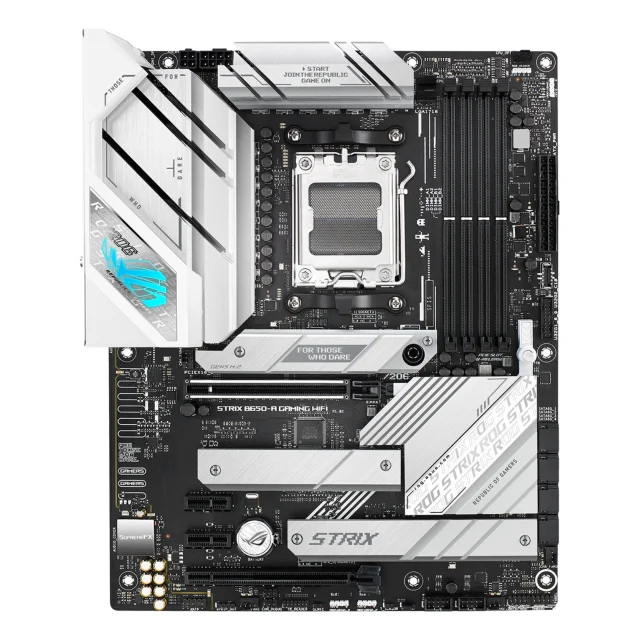

ASUS ROG STRIX B650-A GAMING WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB1BP0-M0EAY0

Overview

ASUS ROG STRIX B650-A GAMING WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• ATX
• Socket AM5
• AMD B650 Chipset
• USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711081917762

Specifications

Processor

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen™ 7
Supported processor sockets	Socket AM5

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID support	Yes
RAID levels	0, 1, 10

Graphics

Parallel processing technology support	Not supported
On-board graphics card	No

Internal I/O

USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	4
Chassis intrusion connector	Yes
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Yes
Number of COM connectors	1
Thunderbolt headers	1
12V power connector	Yes
RGB LED pin header	Yes

Rear panel I/O ports

USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone outputs	3
Line-in	Yes
Microphone in	Yes

Network

Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Intel I225-V
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2

Features

Motherboard chipset	AMD B650
Audio chip	Realtek ALC4080
Audio output channels	7.1 channels
Product colour	Black, Silver
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 11 x64

Expansion slots

PCI Express x1 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3

BIOS

BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes

Packaging data

Package width	280 mm
Package depth	265 mm
Package height	71 mm
Package weight	9 kg

Weight & dimensions

Width	305 mm
Depth	244 mm

Packaging content

Cables included	SATA
