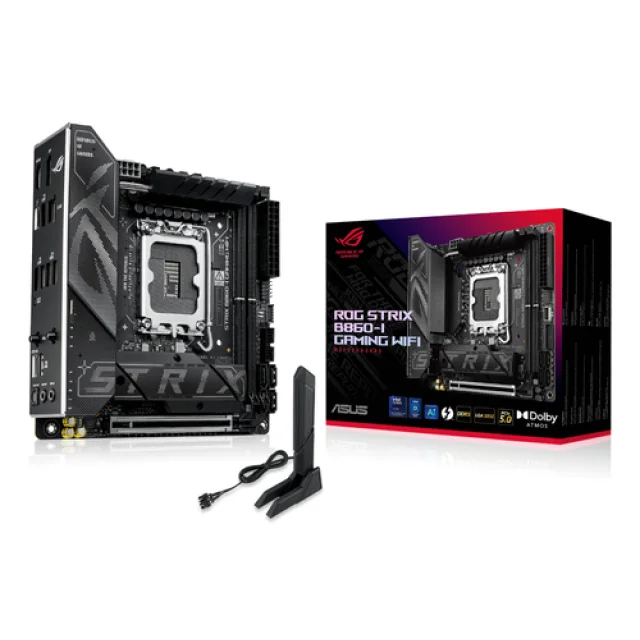

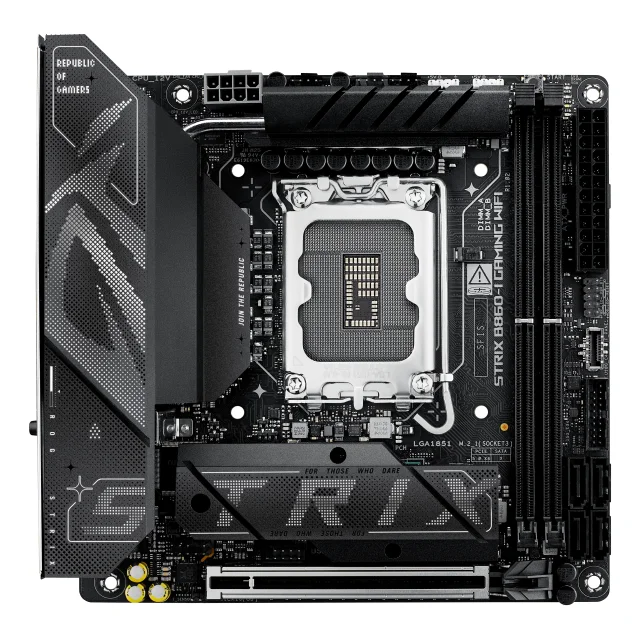

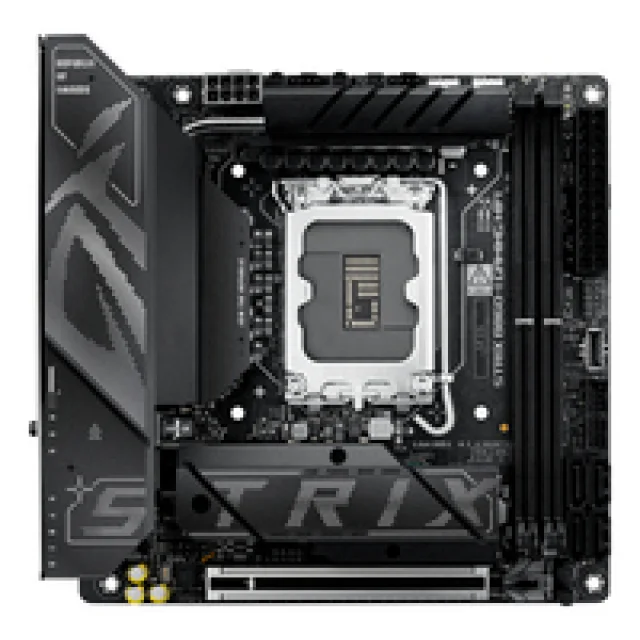

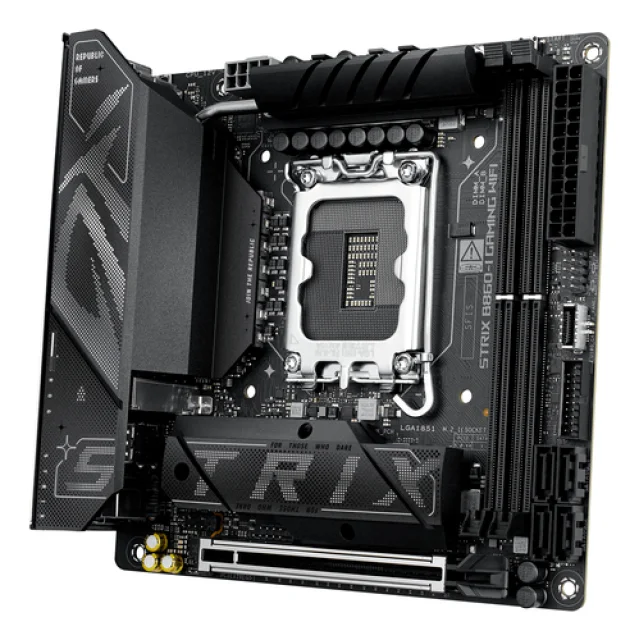

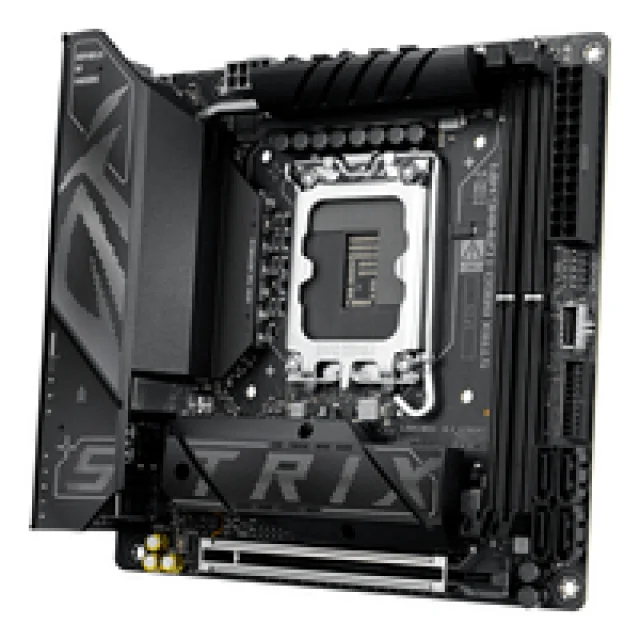

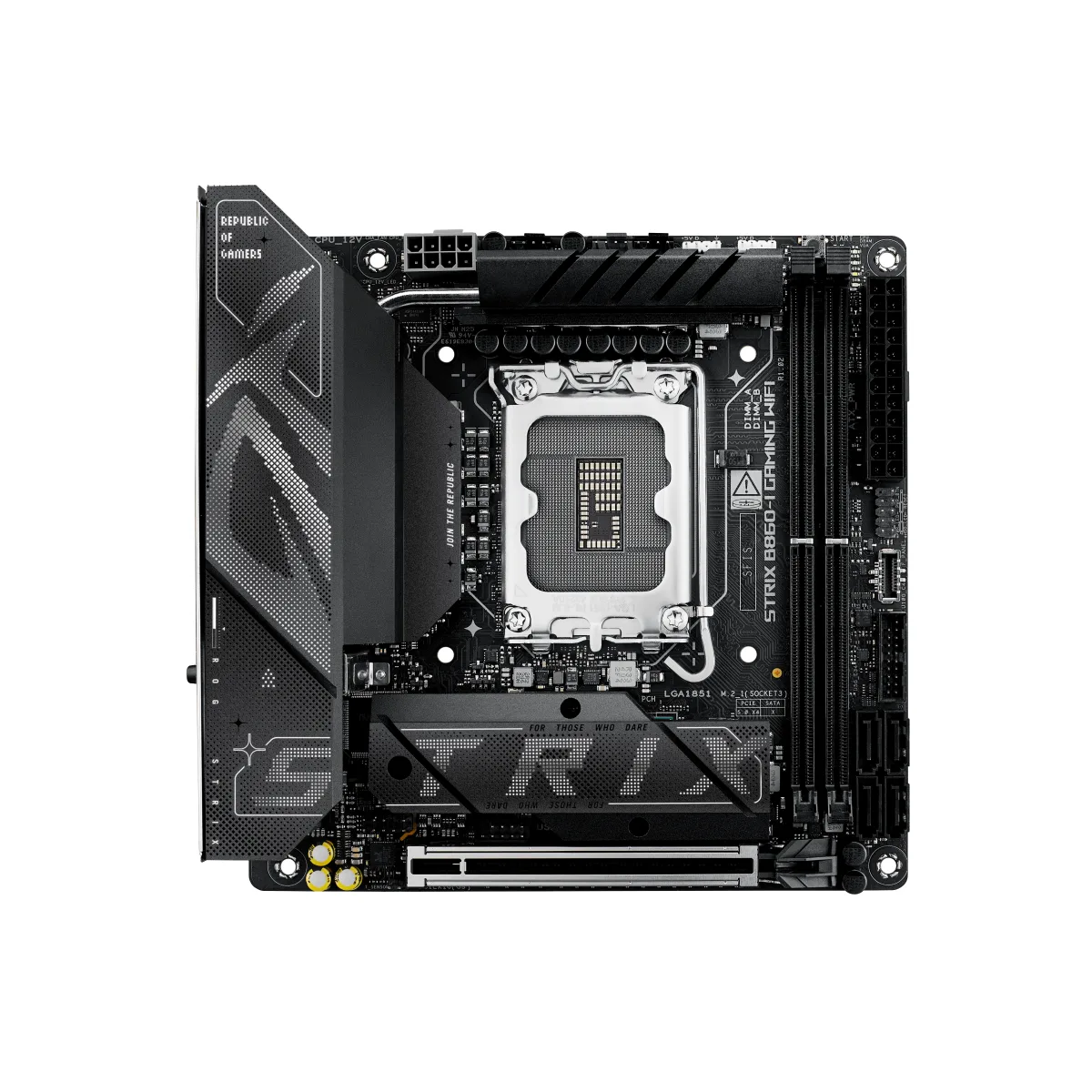

ASUS ROG STRIX B860-I GAMING WIFI - Motherboard - mini ITX - LGA1851 Socket - B860 Chipset - USB4, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB1JB0-M0EAY0

Overview

ASUS ROG STRIX B860-I GAMING WIFI - Motherboard - mini ITX - LGA1851 Socket - B860 Chipset - USB4, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• mini ITX
• LGA1851 Socket
• B860 Chipset
• USB4, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711387815991

Specifications

Processor

Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speed (max)	9066 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	6
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Parallel processing technology support	Not supported
On-board graphics card	No

Internal I/O

USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	1
EPS power connector (8-pin)	Yes
12V power connector	Yes

Rear panel I/O ports

USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Microphone in	Yes
S/PDIF out port	Yes
Thunderbolt ports quantity	1

Network

Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4

Features

Motherboard chipset	Intel B860
Audio chip	Realtek ALC1220P
Audio output channels	7.1 channels
Product colour	Multicolour
Component for	PC
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 11

Expansion slots

PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	2

BIOS

BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes

Packaging data

Package width	228 mm
Package depth	187 mm
Package height	96 mm
Package weight	1.47 kg

Weight & dimensions

Width	170 mm
Depth	170 mm

Other features

Weight	812.6 g
