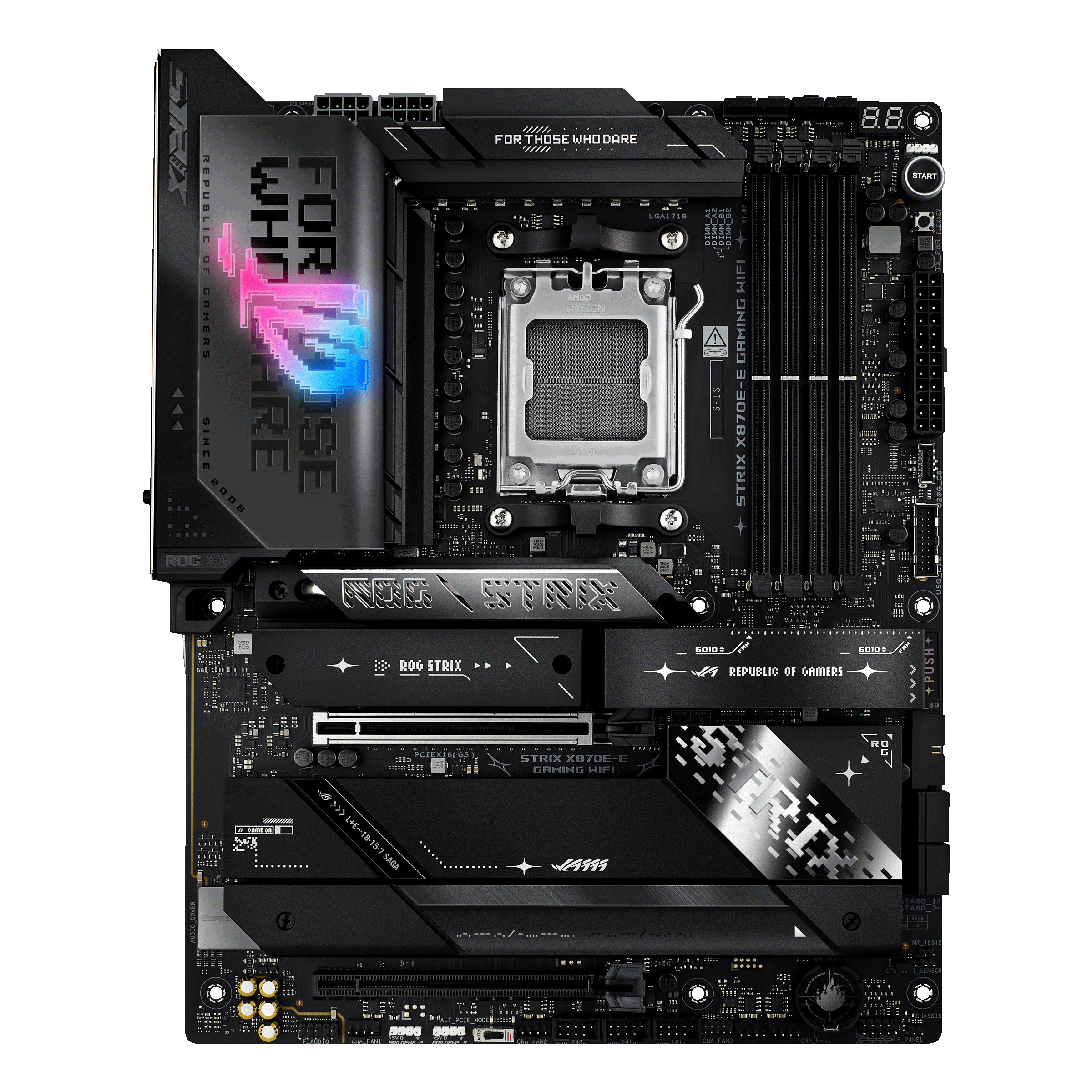

ASUS ROG STRIX X870E-E GAMING WIFI - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB1IB0-M0EAY0

Overview

ASUS ROG STRIX X870E-E GAMING WIFI - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channe is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• ATX
• Socket AM5
• AMD X870E Chipset
• USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711387724163

Specifications

Processor

Processor manufacturer	AMD
Processor socket	Socket AM5

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Maximum internal memory	192 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	9
RAID support	Yes
RAID levels	0, 1, 10, 5

Graphics

Parallel processing technology support	Not supported
On-board graphics card	No

Internal I/O

USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	5
12V power connector	Yes

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	9
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB4 Gen 2x2 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Headphone outputs	1
Microphone in	Yes
S/PDIF out port	Yes
WiFi-AP antenna jack	1

Network

Ethernet LAN	Yes
Ethernet interface type	5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4

Features

Motherboard chipset	AMD X870E
Audio chip	Realtek ALC4080
Audio output channels	7.1 channels
Product colour	Black
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	5

BIOS

BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes

Packaging data

Package width	365 mm
Package depth	281 mm
Package height	87 mm
Package weight	3.02 kg

Weight & dimensions

Width	305 mm
Depth	244 mm
Height	50 mm

Packaging content

Cables included	SATA

Other features

Weight	2.06 kg
