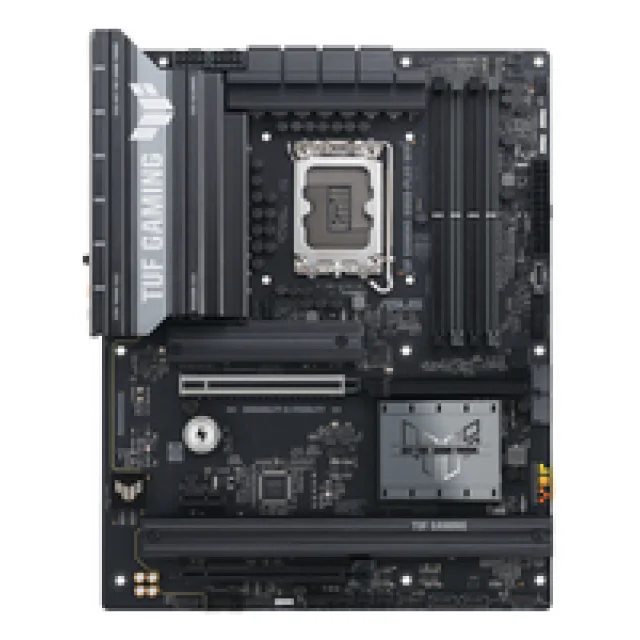

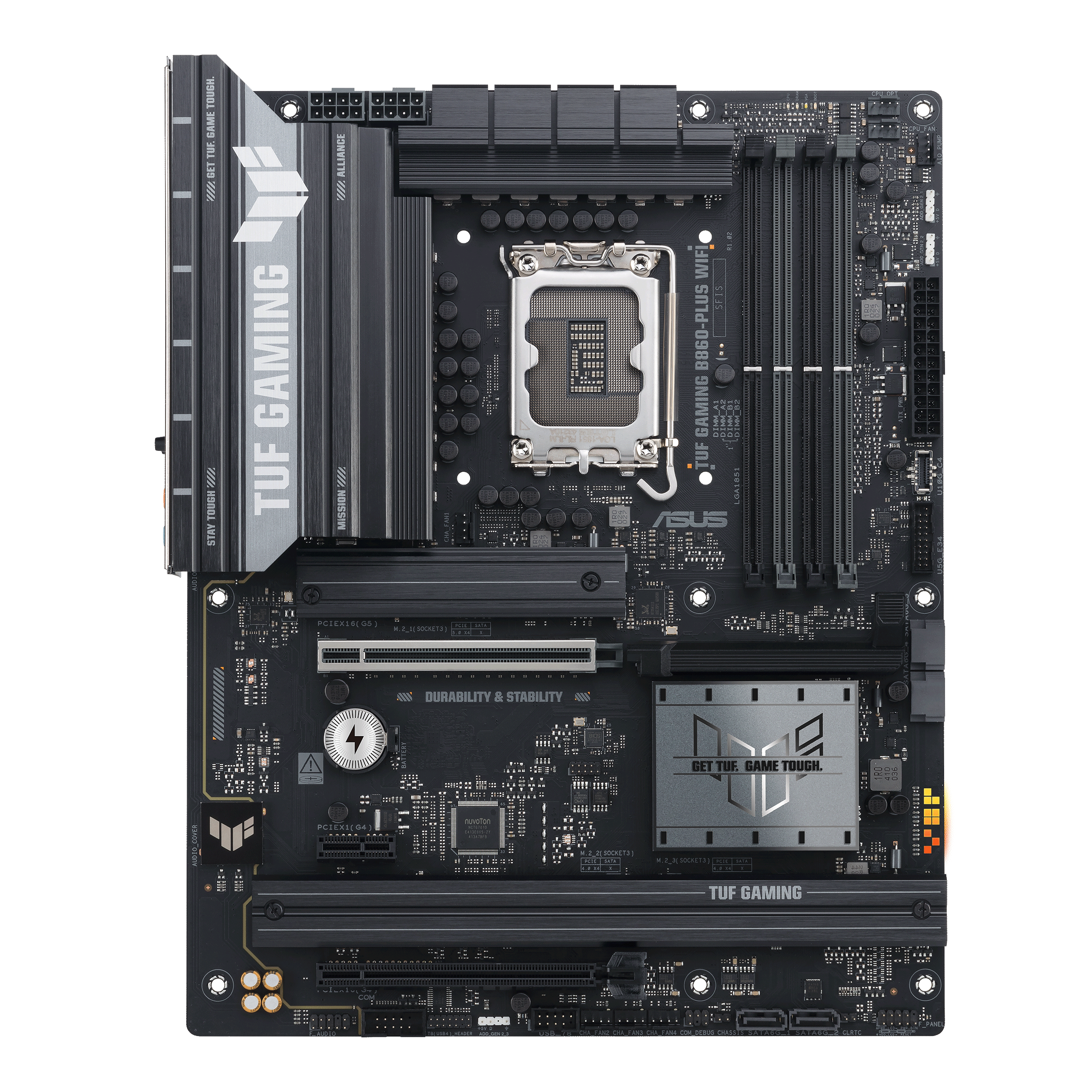

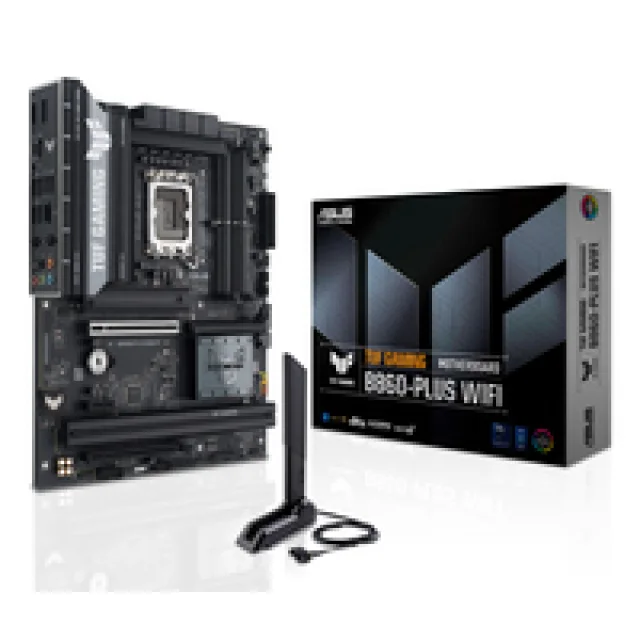

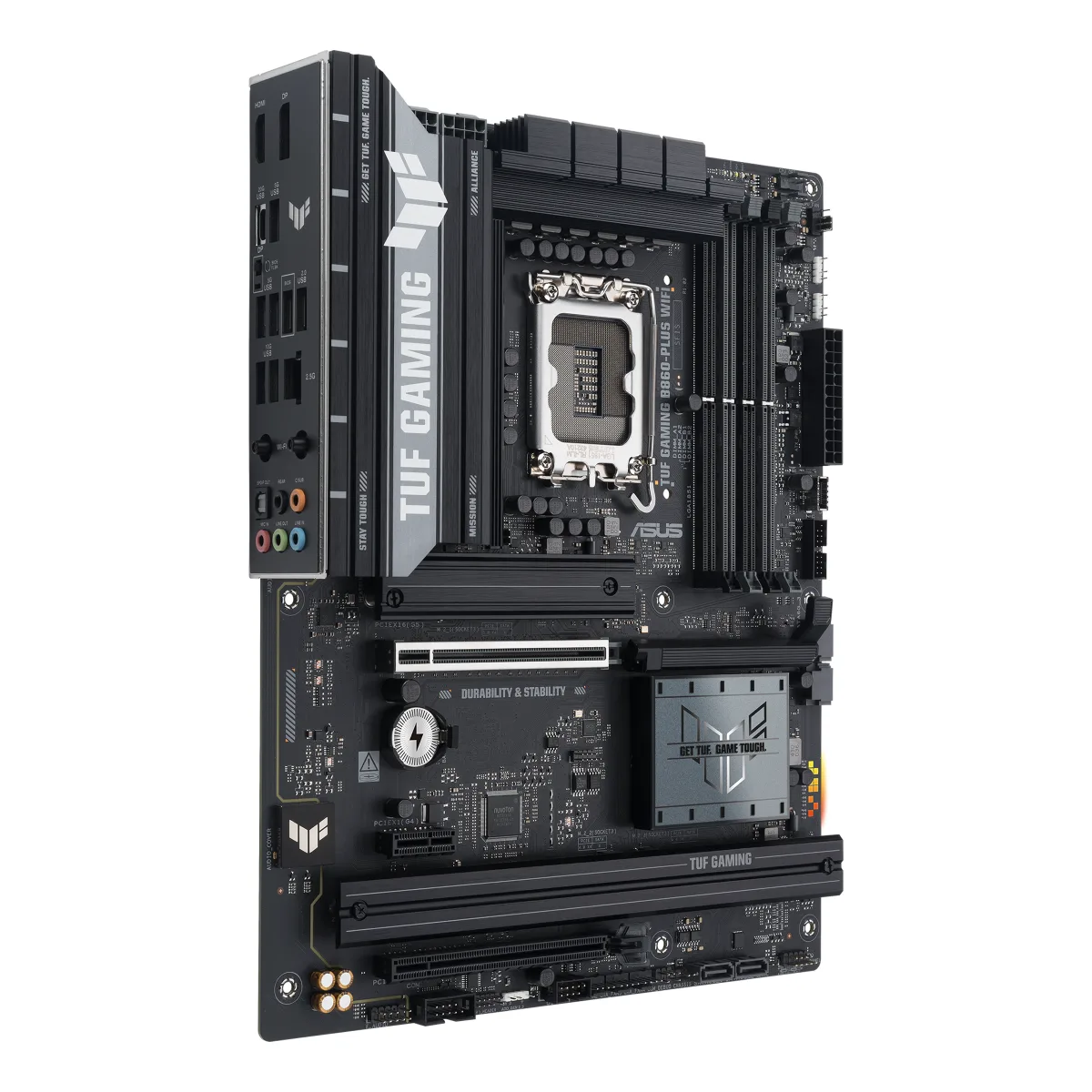

ASUS TUF GAMING B860-PLUS WIFI - Motherboard - ATX - LGA1851 Socket - B860 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 7 - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB1JL0-M0EAY0

Overview

ASUS TUF GAMING B860-PLUS WIFI - Motherboard - ATX - LGA1851 Socket - B860 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 7 - onboard graphics (CPU required) - HD Audio (8-channel) is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• ATX
• LGA1851 Socket
• B860 Chipset
• USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711387815144

Specifications

Processor

Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Maximum internal memory	256 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	7
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Parallel processing technology support	Not supported
On-board graphics card	No

Internal I/O

USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	4
Chassis intrusion connector	Yes
Number of COM connectors	1
Thunderbolt headers	1
12V power connector	Yes

Rear panel I/O ports

USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
S/PDIF out port	Yes
WiFi-AP antenna jack	1

Network

Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4

Features

Motherboard chipset	Intel B860
Audio output channels	7.1 channels
Product colour	Black
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 11

Expansion slots

PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0

BIOS

BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Packaging data

Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.1 kg

Weight & dimensions

Width	305 mm
Depth	244 mm

Packaging content

Cables included	SATA
Antenna included	Yes
Screws included	Yes
