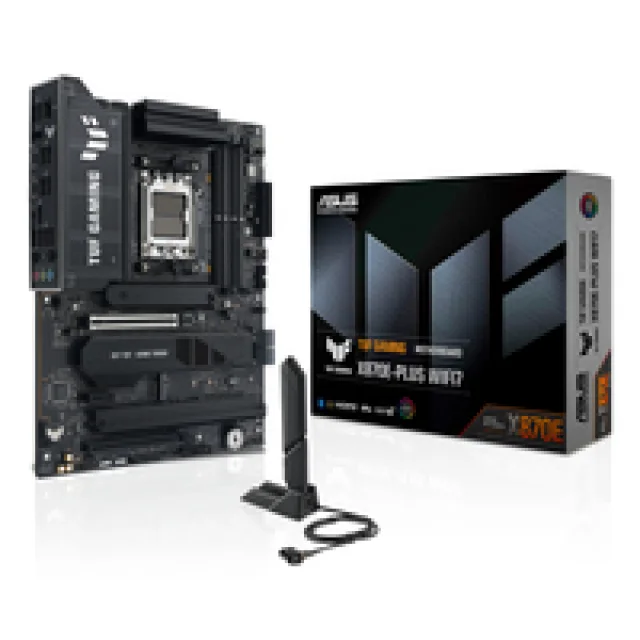

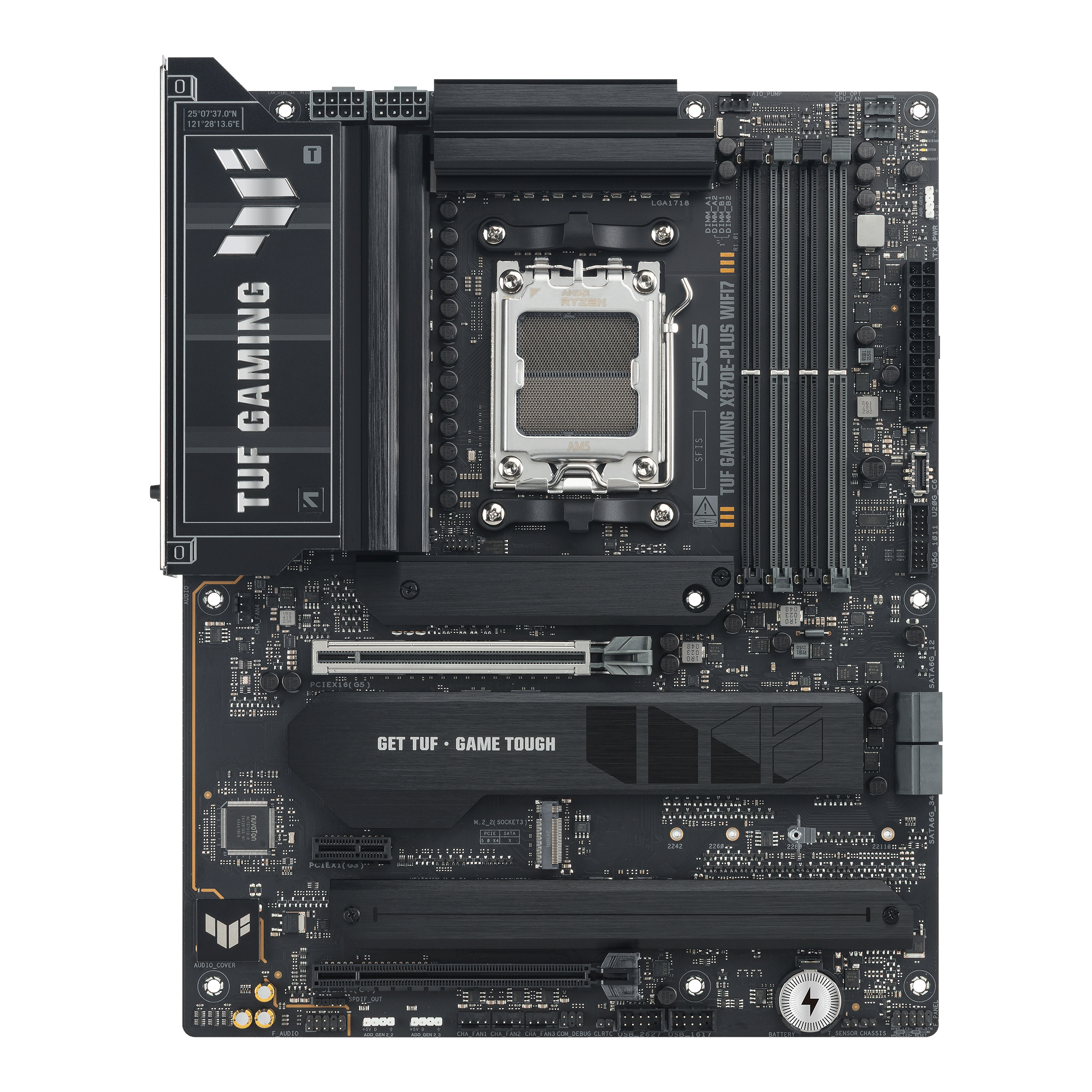

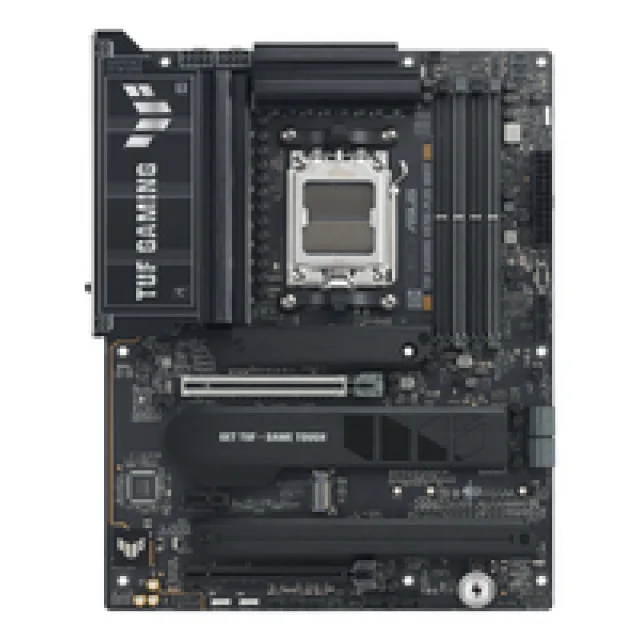

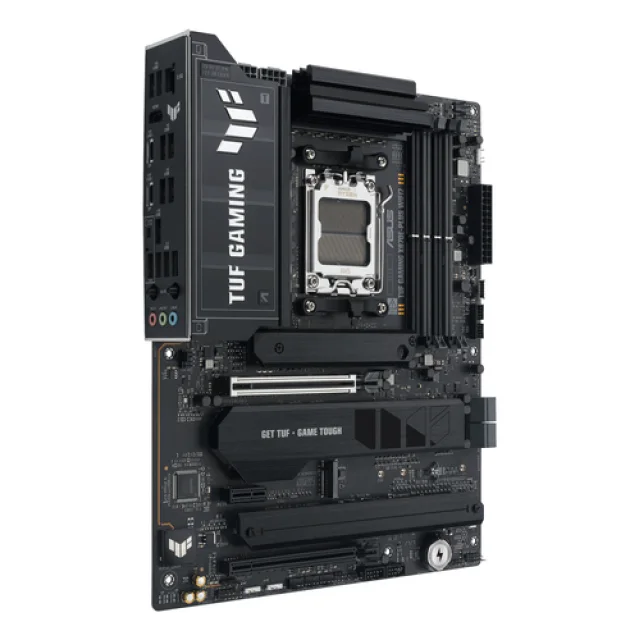

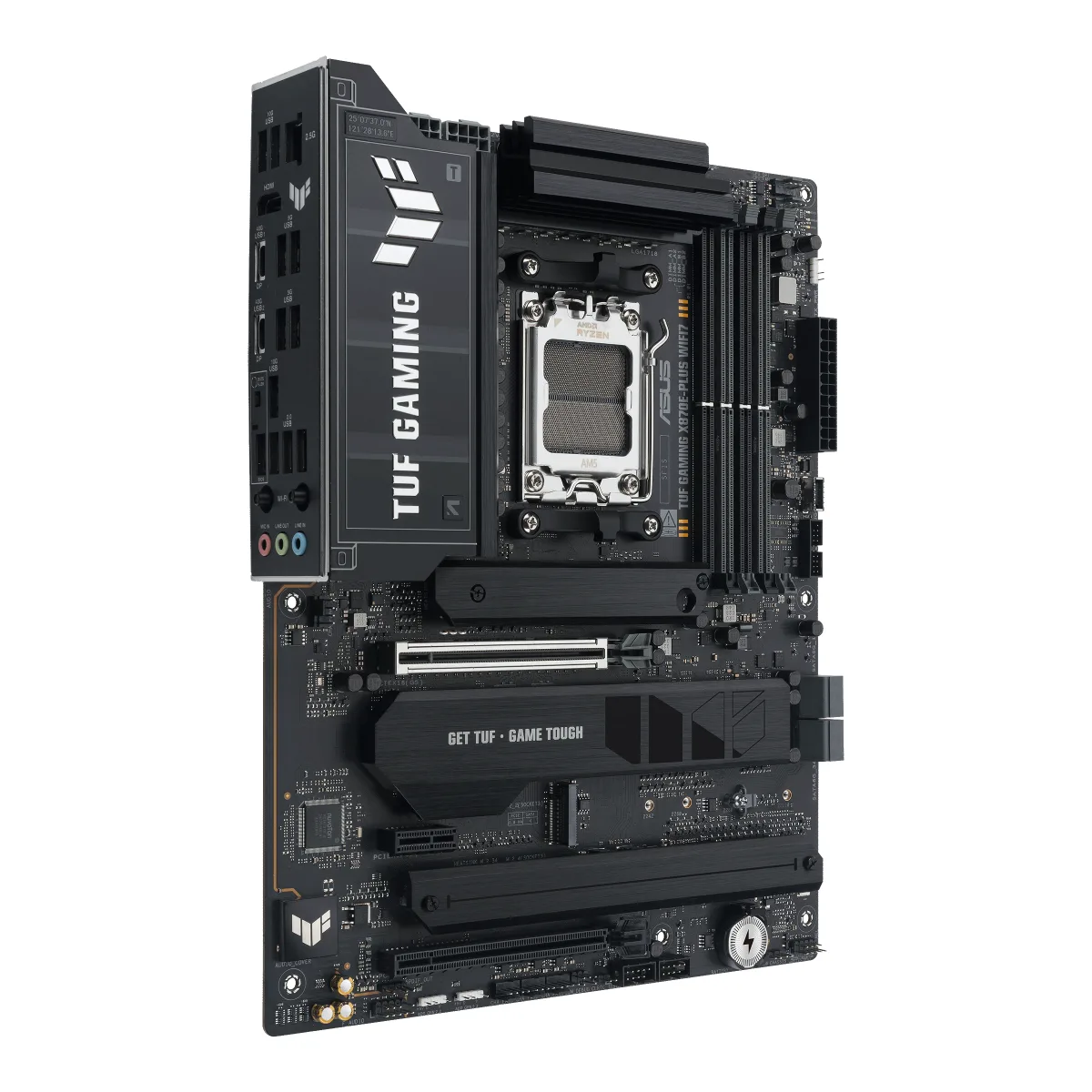

ASUS TUF GAMING X870E-PLUS WIFI7 - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB1M70-M0EAY0

Overview

ASUS TUF GAMING X870E-PLUS WIFI7 - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• ATX
• Socket AM5
• AMD X870E Chipset
• USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711636100342

Specifications

Processor

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speed (max)	8000 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of HDDs supported	4
Number of storage drives supported	8
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Parallel processing technology support	Not supported
On-board graphics card	No

Internal I/O

USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	4
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	2
12V power connector	Yes
Number of water pump connectors	1
Number of temperature sensor headers	1
RGB LED pin header	Yes
Number of RGB LED pin headers	3

Rear panel I/O ports

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB4 Gen 3x2 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
WiFi-AP antenna jack	2

Network

Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4

Features

Motherboard chipset	AMD X870E
Audio output channels	7.1 channels
Product colour	Grey
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Cooling type	Passive
Power source type	ATX
Windows operating systems supported	Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	4
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0

BIOS

BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Packaging data

Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.08 kg

Weight & dimensions

Width	305 mm
Depth	244 mm
Height	48 mm

Packaging content

Cables included	SATA
Antenna included	Yes
Screws included	Yes

Other features

Weight	1.56 kg
Quick installation guide	Yes
