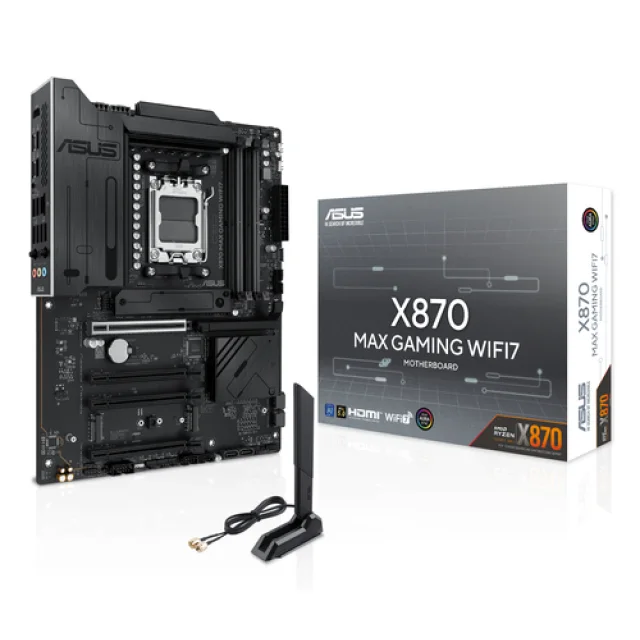

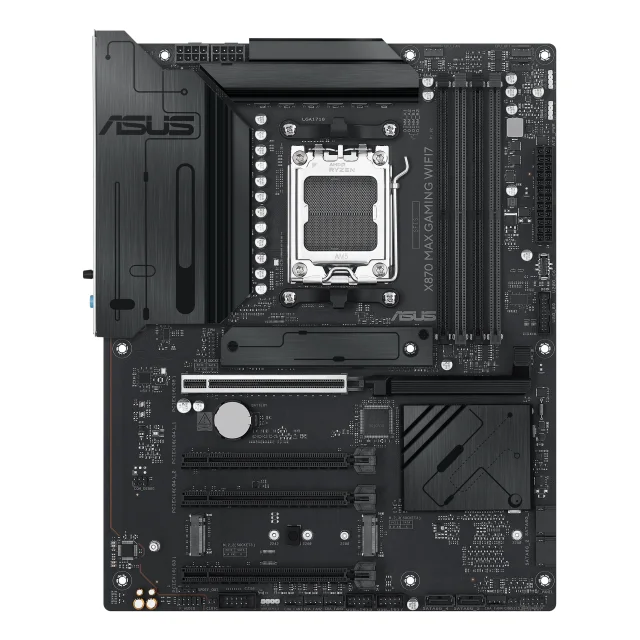

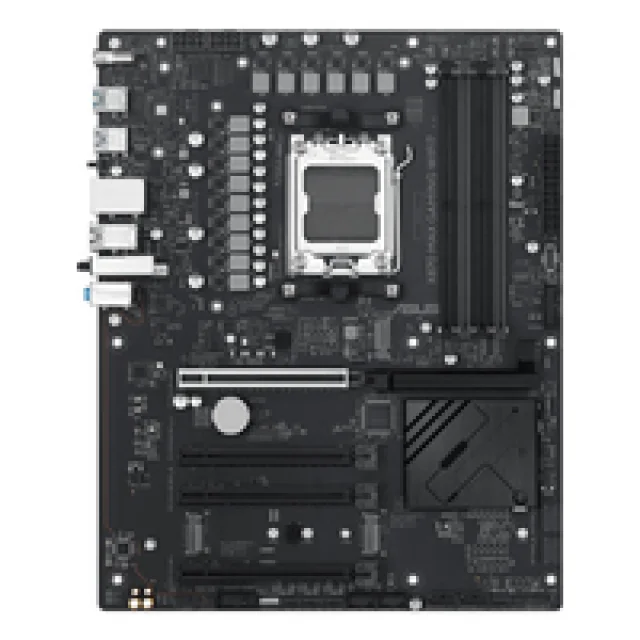

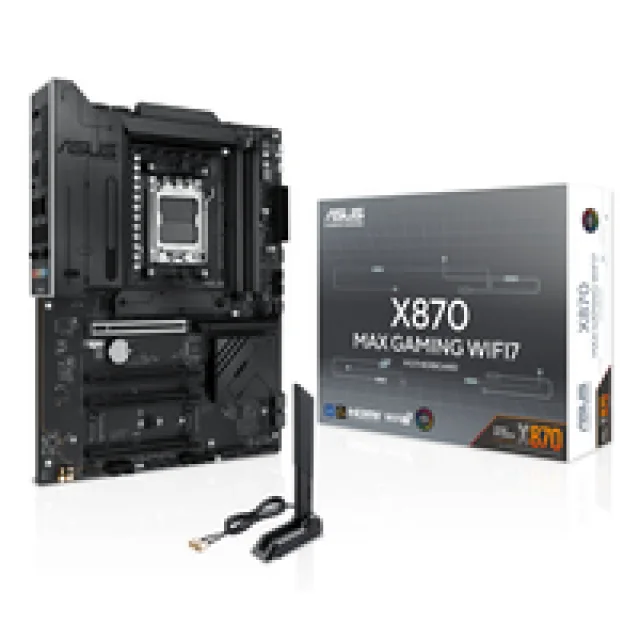

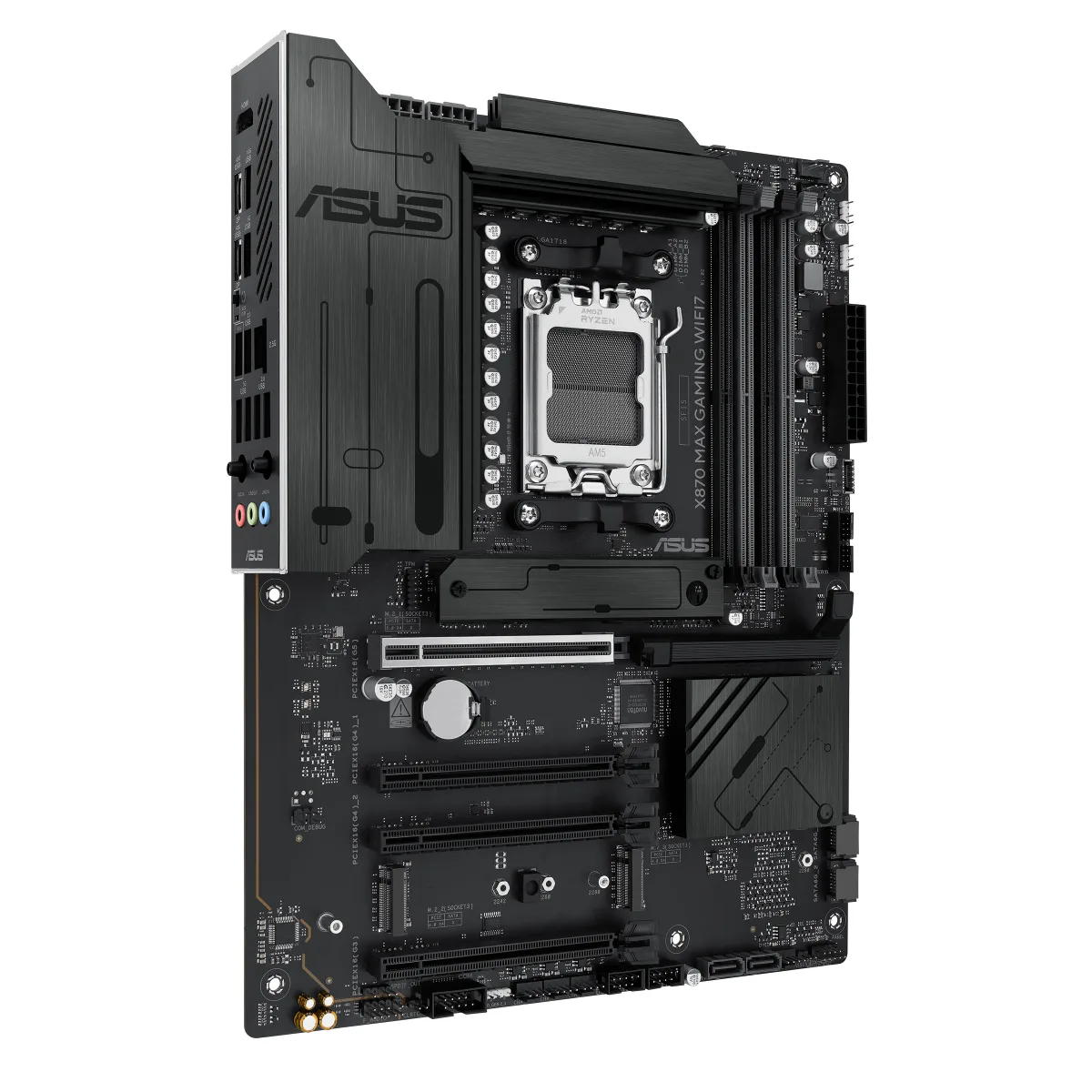

ASUS X870 MAX GAMING WIFI7 - Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Description

Manufacturer Code: 90MB1LY0-M0EAY0

Overview

ASUS X870 MAX GAMING WIFI7 - Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) is available through DCS Components. It sits within the Motherboards category.

Key product details

• Motherboard
• ATX
• Socket AM5
• AMD X870 Chipset
• USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4711636007849

Specifications

Processor

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speed (max)	8000 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	7
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Parallel processing technology support	Not supported

Internal I/O

USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	4
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of COM connectors	1
TPM connector	Yes
12V power connector	Yes

Rear panel I/O ports

USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB4 Gen 3x2 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Line-in	Yes
Microphone in	Yes
WiFi-AP antenna jack	2
USB connector type	USB Type-A, USB Type-C

Network

Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4

Features

Motherboard chipset	AMD X870
Audio output channels	7.1 channels
Product colour	Multicolour
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 11

Expansion slots

PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
Number of M.2 (M) slots	3

BIOS

BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Packaging data

Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	1.95 kg

Weight & dimensions

Width	305 mm
Depth	244 mm
Height	48 mm

Packaging content

Antenna included	Yes

Other features

Weight	1.36 kg
