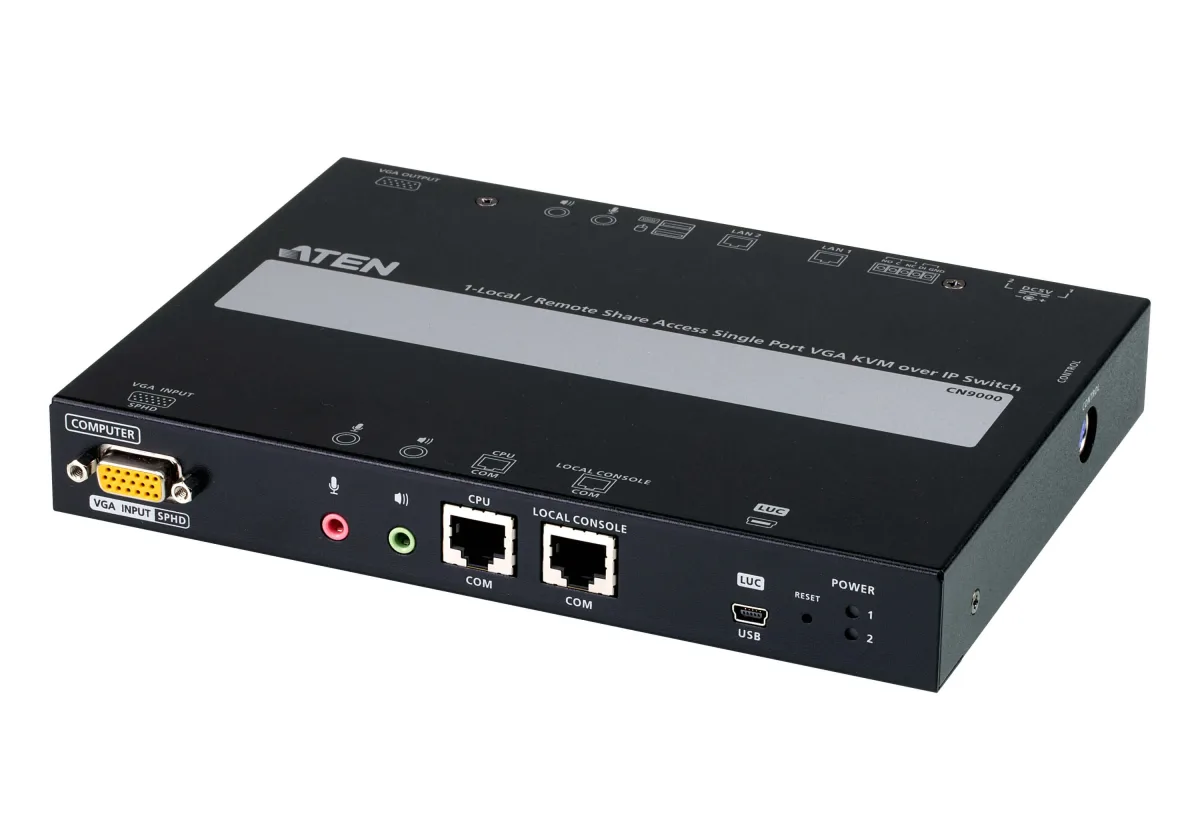

ATEN CN9000 - Remote control device - 1GbE

Description

The CN9000 VGA KVM over IP Switch allows remote access and control of the video, audio and virtual media of a PC or workstation, featuring VGA high video resolution up to 1920 x 1200 @ 60Hz at both the local and remote consoles. Equipped with USB and PS/2 (keyboard and mouse) support, CN9000 is compatible not only with modern-day workstations, but also legacy systems and older generation servers.
1x CN9000 VGA KVM over IP Switch
1x KVM cable (VGA, PS/2, USB)
1x USB cable (USB Type-A to Mini-B)
1x power adapter
1x control terminal block
1x mounting kit
1x foot pad set
1x user instructions

Specifications

Ports & interfaces

Number of computers controlled	1
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
VGA (D-Sub) ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity	2
USB connector type	USB Type-A
Serial port type	RS-232
Serial ports quantity	1
Audio connections	Yes
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2

Performance

HD type	Full HD
Maximum resolution	1920 x 1200 pixels

Design

Rack mounting	No
Product colour	Black
Housing material	Metal
LED indicators	Yes

Power

Power source	AC
Input voltage	5 V
Power consumption (typical)	7.46 W

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%

Weight & dimensions

Width	200 mm
Depth	154.1 mm
Height	28.5 mm
Weight	1.26 kg

Packaging data

Package width	98 mm
Package depth	325 mm
Package height	210 mm
Package weight	1.68 kg

Logistics data

Master (outer) case net weight	6.3 kg
Harmonized System (HS) code	85176200
Master (outer) case width	342 mm
Master (outer) case length	512 mm
Master (outer) case height	232 mm
Master (outer) case gross weight	9.03 kg
Products per master (outer) case	5 pc(s)
