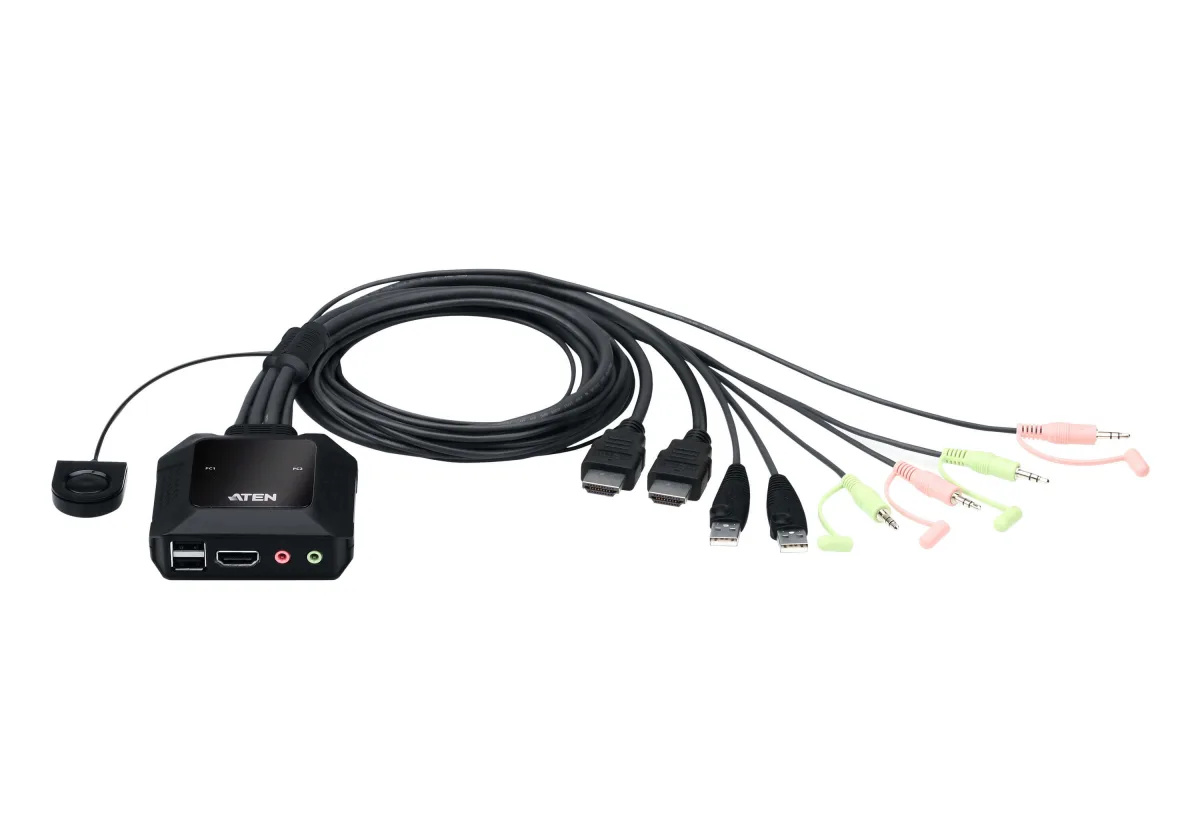

ATEN CS22H - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop - for VanCryst VS182B, VS184B

Description

Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.

Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.

Space Efficient Desktop Setup
The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.

Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.

Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

Specifications

Ports & interfaces

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	3
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity	2
Console HDMI ports quantity	1
USB connector type	USB Type-A
Audio connections	Yes
Headphone outputs	3
Number of microphone inputs	3

Performance

HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Video bandwidth	60 Hz
HDCP	Yes
Hot-Plug support	Yes
Plug and Play	Yes
HDCP version	2.2

Design

Rack mounting	No
Product colour	Black
Housing material	Plastic
Wired remote switch	Yes
Cable length	1.2 m
Remote switch cable length	1.8 m
LED indicators	Yes

Display

Built-in display	No

Power

Power source	USB
Input voltage	5 V
Power consumption (typical)	3.47 W

System requirements

Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%

Weight & dimensions

Width	84.2 mm
Depth	83.4 mm
Height	30.4 mm
Weight	340 g

Packaging data

Package width	55 mm
Package depth	155 mm
Package height	223 mm
Package weight	420 g

Packaging content

Quick installation guide	Yes
Manual	Yes

Logistics data

Master (outer) case net weight	6.8 kg
Harmonized System (HS) code	85176200
Master (outer) case width	328 mm
Master (outer) case length	389 mm
Master (outer) case height	330 mm
Master (outer) case gross weight	9.3 kg
Products per master (outer) case	20 pc(s)
