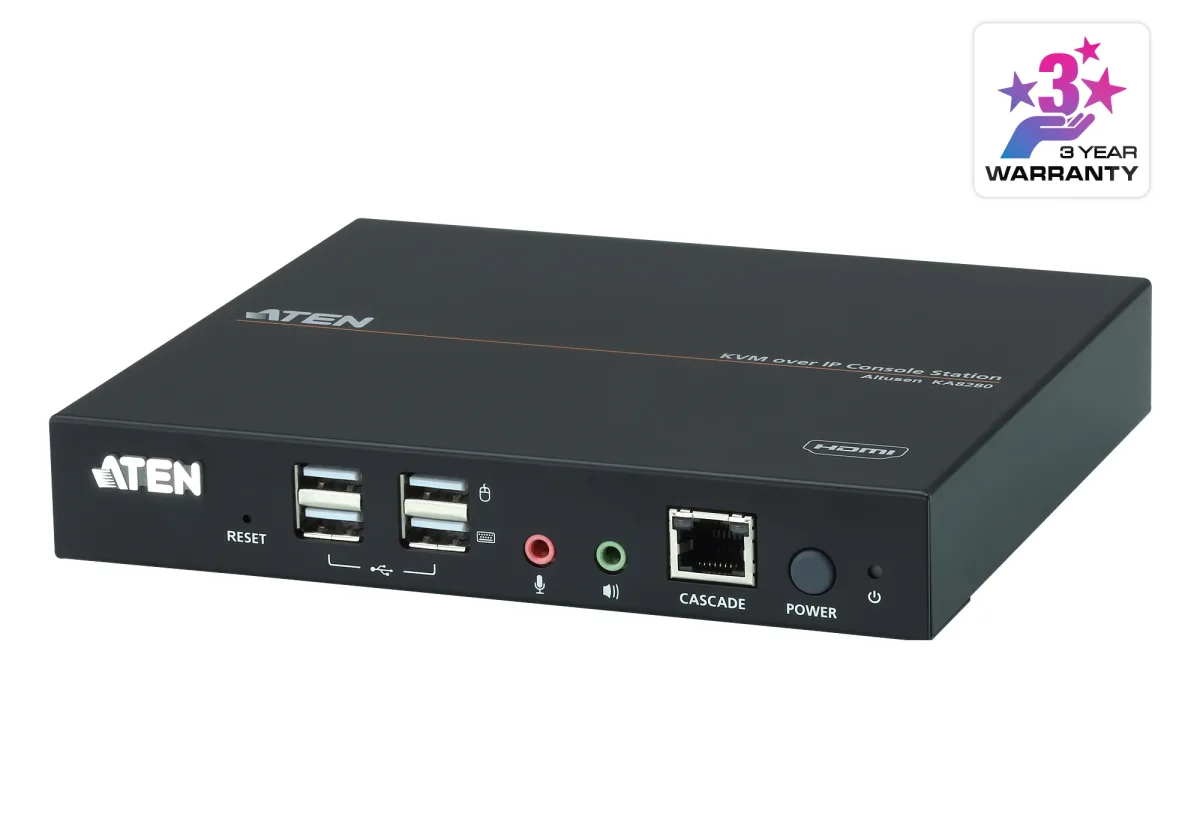

ATEN HDMI KVM over IP Console Station KA8280 - KVM / audio extender - USB - 0U

Description

The KVM over IP Console Station KA8280 is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN's KVM over IP switches* with impenetrable security against virus threats. It also supports various data encryption methods, ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required, ideal for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC).
1x KA8280 HDMI KVM over IP Console Station
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x Mounting Kit
4x Foot Pad
1x User Instructions

Specifications

Ports & interfaces

Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	1
USB connector type	USB Type-A
Serial port type	DE-9 (DB-9)
Serial ports quantity	1
Audio connections	Yes
Headphone outputs	1
Number of microphone inputs	1
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1

Performance

HD type	Full HD+
Maximum resolution	1920 x 1200 pixels
Video bandwidth	60 Hz

Design

Rack mounting	Yes
Product colour	Black
Housing material	Metal
LED indicators	Power
Push button	Yes

Display

Built-in display	No

Power

Power source	DC
Input voltage	5 V
Power consumption (typical)	4.66 W

Sustainability

Compliance certificates	RoHS

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions

Width	155.4 mm
Depth	174.2 mm
Height	28.8 mm
Weight	1.28 kg

Packaging data

Package width	98 mm
Package depth	325 mm
Package height	210 mm
Package weight	1.45 kg

Packaging content

Cables included	AC
Manual	Yes
AC adapter included	Yes

Logistics data

Master (outer) case net weight	6.4 kg
Harmonized System (HS) code	85176200
Master (outer) case width	342 mm
Master (outer) case length	512 mm
Master (outer) case height	232 mm
Master (outer) case gross weight	8.11 kg
Products per master (outer) case	5 pc(s)
