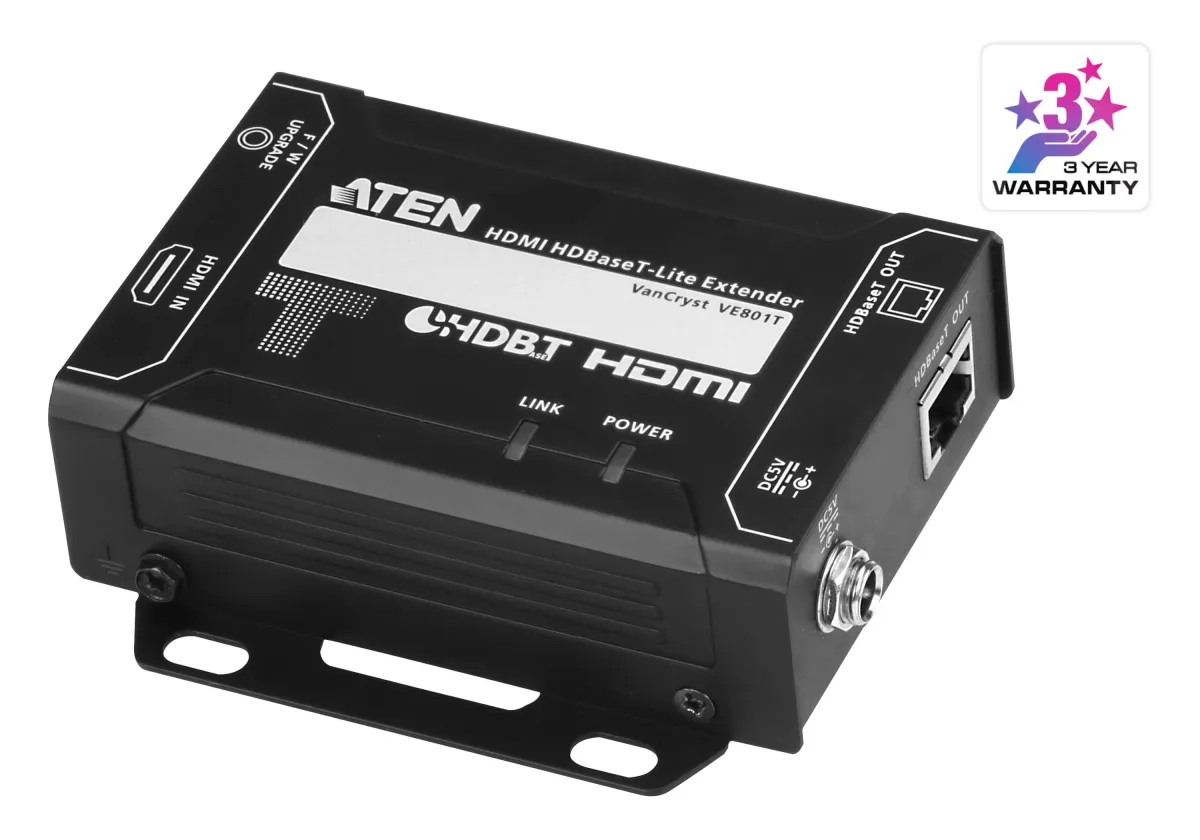

ATEN VanCryst VE801 HDMI HDBaseT-Lite Extender, Transmitter - Video/audio extender - transmitter - HDBaseT - up to 70 m

Description

The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.

* Compatible HDBaseT Receiver Units: VE801R

Specifications

Features

Type	AV transmitter
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	70 m
LED indicators	Yes
Supported video modes	1080p
Bandwidth	340 MHz
HDCP	Yes
Material	Metal
Product colour	Black

Ports & interfaces

Ethernet LAN	Yes
RJ-45 output ports	1
HDMI in	1
DC-in jack	Yes

Power

Power consumption (typical)	1.85 W

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions

Dimensions (WxDxH)	87 x 103 x 30 mm
Weight	240 g

Packaging content

AC adapter included	Yes

Technical details

Compliance certificates	RoHS
